Installation
46 SO-SVN048A-EN

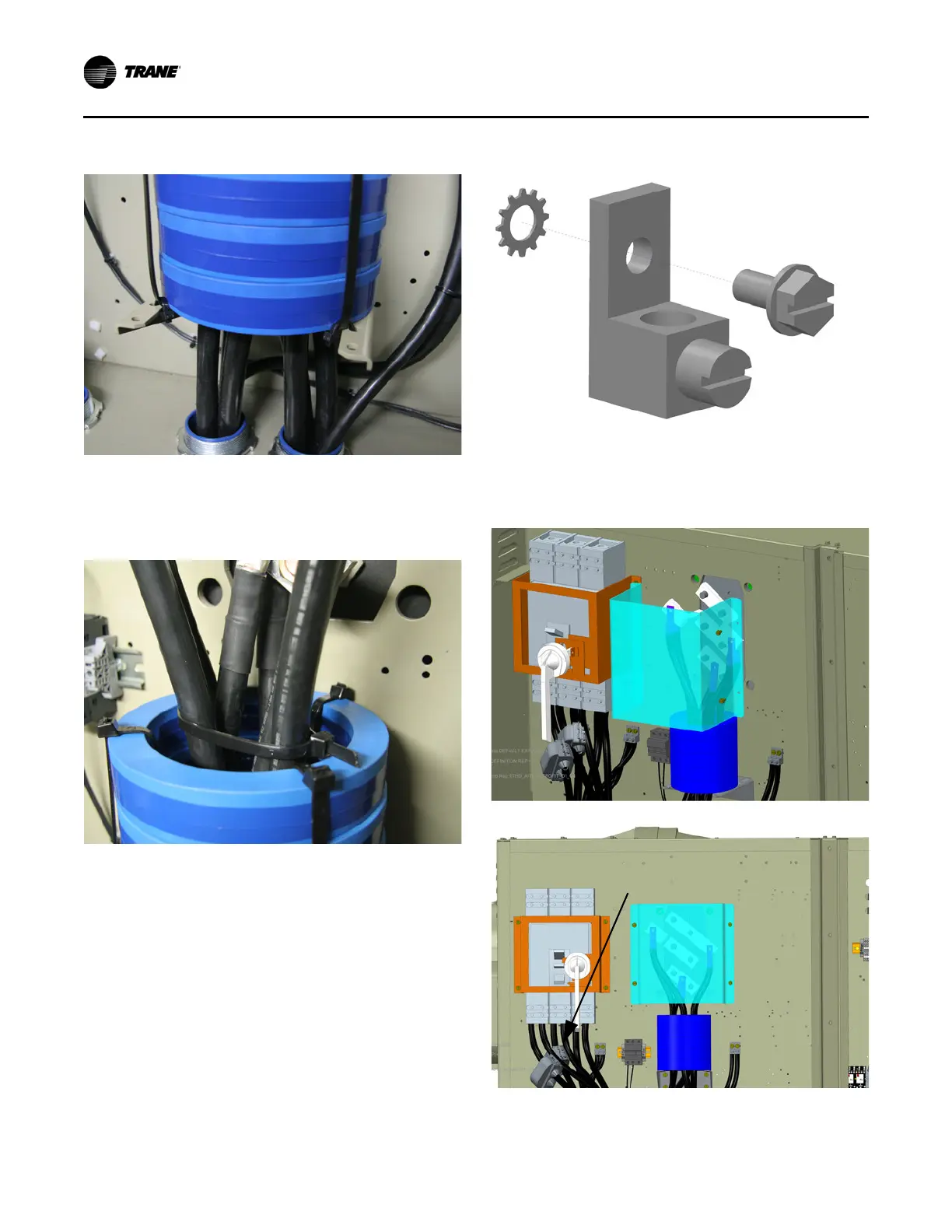

7. Use provided tie wraps to secure the cores to the core
bracket and use tie wraps to keep the power wire
positioned in the center of the cores.
8. Install ground terminals in the control panel and connect all
ground wires. Drill as needed and use tapping screws and
star washers provided. See Table 67, p. 47 for location.
9. Align cover over motor terminals and drill four holes for
mounting. Install cover over motor terminals using four
screws (provided); refer to Figure 66.
Figure 63.
Figure 64.
Figure 65.
Figure 66. Cover installation
Wire tap supplied
on all options
