Gas Piping
Important: When converting the gas piping from the factory default, the plug must be removed from the new gas piping location and swapped
with the grommet from the default location. The upflow furnace default is left side gas piping. The downflow furnace default is right
side gas piping.

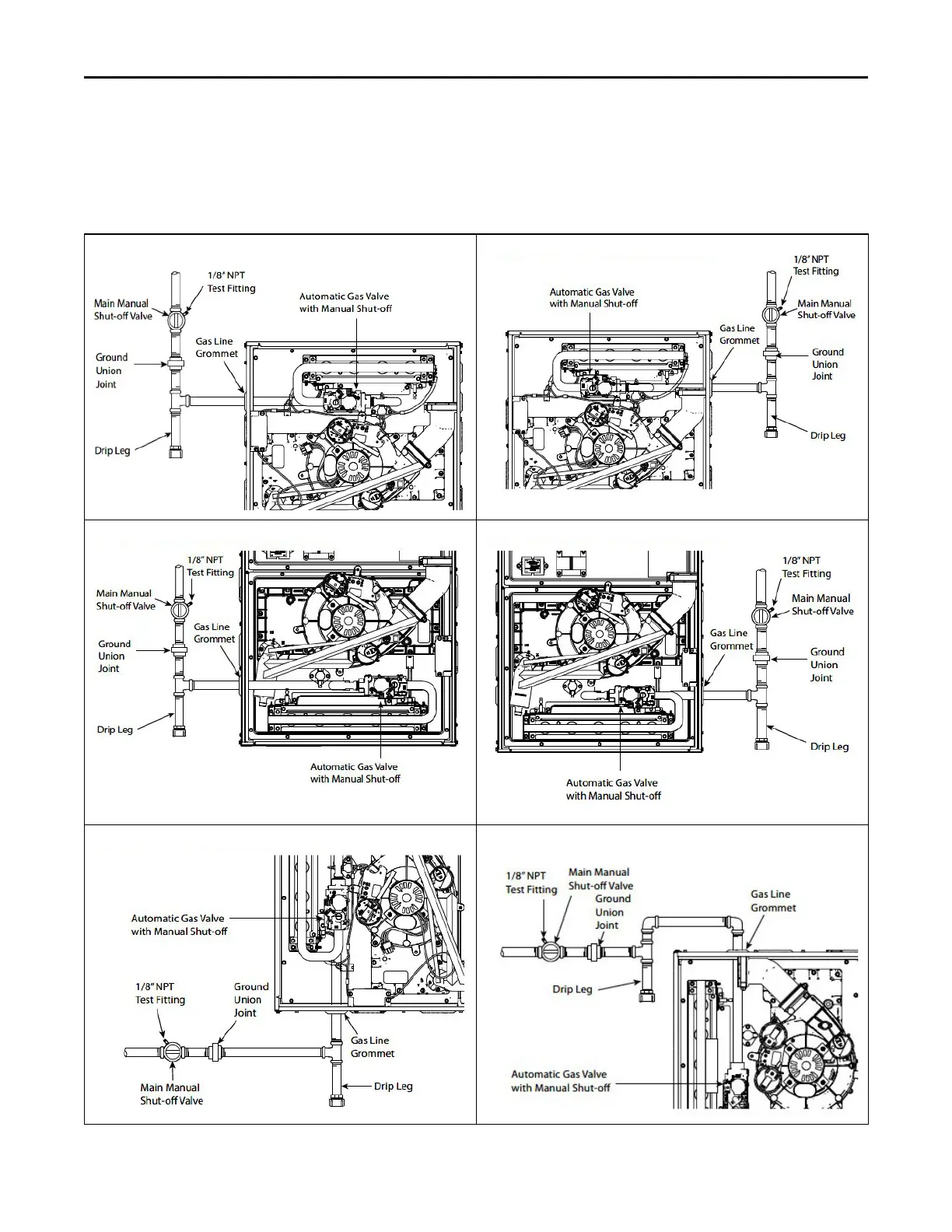

Upflow furnace with gas piping on left side
Upflow furnace with gas piping on right side
Downflow furnace with gas piping on left side Downflow furnace with gas piping on right side
Horizontal left furnace with gas piping out left side Horizontal left furnace with gas piping out right side
