Trane S9X1 - Belly Band Location

98
S9XB-SVX001-1D-EN

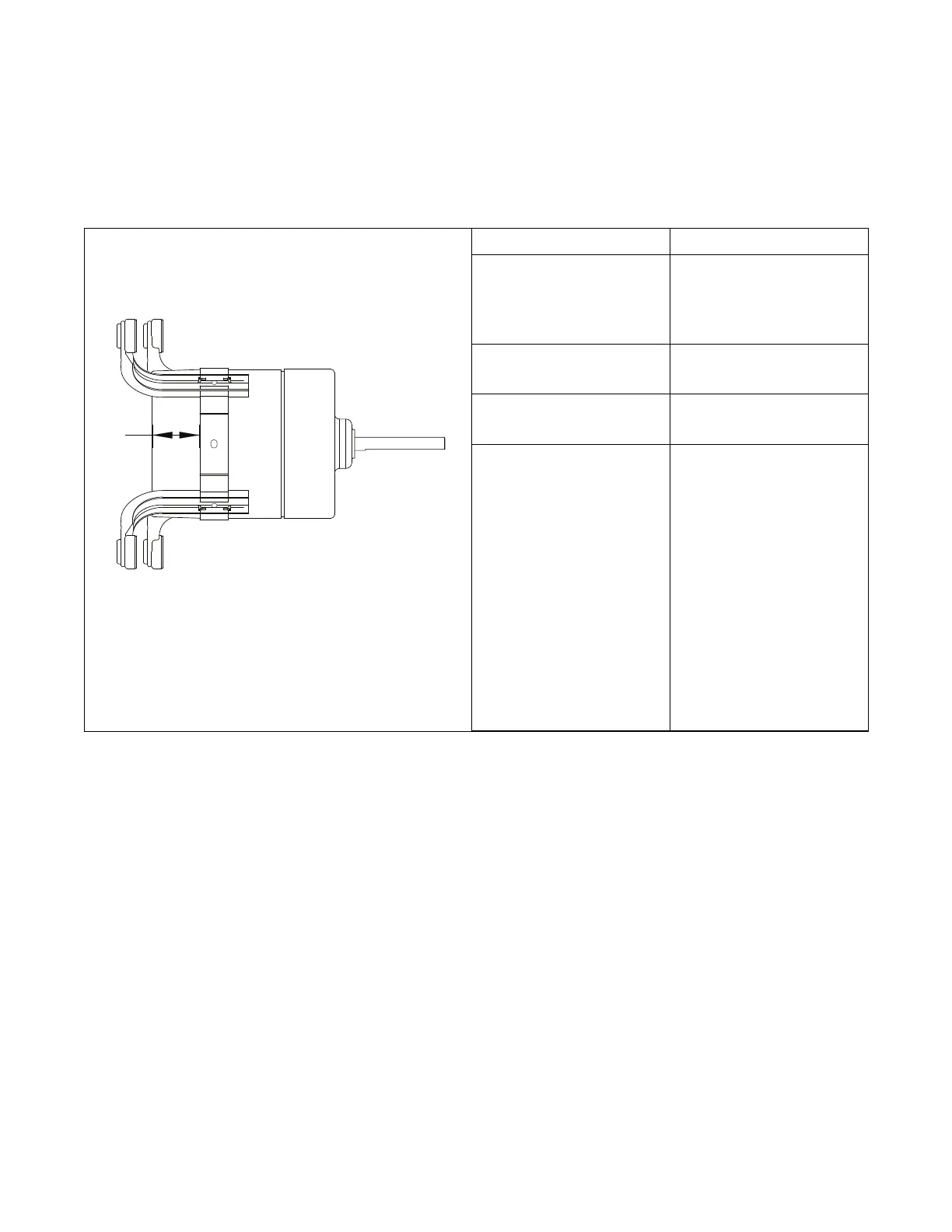

Belly Band Location
Distance from belly band to the back side off motor for
minimum vibration.
A
Blower housings and wheel removed
from view for clarity.
Furnace Model Number
Dimension “A” (inches)
S9B1B060U4PSAB
S9X1B060U4PSBB
S9B1B080U4PSAB
S9X1B080U4PSBB
S9X2B060U4PSBB
S9X2B080U4PSBB
2.65
S9B1B080D4PSAB
S9X1B080D4PSBB
S9X2B080D4PSBB
3.54
S9B1C100U5PSAB
S9X1C100U5PSBB
S9X2C100U5PSBB
3.81
S9B1B040U3PSAB
S9B1B040D3PSAB
S9X1B040U3PSBB
S9X1B040D3PSBB
S9X2B040U3PSBB
S9X2B040D3PSBB
S9B1B060D3PSAB
S9X1B060D3PSBB
S9X2B060D3PSBB
S9B1C080U5PSAB
S9B1C100D5PSAB
S9B1D120U5PSAB
S9B1D120D5PSAB
S9X1C080U5PSBB
S9X1C100D5PSBB
S9X1D120U5PSBB
S9X1D120D5PSBB
S9X2C080U5PSBB
S9X2C100D5PSBB
S9X2D120U5PSBB
S9X2D120D5PSBB
3.91
