Trane S9X1 - Page 66

66
S9XB-SVX001-1D-EN
COIL PRIMARY
DRAIN
FIELD FABRICATED
TRAP
PRIMARY DRAIN VENT
STACK MUST TERMINATE
BELOW THE BOTTOM OF
THE CONDENSATE TRAP
CONDENSATE
GROMMET
LEFT SIDE
DRAIN
RIGHT SIDE
DRAIN
CONDENSATE
GROMMET
FIELD FABRICATED
TRAP
COIL PRIMARY
DRAIN
RIGHT SIDE
DRAIN
IF THE FURNACE IS
INSTALLED OVER A FINISHED
CEILING, OVERFLOW FROM
THE PRIMARY DRAIN VENT
STACK MUST FLOW INTO AN
AUXILIARY DRAIN PAN TO
PREVENT DAMAGE TO THE
FINISHED CEILING BELOW
CONDENSATE PIPED TO OPEN
VENTED DRAIN OR CONDENSATE PUMP
COIL PRIMARY
DRAIN
CONDENSATE
GROMMET
PRIMARY DRAIN VENT
STACK MUST TERMINATE
BELOW THE BOTTOM OF
THE CONDENSATE TRAP
OR
COIL PRIMARY
DRAIN
LEFT SIDE
DRAIN
PRIMARY DRAIN VENT
STACK MUST TERMINATE
BELOW THE BOTTOM OF THE
CONDENSATE TRAP
IF THE FURNACE IS
INSTALLED OVER A FINISHED
CEILING, OVERFLOW FROM
THE PRIMARY DRAIN VENT
STACK MUST FLOW INTO AN
AUXILIARY DRAIN PAN TO
PREVENT DAMAGE TO THE
FINISHED CEILING BELOW
CONDENSATE PUMP
CONDENSATE PIPED
TO OPEN VENTED DRAIN
CONDENSATE PIPES MUST
NOT BE BELOW WATER SURFACE
FIELD FABRICATED
TRAP
CONDENSATE
GROMMET

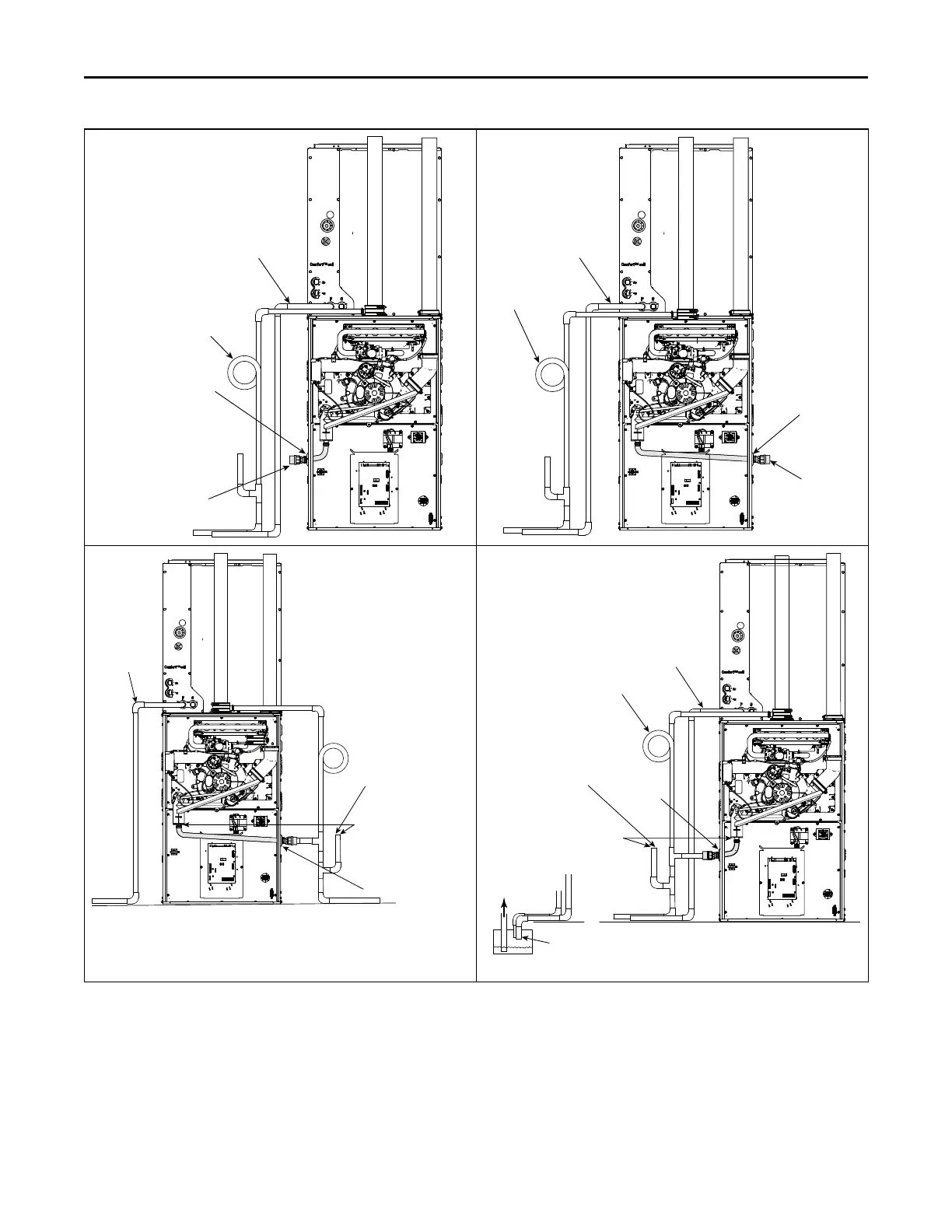

CCoonnddeennssaattee DDrraaiinn IInnssttrruuccttiioonnss
