S9XB-SVX001-1D-EN
83
NNoottee:: When removing condensate hoses from the
condensate trap, hold the trap with your hand to
prevent the trap from breaking. Removing the
trap before the hoses is also an option.

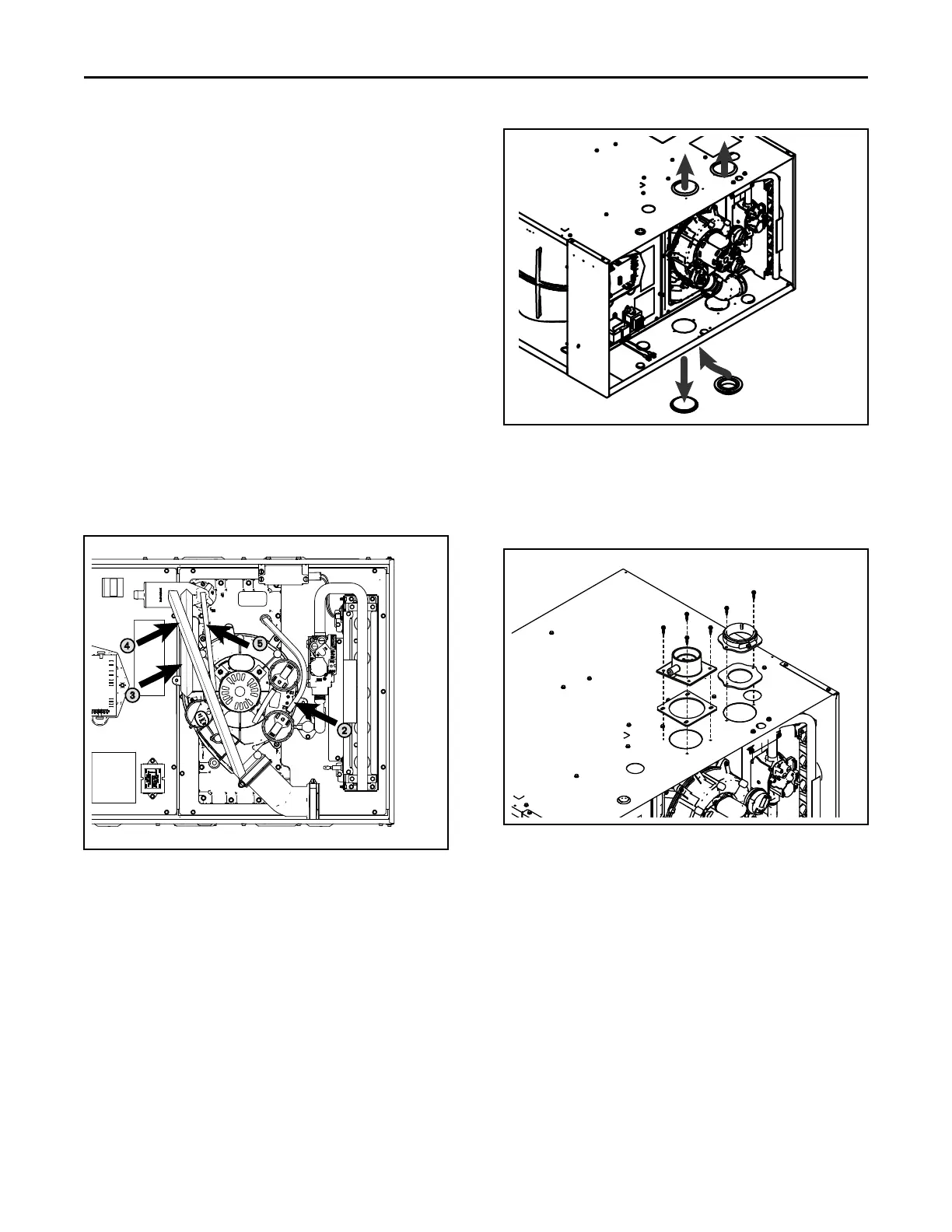

2. Remove tubing from PS2 to cold header.
3. Remove drain tubing from bottom of inducer
housing.
4. Remove rain gutter tubing from inducer outlet.
5. Remove tubing from condensate pressure switch.
6. Remove the screws that hold the condensate trap
bracket. The condensate trap should not be
removed from the condensate trap bracket.
Remove assembly and retain for later installation.
7. Remove the adapter located inside the condensate
trap connection on the cold header and retain for
later installation.
NNoottee:: The plastic adapter with O-rings located inside
the cold header that is held in place by the
condensate trap bracket. Do not lose this adapter.
This adapter needs to be in place when the
condensate trap bracket is reattached.
8. Remove 3” plug on right side of unit. To be used for
condensate trap.
9. Install condensate trap grommet.
10. Remove two 3” plugs on left side of cabinet.
11. Reuse the two 3” plugs to seal the two 3” default
openings on the top of the cabinet.
12. Attach the vent outlet gasket to the vent outlet.
13. Install vent outlet to top of cabinet using 2 screws
supplied in the doc pack.
14. Install vent inlet gasket and vent inlet using 4
screws supplied in the doc pack.
15. Remove three inducer screws.
16. Loosen hose clamp and remove 45 degree adapter.
If the rubber boot pulls out of the inducer opening,
remove from the adapter and reinstall onto the
inducer.
17. Rotate the inducer so that the outlet is pointing
vertically.
18. Use the three inducer screws to reattach the
inducer to the cold header. Torque to 30 in.-lbs. Do
not overtighten.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
