86
S9XB-SVX001-1D-EN

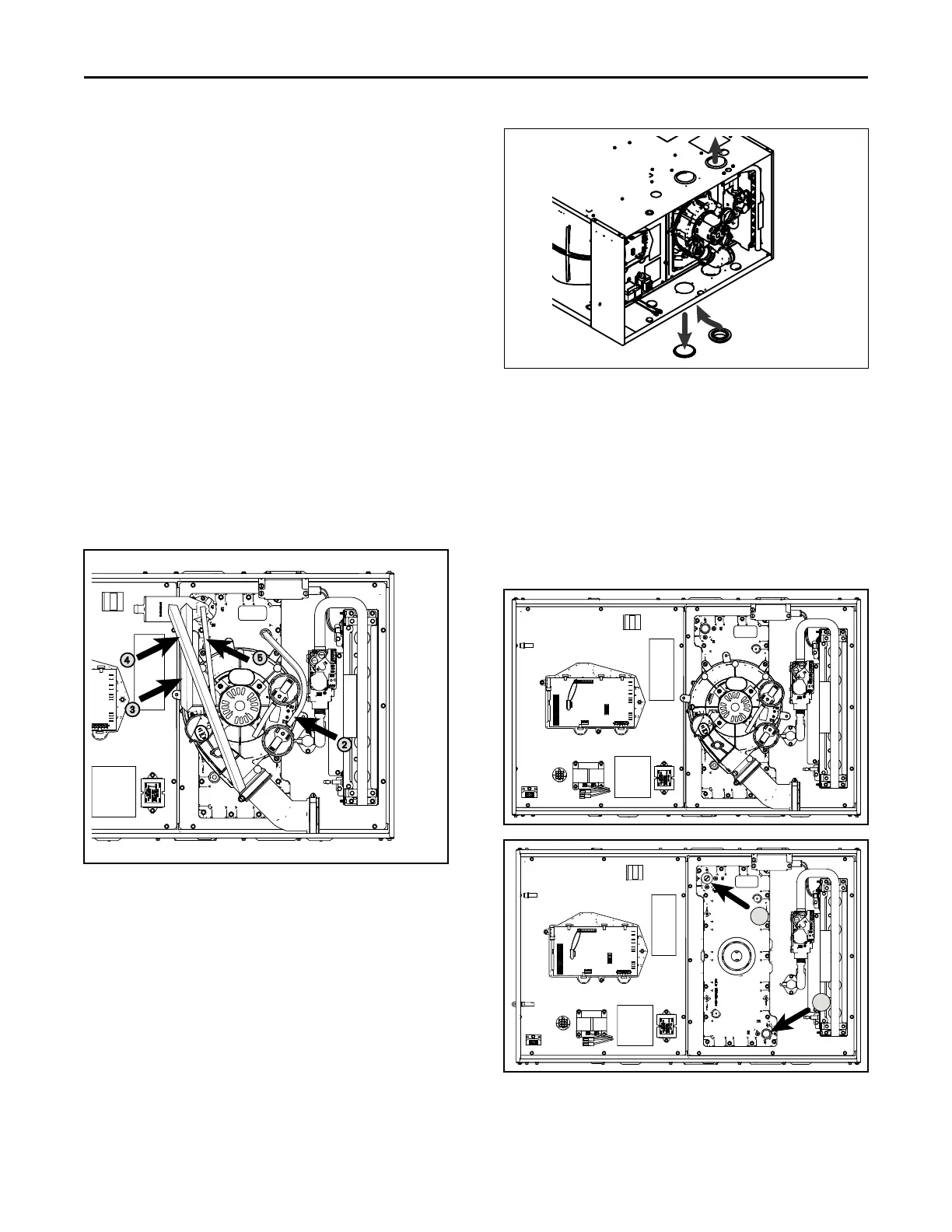

NNoottee:: When removing condensate hoses from the
condensate trap, hold the trap with your hand to
prevent the trap from breaking. Removing the
trap before the hoses is also an option.
2. Remove tubing from PS2 pressure switch.
3. Remove drain tubing from bottom of inducer
housing.
4. Remove rain gutter tubing from inducer outlet.
5. Remove tubing from condensate pressure switch.
6. Remove the screws that hold the condensate trap
bracket. The condensate trap should not be
removed from the condensate trap bracket.
Remove assembly and retain for later installation.
7. Remove the condensate adapter located inside the
condensate trap connection on the cold header and
retain for later installation.
NNoottee:: The plastic condensate adapter with O-rings
located inside the cold header that is held in
place by the condensate trap bracket. Do not lose
this adapter. The condensate adapter needs to
be in place when the condensate trap bracket is
reattached.
8. Remove 3” plug on right side of unit. To be used for
condensate trap.
9. Install condensate trap grommet.
10. Remove 3” plugs on the left side of the cabinet. To
be used for combustion air inlet.
11. Reuse the two 3” plugs to seal the two 3” default
openings on the top of the furnace.
12. Remove three inducer screws.
13. While the inducer is loose, remove condensate
drain plug from top right location on cold header.
14. Place condensate drain plug onto the cold header
outlet located on the bottom left of the cold header.
15. Rotate the inducer 180 degrees so that the elbow is
pointing towards the left.
16. Use the three inducer screws to reattach the
inducer to the cold header. Torque to 30 in.-lbs. Do
not overtighten.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
