Connect power leads to the D, R and B
terminals.
• Wire data to D.
• Wire 24 VAC hot to R.
• Wire common to B.
NOTE: All wall penetrations MUST be
sealed to prevent temperature biasing.
CAUTION: EQUIPMENT DAMAGE HAZARD - Improper wiring
can lead to equipment damage. Follow the terminal connection
information carefully to ensure the control is wired properly. Af-
ter wires are secure, bare wires MUST NOT touch each other.
See the Field Wiring Diagrams for specific system applications.
This information is intended for use by individuals possessing
adequate backgrounds of electrical and mechanical experi-
ence. Any attempt to repair a central air conditioning product
may result in personal injury and/or property damage. The
manufacture or seller cannot be responsible for the interpre-
tation of this information, nor can it assume any liability in
connection with its use.
LIVE ELECTRICAL COMPONENTS! - During installation,
testing, servicing, and troubleshooting of this product, it may
be necessary to work with live electrical components. Failure
to follow all electrical safety precautions when exposed to live
electrical components could result in death or serious injury.

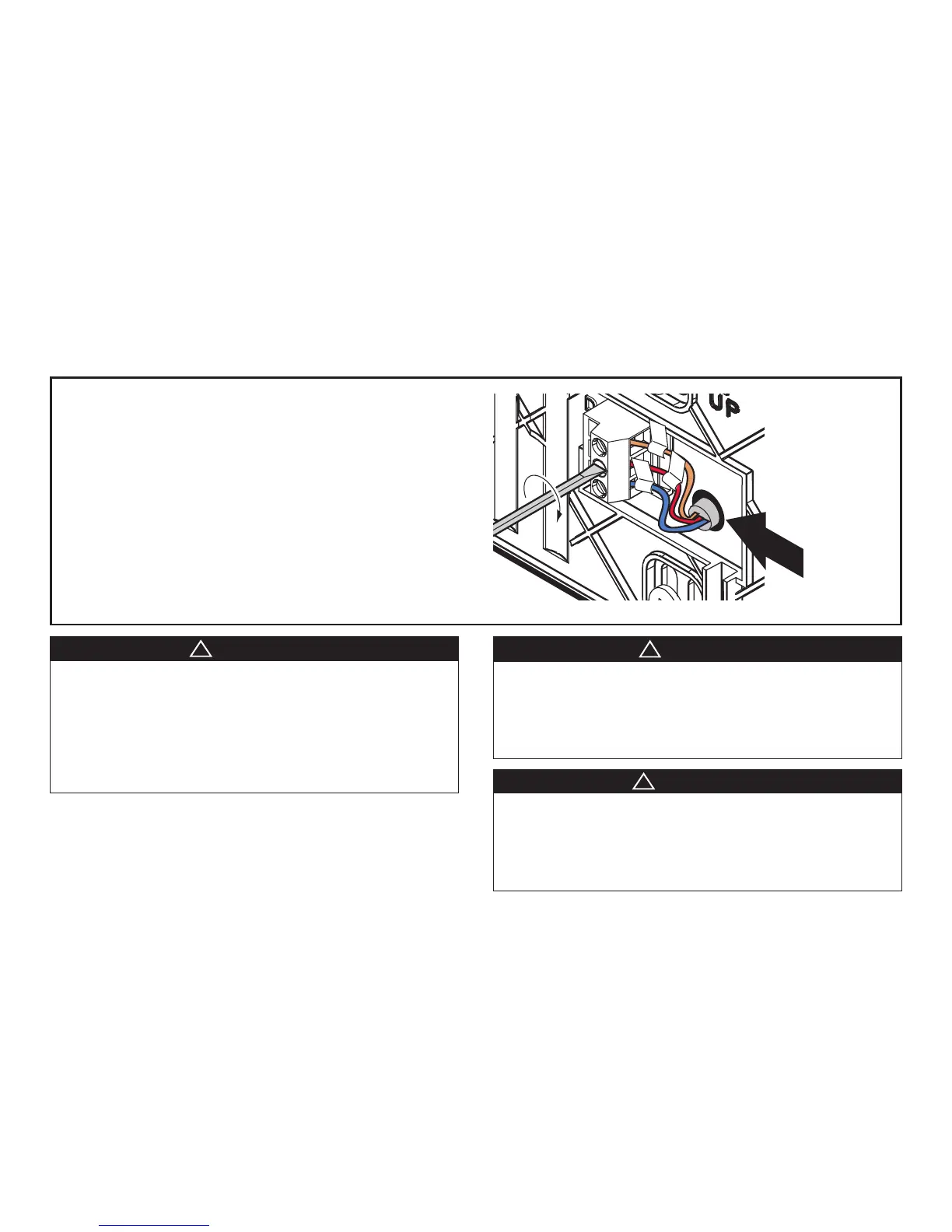

3.4 Wiring
D
R
B
Seal
Hole
To Next Page
