Trane UniTrane Fan-Coil - Coil Piping and Connections

Dimensions
and Weights
UNT-PRC001-EN 55
Fresh Air
Opening
Fresh Air Opening Locations
Low Vertical Units Models K and L
Fresh Air Opening Dimensions, Low
Vertical Units
Unit
Size 03 04 06
A2’-0
1
/4” 2’-9
3
/4” 3’-6
1
/4”
B2’-2
1
/4” 2’-11
3
/4” 3’-8
1
/4”

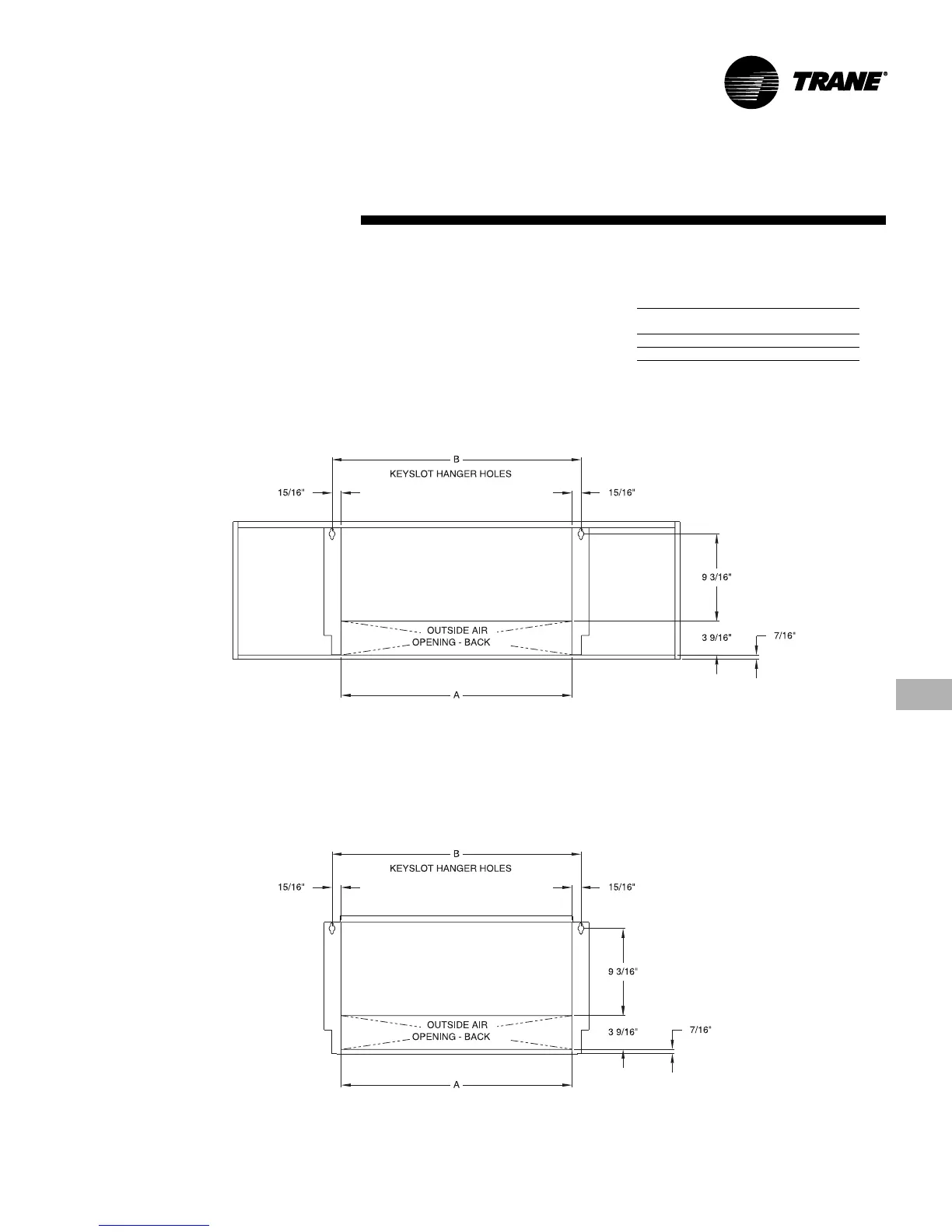

LOW VERTICAL CABINET
REAR VIEW
LOW VERTICAL CONCEALED
REAR VIEW
