Connecting Comfort Features

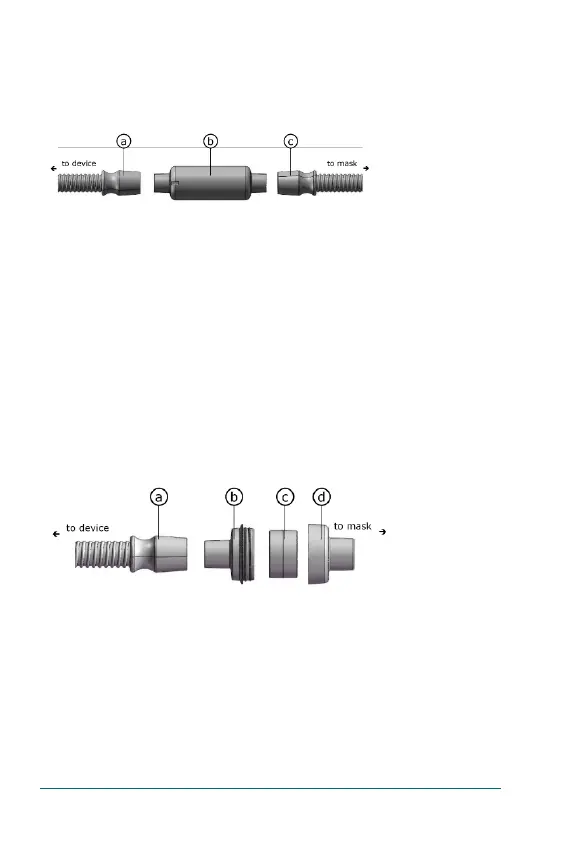

WHISPERSOFT™ MUFFLER ASSEMBLY
1. Attach the short hose to the device.
2. Attach the short hose to the WhisperSoft muffler.
3. Attach one end of long (mask) hose to the other end
of the muffler and then attach the other end to the
mask or HME (Heat/Moisture Exchanger).
AIRMIST™ HME ADAPTER ASSEMBLY
The Transcend AirMist HME assembly is sold separately, and
it is not included with the Transcend Micro system.
1. Remove the HME cartridge from foil package. Handle
by the plastic shroud not the foam core.
2. Unscrew the HME adapter bottom from the HME
adapter top and place the HME cartridge inside the
HME adapter bottom.
3. Place the HME adapter top onto the HME adapter
bottom and gently turn the top until tight.
a. Short air hose
b. WhisperSoft
muffler
c. Long air hose
a. Long air hose
b. HME adapter
bottom
c. HME cartridge
d. HME adapter
