13 TREK SERVICE INFORMATION August 2016

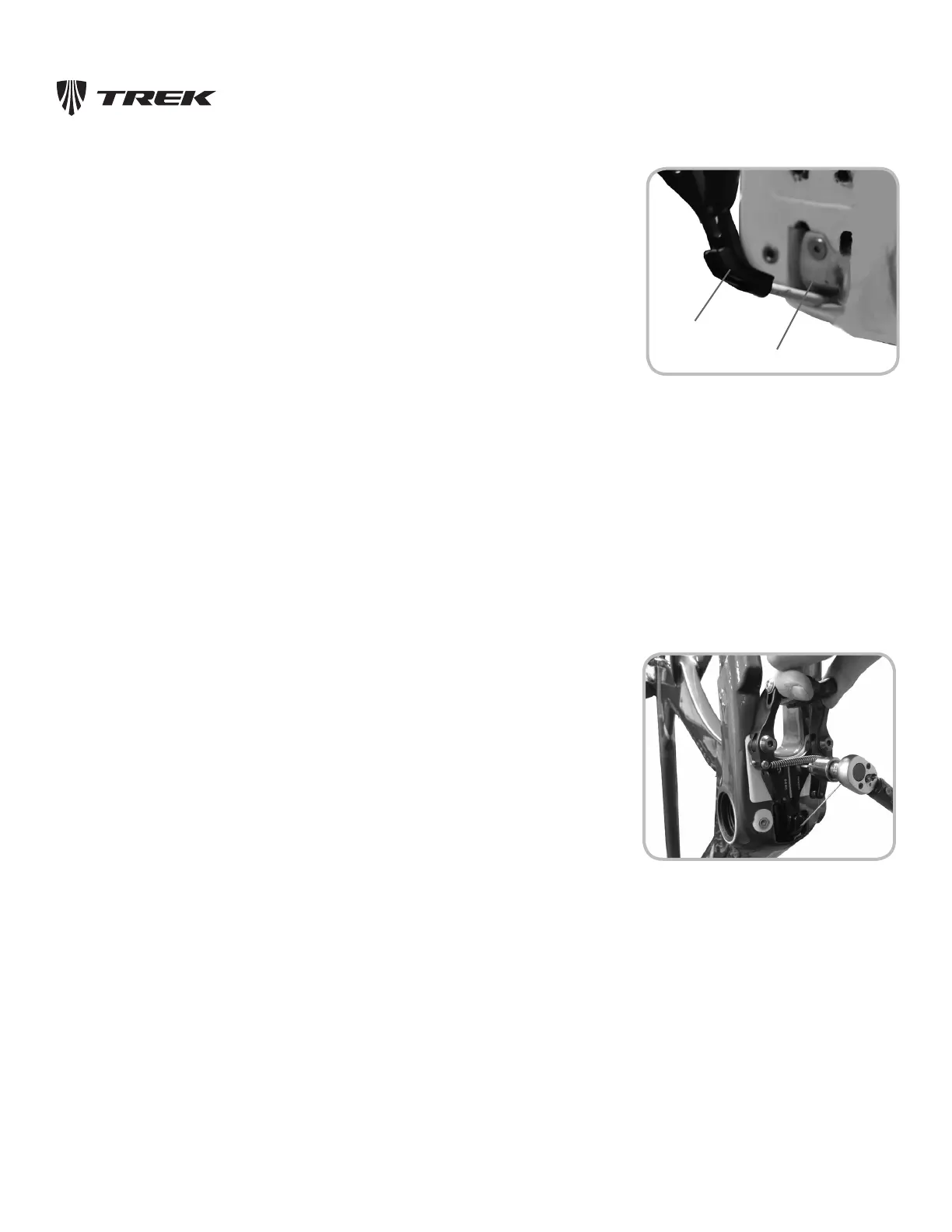

Figure 7.6. Brake yoke with housing connected
5. Install a ferrule on the brake housing. Make sure the guide tube, a short plastic tunnel
that reduces cable friction, is in the brake yoke (Figure 7.6), and slide the housing into
the yoke.
6. Run the rear brake cable backwards through the brake, then into the yoke and housing.
This is to hold the housing in place while you proceed with the next steps.
Figure 7.7. Aaching the rear brake
7. Attach the brake with the two brake attachment bolts (Figure 7.7). Tighten the bolts to
6-8 Nm.
Brake yoke
Boom bracket cable guide
