Trek Speed Concept 2014 - Derailleur Installation

22 TREK SERVICE INFORMATION August 2016
9. Derailleurs
At this point in the assembly, the cables should be in the housings that run through the
down tube. These instructions explain the correct routing through the bottom bracket cable
guide and to each of the derailleurs.

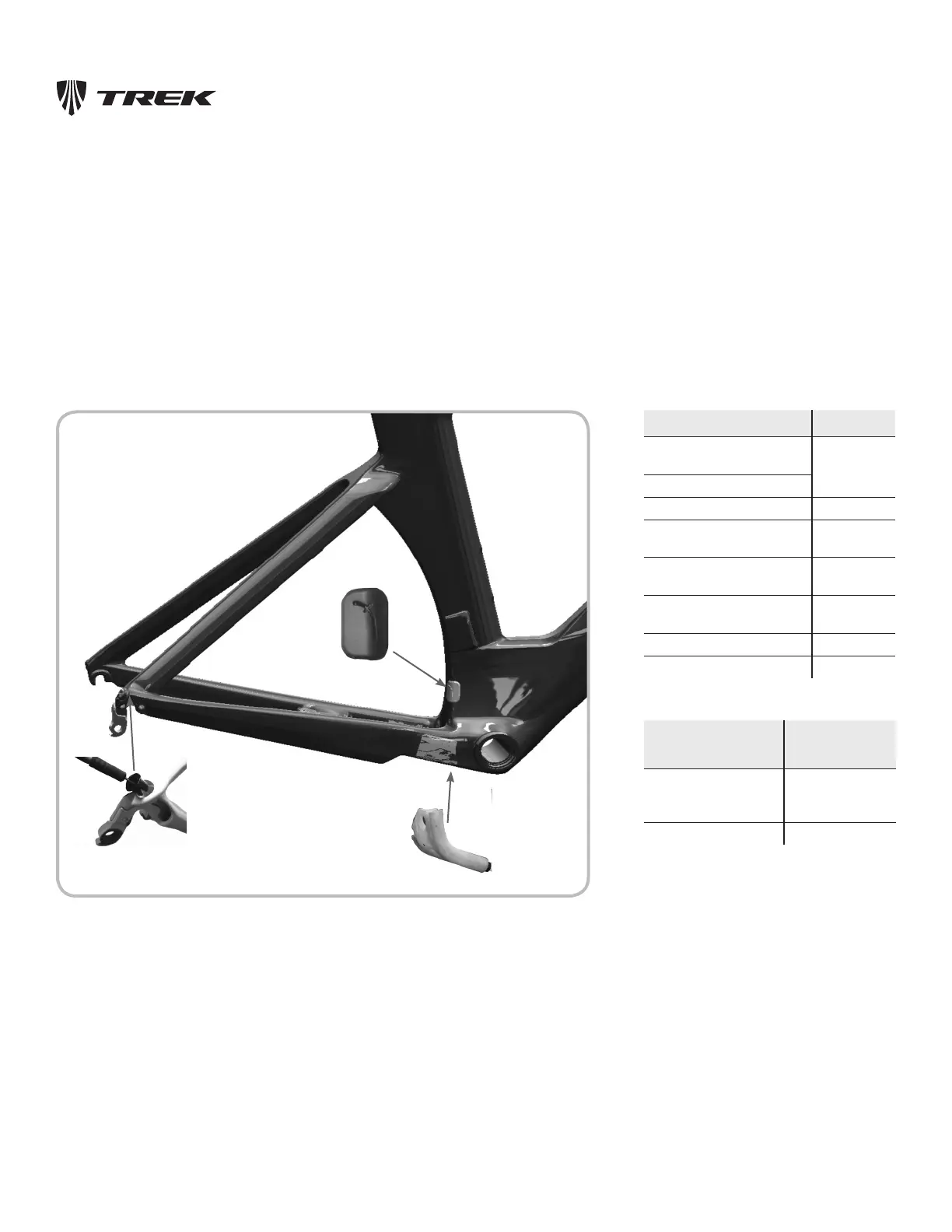

Figure 9.1. Speed Concept parts for shi cable roung
Part PN
Bottom bracket shift cable
guide
Kit 437032
Bolt
Front derailleur hanger 326957
Front derailleur spherical
washer (9 series only)
W319573
Front derailleur frame
grommet
Kit 437032
Rear dropout cable guide/
housing stop
Kit 437032
Rear derailleur hanger W315464
Bolts W318604
Dropout cable guide/
housing stop
Boom bracket shi cable guide
Front derailleur
frame grommet
Part Torque Spec
(Nm)
Front derailleur
mounting bolt
Derailleur
manufacturer’s
recommendation
BB cable guide bolt 3
Tools and materials required
• Derailleur cable and 4 mm housing
• Derailleur housing ferrules
• Housing cutters
• Torque wrench
• 4 and 5 mm hex wrench
