Trek Speed Concept 2014 - Shimano HollowTech Crankset Installation

43 TREK SERVICE INFORMATION August 2016
Shimano HollowTech
These instructions explain how to install a Shimano HollowTech (Figure 1) in a new Speed
Concept. To complete the installation, you will also need the Shimano instructions, available
at: http://techdocs.Shimano.com/media/techdocs/content/cycle/SI/Dura-Ace/FC-7800-
7803/SI_1F30H_En_v1_m56577569830605111.pdf.
Tools and materials required
1. • Crankset and bottom bracket
2. • Shimano FC16 crank arm installation tool
3. • 5 mm Hex Wrench
4. • Bearing installation tool PN 404694
5. • Rock “N” Roll Super Coat grease
6. • Bottom bracket parts

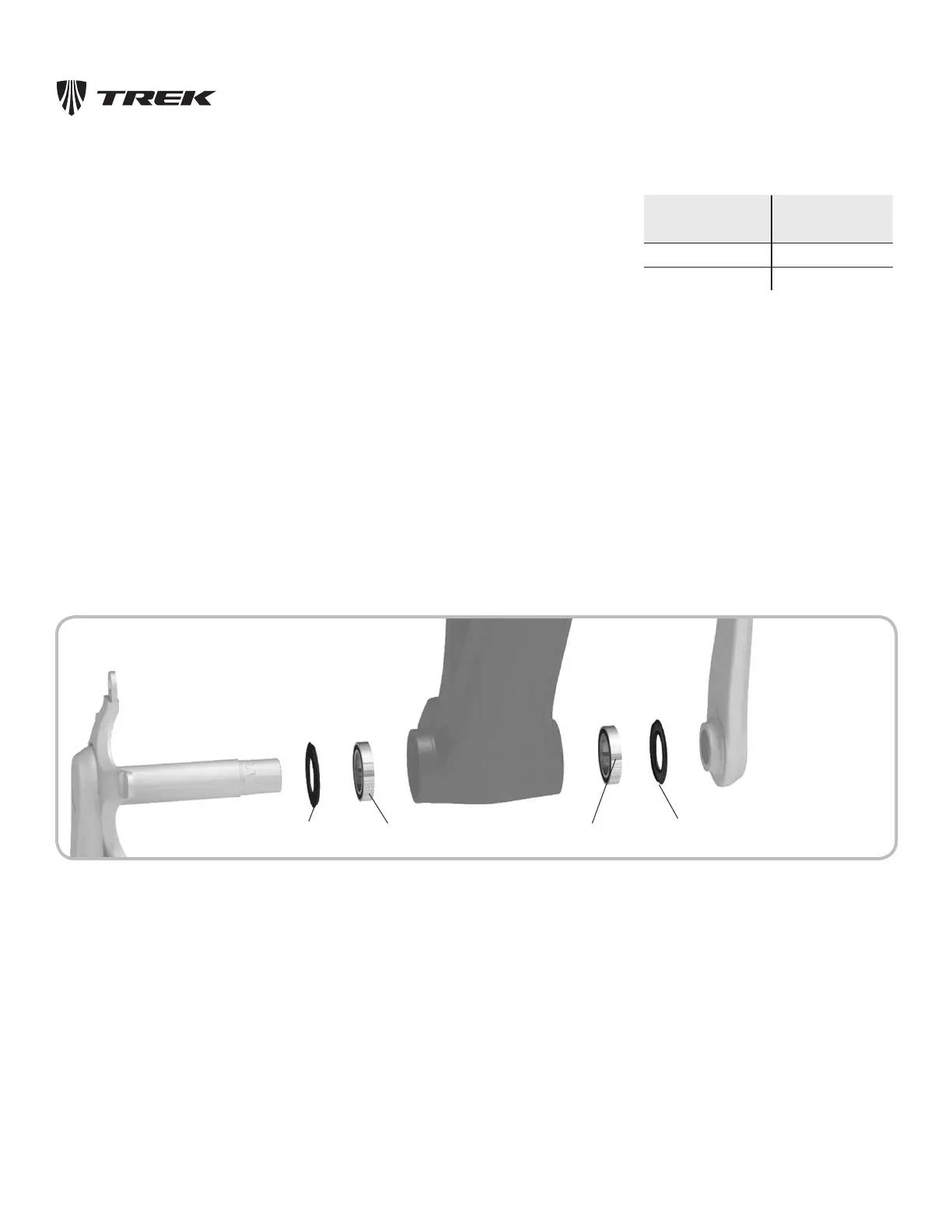

Figure 14.15. Shimano bearing set
Seal
Bearing
Seal
Bearing
Part
descripon
Shimano
Kit 404699
Ceramic kit 411813
