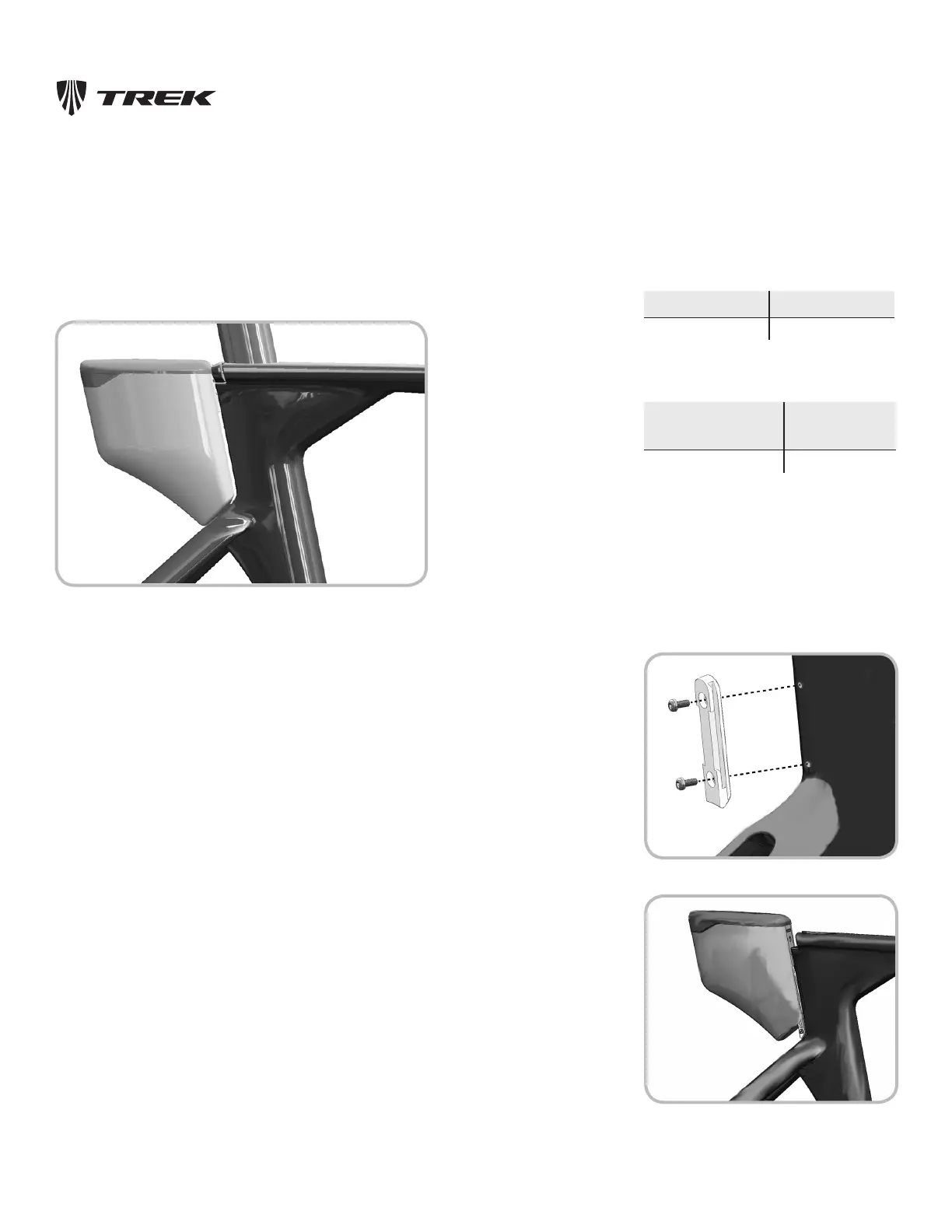

Trek Speed Concept 2014 - Accessory Installation; To Install A Draft Storage Box

33 TREK SERVICE INFORMATION August 2016
Figure 13.2. Aaching the track to the rear of the seat
tube. Note orientaon of spring-loaded buon.
Figure 13.3. Sliding the dra box down the track
13. Accessories
1. Place the track so that the spring-loaded button is at the bottom and on the non-drive side
of the bike. Insert two bolts through the track (Figure 13.2) and tighten to 2-3 Nm.
Part PN
Draft Storage Box 433746
Part Torque Spec
(Nm)
Attachment bolt 2-3
To Install A Dra Storage Box
This box is placed out of the wind behind the seat tube (Figure 13.1). The box slides down
onto a removable track that attaches to the frame with two mounting bolts.
Tools and materials required
• 4 mm hex wrench
• Torque wrench
2. Align the draft box on the top of the track and slide it down the track (Figure 13.3).
Push the box down until it clicks into place on the track.
To release the box, press the button and slide the box up the track.
Figure 13.1. Dra Storage Box
