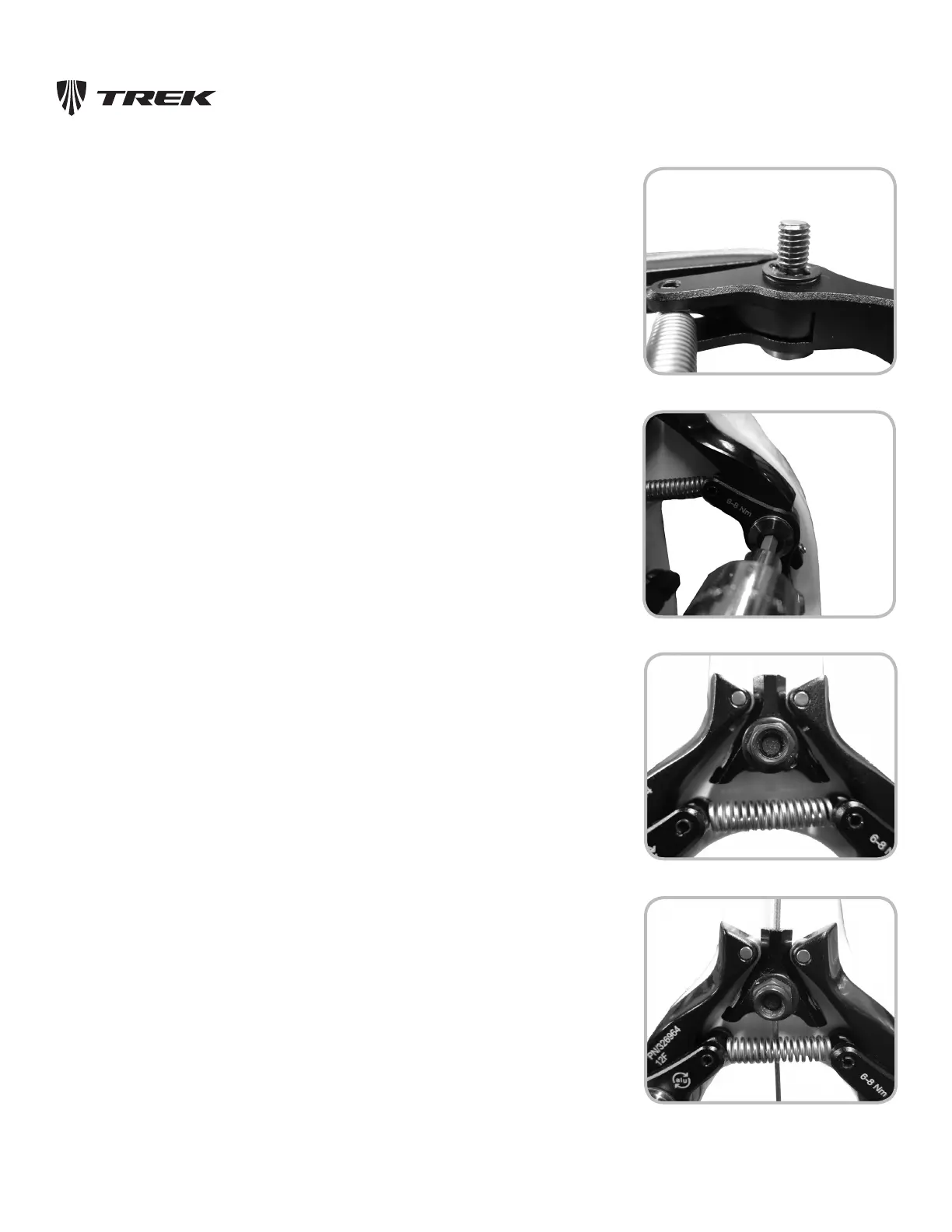

25 TREK SERVICE INFORMATION August 2016
To Install And Adjust The Front Brake
1. Make sure the E-clip is in the groove on the brake bolt (Figure 10.2)
Figure 10.2. E-clip on brake bolt
Figure 10.3. Tighten the brake bolts
2. Install both brake arms onto the fork (Figure 10.3). Tighten to 6-8 Nm.
3. Place the wedge in the “home” position between the rollers (Figure 10.4).
Figure 10.4. Wedge in “home” posion between rollers
4. Loosen the cable clamp nut and slide the cable through the wedge (Figure 10.5).
Tighten the cable clamp nut until finger-tight.
Figure 10.5. Cable in wedge
