Trek Speed Concept 2014 - To Install A Speed Box

34 TREK SERVICE INFORMATION August 2016

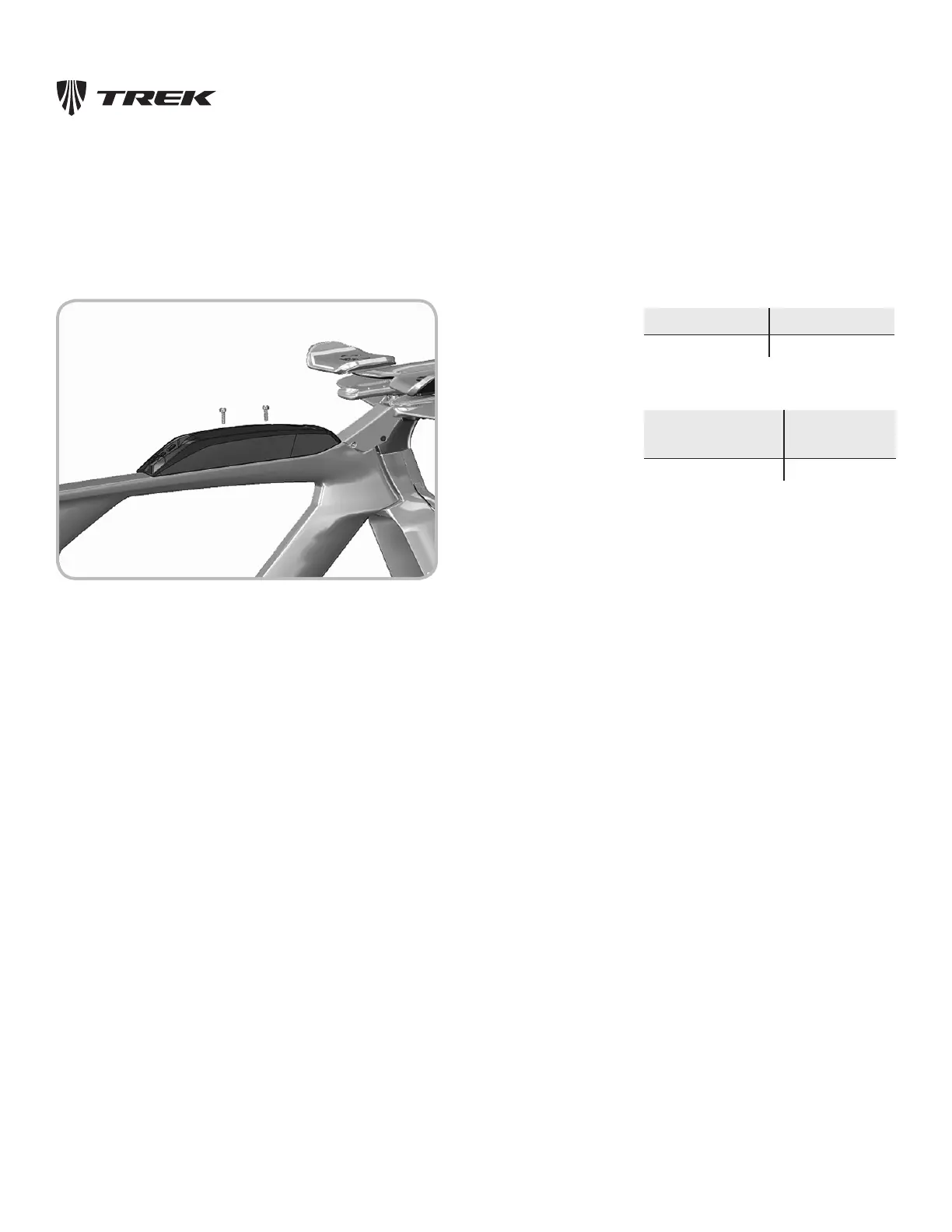

Figure 13.4 Speed Box
To Install A Speed Box
This box is placed on the top of the top tube (Figure 13.4). The box attaches to the frame
with two mounting bolts.
1. Align the Speed Box with the threaded holes on the top tube (Figure 13.4).
2. Insert two M5 bolts though the Speed Box and into the threaded holes in the top tube.
Tighten to 2-3 Nm.
Part PN
Speed Box 436152
Part Torque Spec
(Nm)
Attachment bolt 2-3
Tools and materials required
• 4 mm hex wrench
• Torque wrench
