Trek Speed Concept 2014 - To Install A Bottle Cage

35 TREK SERVICE INFORMATION August 2016

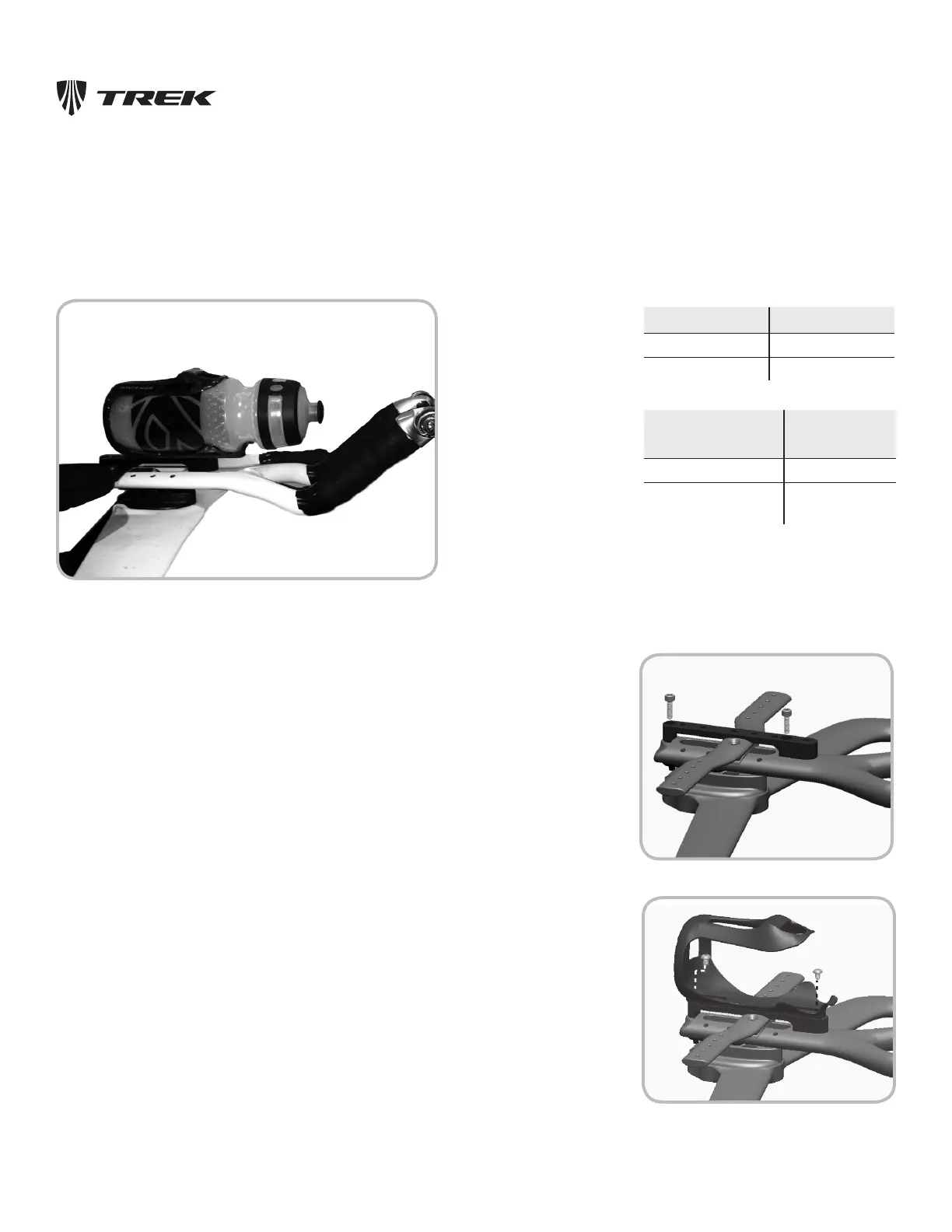

Figure 13.5 Speed Concept bole cage
To Install A Bole Cage
The custom Speed Concept bottle cage attaches to the mono-extension via a cage mount,
which allows a variety of positions. The cage includes an integrated computer mount.
1. Insert two bolts through the cage mount and into the mono-extension (Figure 13.6).
Tighten to 5.2 Nm.
Figure 13.6. The cage mount aaches to the mono-
extension
Figure 13.7. The cage can be aached at a choice of
locaons
2. Select a location for the cage and insert two bolts (Figure 13.7). Tighten to 3 Nm.
Part PN
Bottle cage 436151
Computer mount 436163
Part Torque Spec
(Nm)
Cage attachment bolt 3
Mount attachment
bolt
5.2
Tools and materials required
• 3 and 4 mm hex wrench
• Torque wrench
