18 TREK SERVICE INFORMATION August 2016
18. Re-insert the front aerobar attachment bolt and then the two bolts on the side of the
stem (Figure 7.23), and tighten all three bolts to 6-8 Nm.
Note: The side bolts are not on the centerline of the bike, but “lean” inward nearer the top
of the bar.
17. Secure the stem cover with the two side attachment bolts (Figure 7.22).

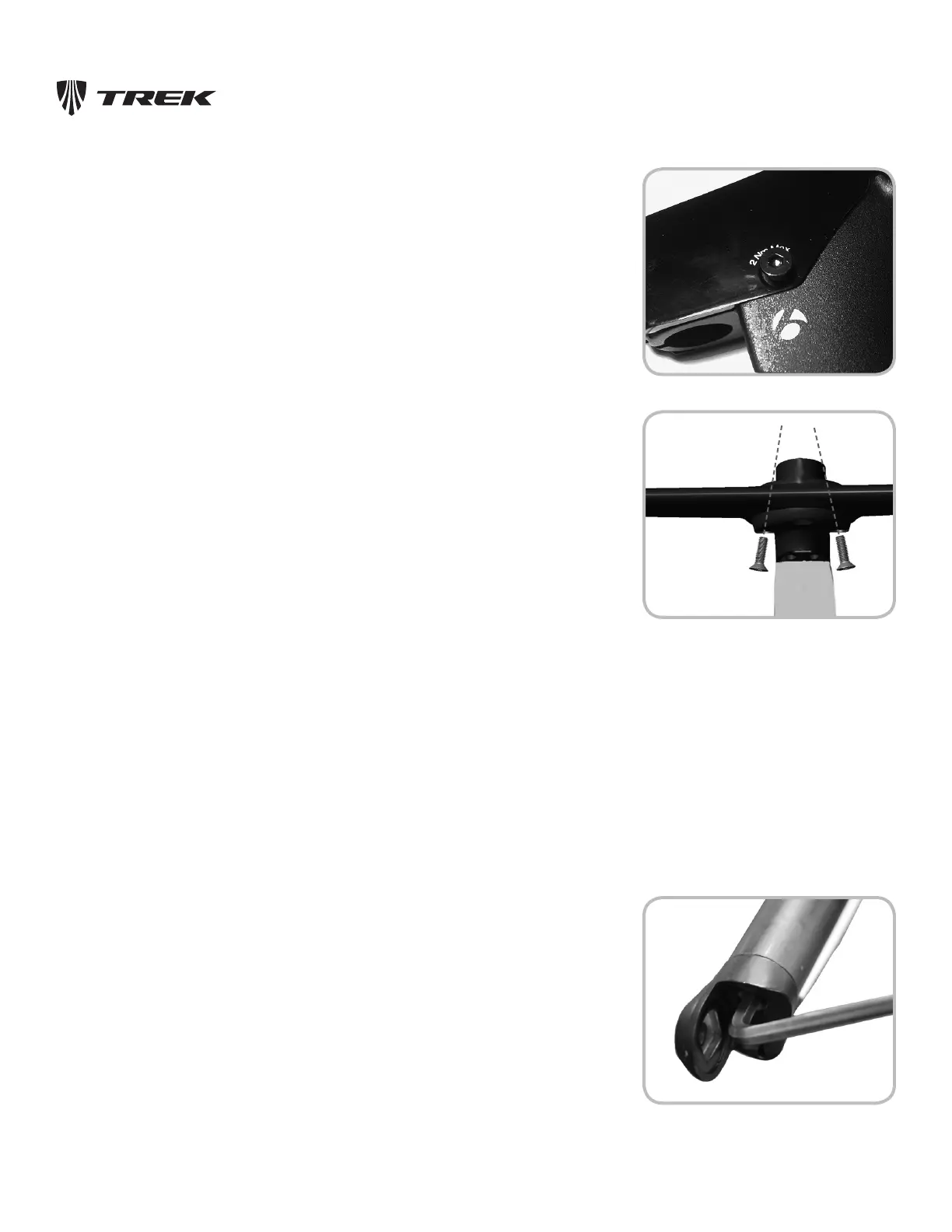

Figure 7.23. Side aachment bolts go in at an angle
Figure 7.24. Tightening shi lever body
19. If needed, cut to length the shift housings from the mono-extension to the shifters.
Figure 7.22. Housing cover on stem
20. Install the shifters (Figure 7.24) and cables. Tighten the shifters to the manufacturer’s
recommendation.
