27 TREK SERVICE INFORMATION August 2016

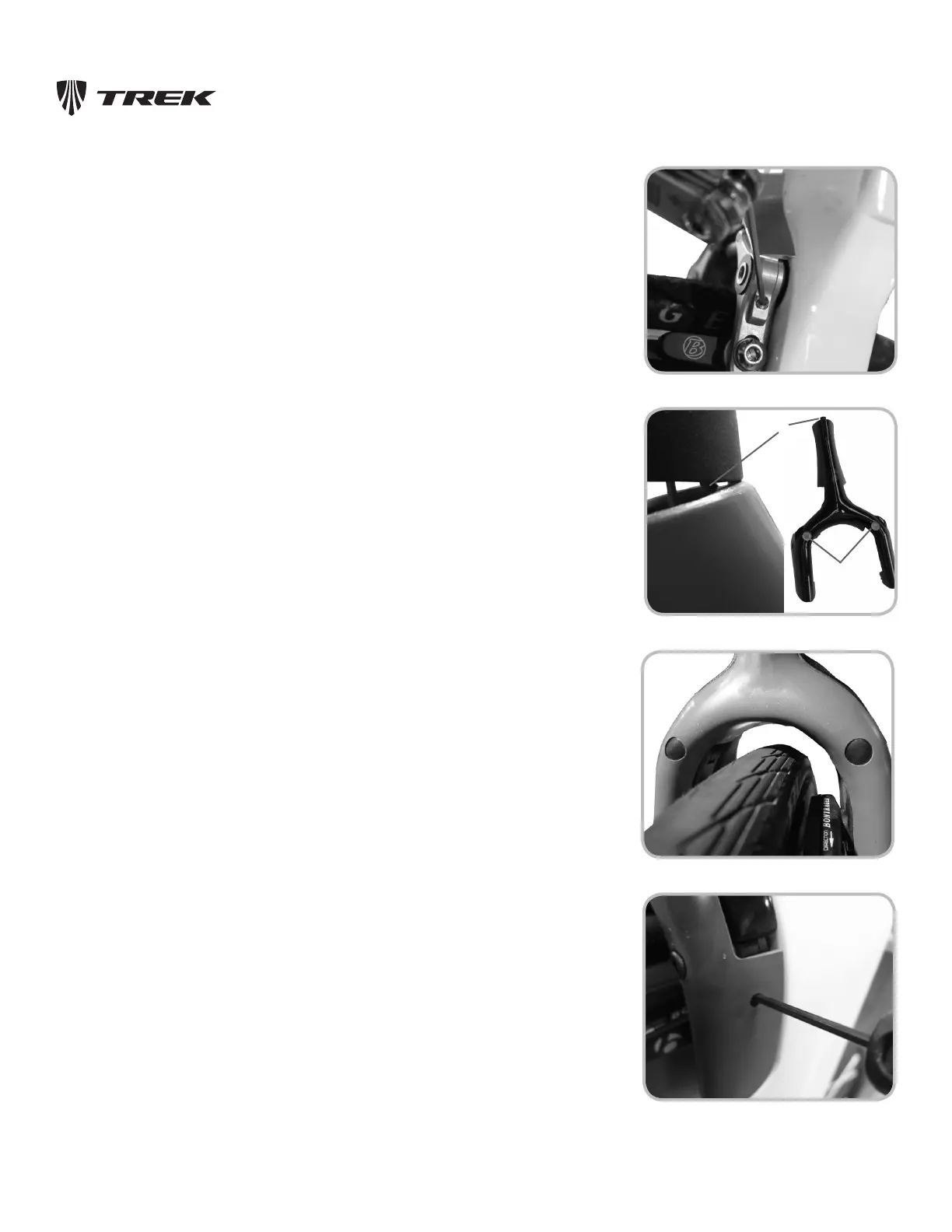

Figure 10.11. Aachment points of front brake cover
Tab
Aachment
bolts
9. With the centering screws, center the brake (Figure 10.10).
10. Engage the top tab of the cover (Figure 10.11), then place the cover over the brake and
install the cover bolts. Tighten to 3 Nm.
Figure 10.12. Brake cover grommets
Figure 10.13. Centering screw inside front brake cover
11. Install the grommets over the cover attachment bolts (Figure 10.12).
Brake cover
Fork
If needed, you can re-center the brake through the cover (Figure 10.13).
Figure 10.10 Center the brake over the rim
