3.10.5 Cable routing – photos

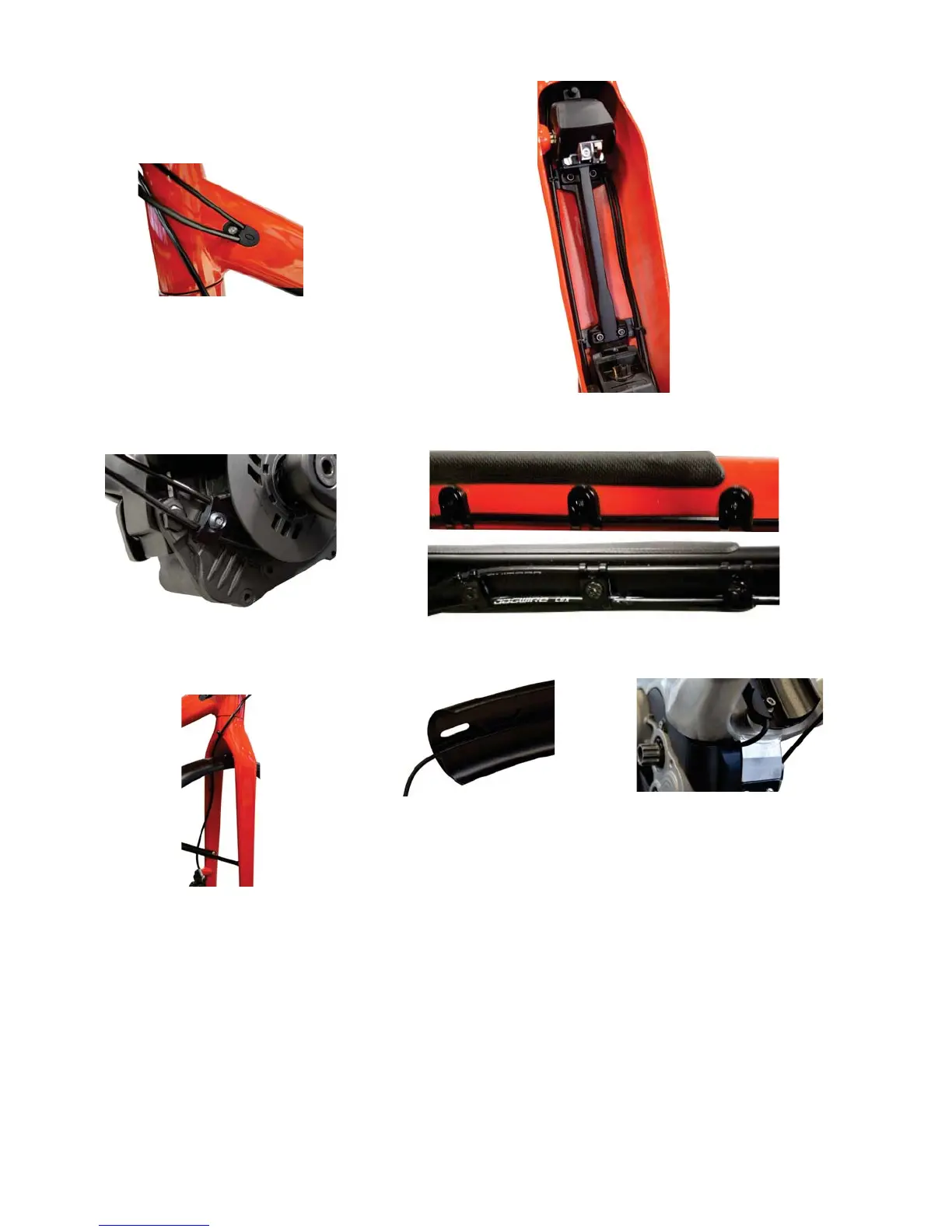

Front frame entry (both sides) Rear brake, shifter and electrical cables
through the battery bay
Cable(s) at drive unit Top: Cable at chain stay
(derailleur)
Bottom:
Cables at chain stay (IGH)
Front brake cable mounted at the fork Rear light cable, secured with a clip,
in the fender guide
Rear light cable routed to drive unit
