5.2.2 Battery installation

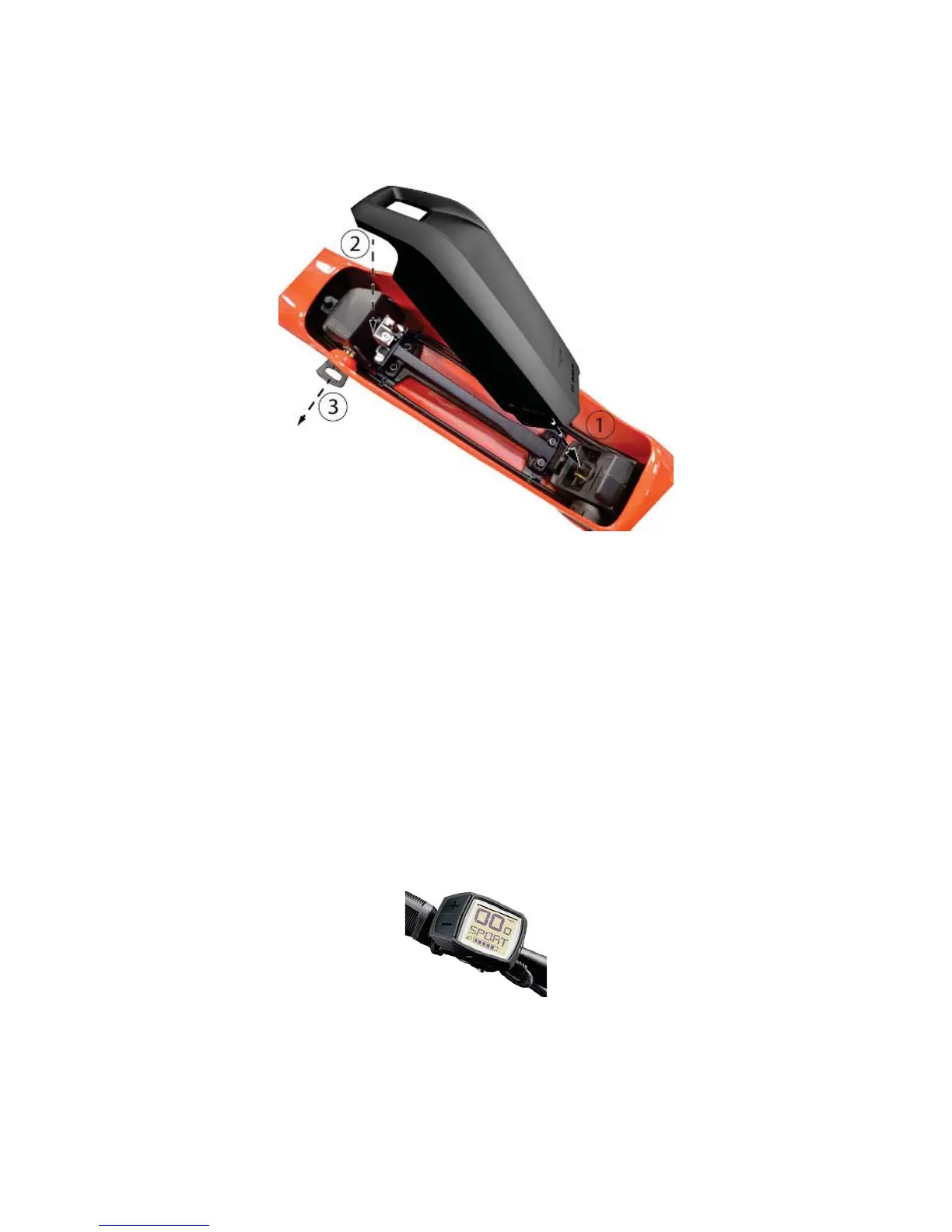

To place the battery in the frame, first position the battery in the lower holder (1) and press it downwards at the
other side of the battery (2), until you hear the ‘click’ as the battery locks itself in the upper holder.
Remove the key to prevent theft of the battery or injuries (3).
Installing the battery
5.3 Operating the Bosch eBike assist system
For operating instructions about the Bosch eBike assist system, refer to the RIDE+ Owner’s manual of the bicycle
(refer to paragraph
8.2 for an overview).
5.4 Switching the lights On/Of
5.4.1 Switching the lights On/Off on Non – EU-Type Approval bicycles
The front and rear light of these models can be switched On/Off manually on the display.
Medium-press the ‘+’ button on the Purion display to switch On the front and rear lights. To switch Off the bicycle
lights, long-press the “+” button. The lighting symbol is displayed when the light is On.
Medium press the “+” button to switch On the lights
