6.1 Battery rail
6.1.1 Adjusting the battery rail position
To position the battery in the middle of the battery bay, it is possible to adjust the position of the battery rail. The
first pair of rail bolts is visible at the bottom of the downtube; the other pair is hidden underneath the motor armor.
To adjust the position of the battery rail follow these steps (if it is not necessary to remove the battery):
1. Remove the motor armor.
2. Loosen the bolts of the battery rail a few turns.
3. Adjust the battery rail sideways as required.
4. Tighten the battery rail bolts.
5. Re-fit the motor armor, tighten the bolts.
6. Remove the battery and put it back to check all clearances.

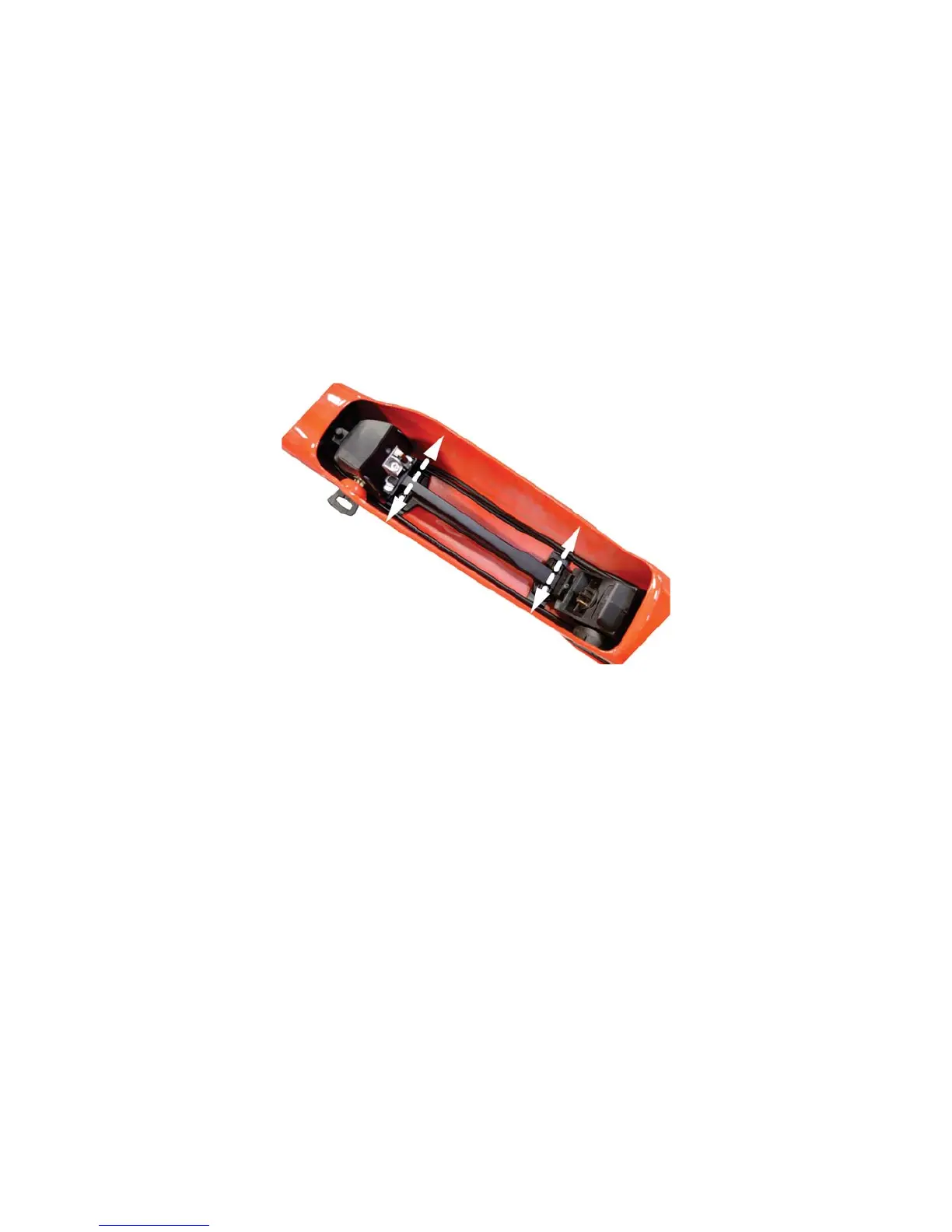

Adjusting the battery position sideways
