Trek Super Commuter+ 8 - Electrical Specifications; Light Configurations

21

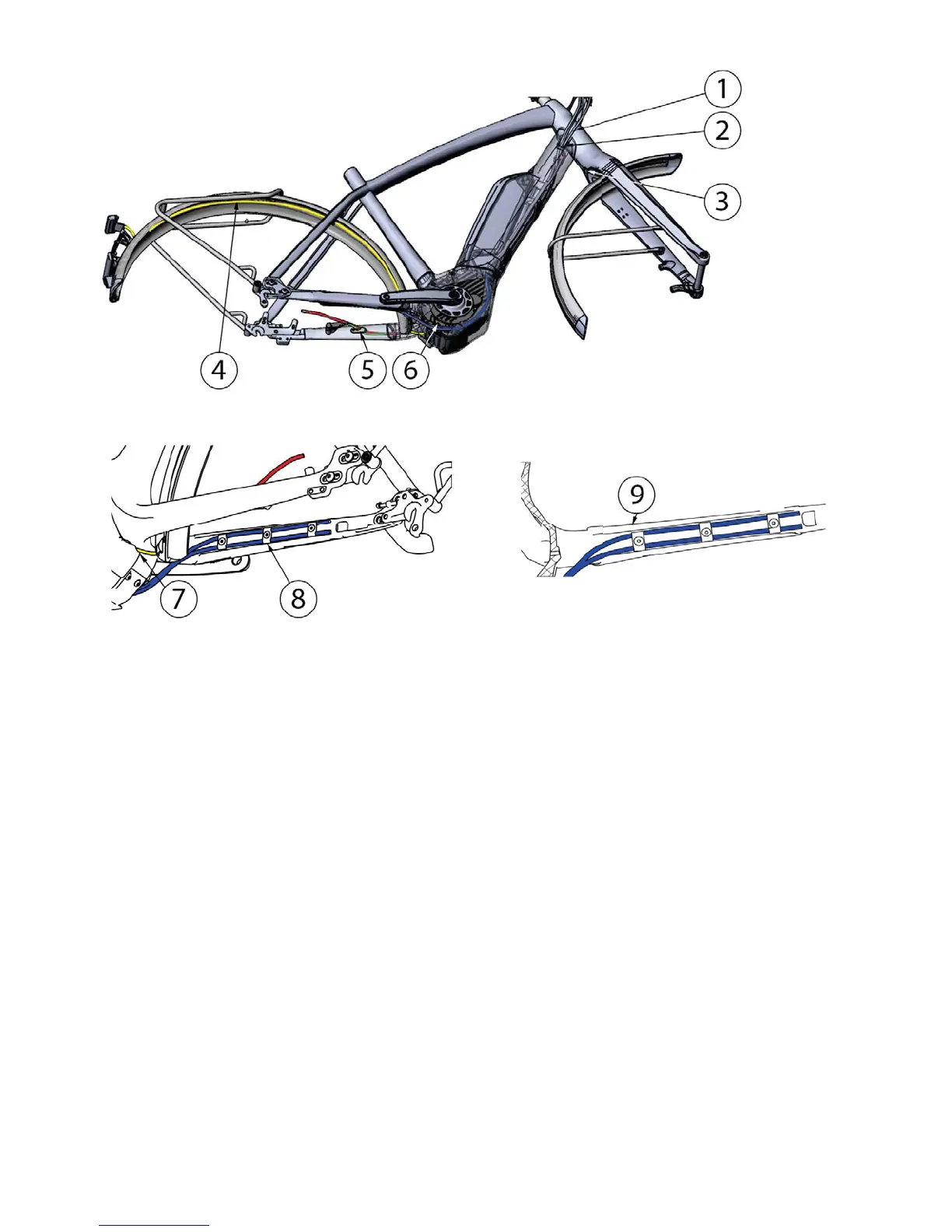

Cable routing through the frame
1. Drive side: electrical cable (3x)
Non-drive side: rear brake and shifter cable(s)
2. Cable guide frame plug
3. Cable guide clamp for front brake hose
4. Rear light cable through rear fender
5. Cable guide frame plug
6. Cable clamp for derailleur (1 cable) or IGH
(2 cables)
7. Rear light cable entering the motor mount
8. Cable clamp for derailleur (1 cable) or IGH
(2 cables)
9. Chain stay guard
