170mmø
CDJ300 & CDJ600
-11--11-

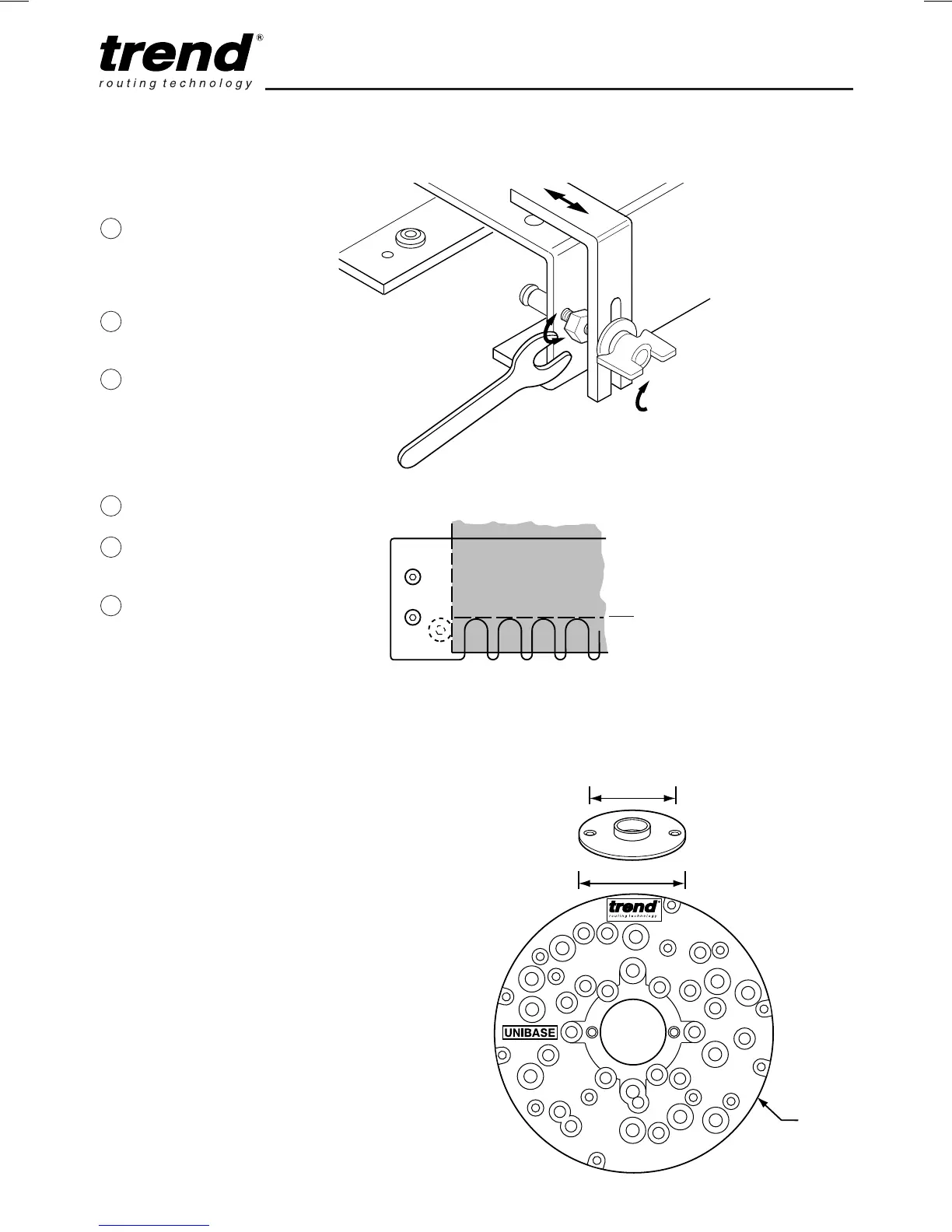

Template Comb
Fitting and
Adjustment
To adjust depth of
template comb and
therefore pin socket,
loosen adjustment
stop using a hex key.
Turn adjustment stop
towards jig body for
deeper sockets.
To set up the position
for the template comb,
a setting line is drawn
on a workpiece. This
is used to line up the
back of the template
comb.
One revolution equals
1mm movement.
Once set lock
adjustment stop with
hex key.
Ensure template comb
is always parallel to
workpiece.
A packing piece the same
thickness as the timber
being clamped in the top
clamp should be used to
support the template comb.
Guide Bushes
The bushes supplied with
the jig and accessories are
a standard Trend pattern.
They will fit most Trend,
Elu and DeWalt routers
directly.
For other makes and
model of router a sub-base
may be required to allow
the guide bush to be fitted.
The Ref. UNIBASE has
been designed for use
with a variety of routers; it
also ensures concentricity
between cutter and guide
bush ensuring accuracy.
For Trend T3/T4 it is
recommended that the
Ref. UNIBASE is used to
provide greater accuracy
and support to the router
base.
It also ensures that
the guide bush spigot
will project sufficiently
from the router base,
alternatively a longer
spigot guide bush is
supplied for certain
template accessories.
Setting
line
1
2
3
4
5
6
50mmø
60mmø
