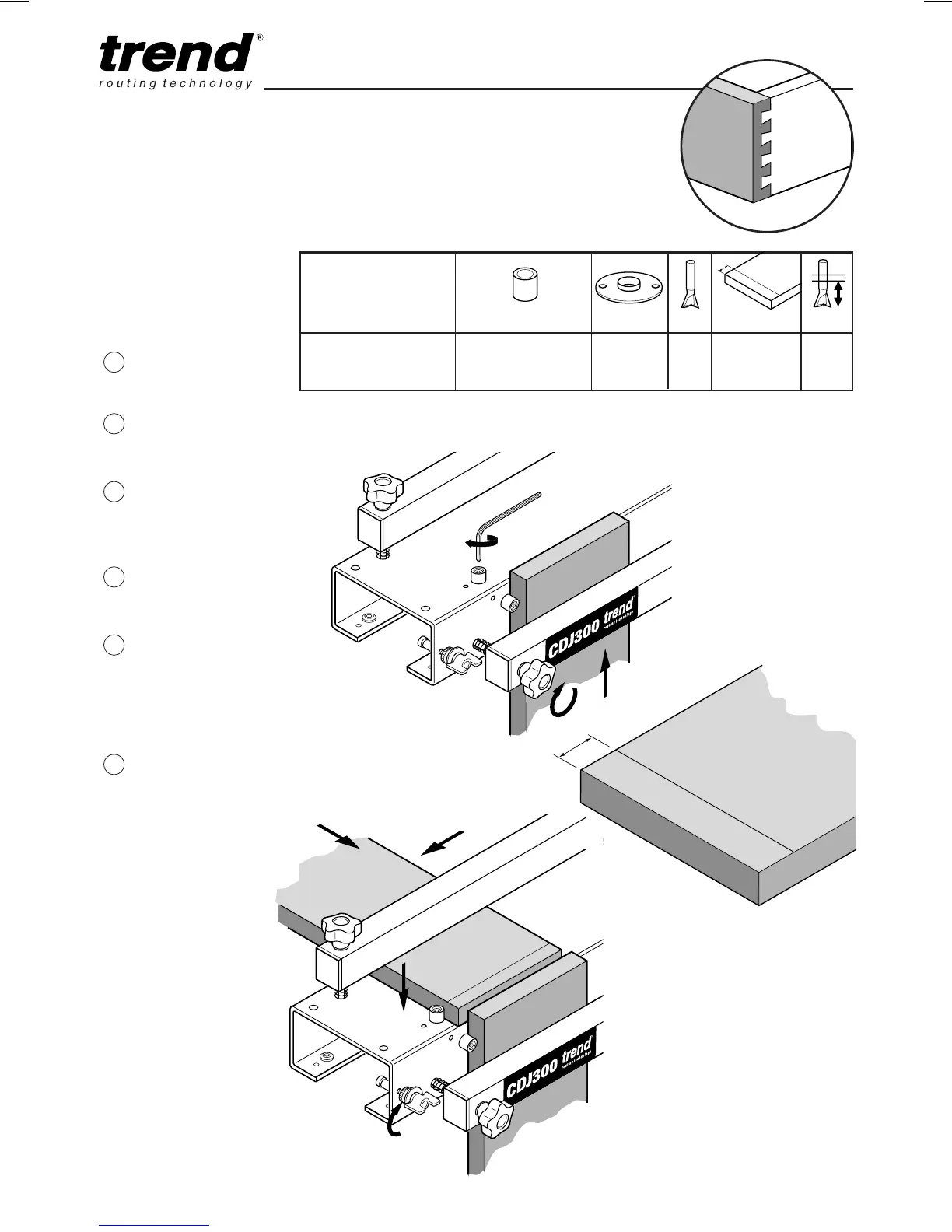

TREND CDJ600 - Standard Lapped Dovetails Setup

CDJ300 & CDJ600
-22-
Both parts of joint are
routed at same time.
(Drawing shown CDJ300
only.)
Set Up
Fit edge guides into
holes according to
table.
Draw a 15mm setting
template line onto the
workpiece.
Place one piece of
workpiece into front
clamp and push tight
against edge guide.
Tighten clamp bar
knobs to hold
workpiece.
Place other piece
of workpiece under
top clamp and butt
against workpiece
already fitted and
against edge guide.
Tighten top clamp
knobs.
6
5
4
3
2
1
Size Colour Hole Dia. Dia. Setting Line Depth
CDJ300/CDJ600 10Øx10 Silver U1 15.8 12.7 15 17
1/2” Standard 10Øx10 Silver F1
15mm
Dimensions
shown in mm.
STANDARD 1/2” (12.7MM)
LAPPED DOVETAILS
