TREND CDJ600 - 1;4 Lapped Dovetail Setup

-27-
CDJ300 & CDJ600
7.5mm
7.5mm
Both parts of joint are routed
at same time. (Drawings
show CDJ300 only.)

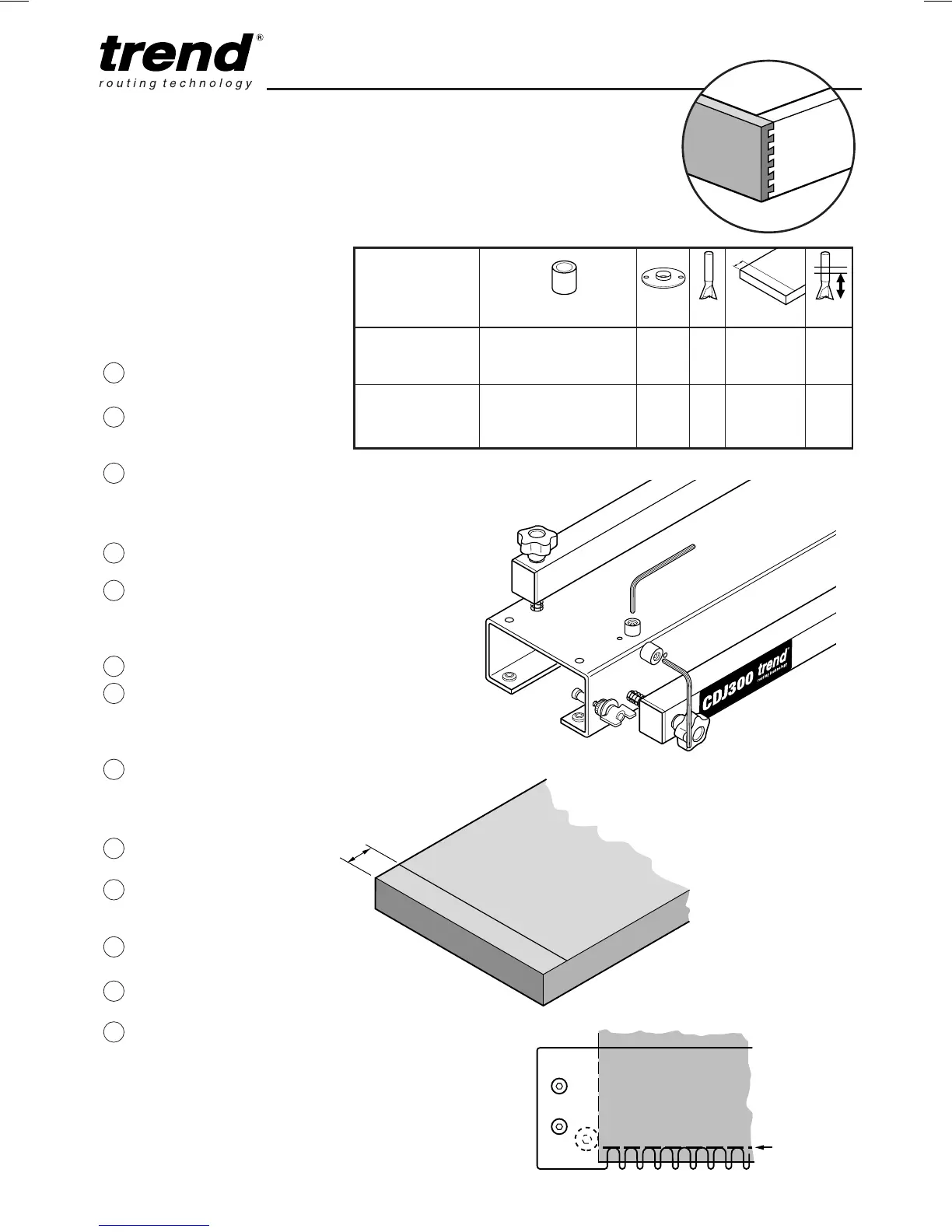

Set Up
Fit edge guides into
holes according to table.
Draw a 7.5mm setting
template line onto the
piece of workpiece.
Place one piece of
workpiece into front
clamp and push tight
against front edge guide.
Tighten clamp bar knobs
to hold workpiece.
Place other piece of
workpiece under top
clamp and butt against
workpiece already fitted.
Tighten top clamp knobs.
Ensure top of front
workpiece is flush with
back workpiece using a
square.
Fit brackets to template
comb with countersunk
holes uppermost and
with slots to front.
Fit template comb
assembly onto jig.
Adjust comb position to
line up back of template
slots to the 7.5mm line.
Fit guide bush to router
according to table.
Fit dovetail cutter into
router according to table.
Adjust the height of the
cutter according to table.
*From CDJ600 jig.
12
13
11
10
9
7
8
6
5
4
3
2
1
Size Colour Hole Dia. Dia. Setting line Depth
CDJ300/01 15.8Øx6 Green U1 7.8 6.0 7.5 11
1/4” Lapped 28.7Øx4 Green F2
CDJ600/01 20.1Øx10.5 Green U1 7.8 6.0 7.5 11
1/4” Lapped 10Øx10* Green F1
Dimensions
shown in mm.
OPTIONAL ACCESSORIES
1/4” (6.35MM) LAPPED
DOVETAIL TEMPLATE
