Routing Pin Socket
in the Drawer Front
Place router onto
template comb.
Switch on.
Carefully rout from left
to right following the
guide bush in the each
of the slots.
Switch off router and
remove from jig.
Examine each of the
slots to ensure all the
workpiece has been
cleanly routed.
Remove template
comb assembly.
Remove workpiece
from jig.
For Drawer Sides
Place drawer side
workpiece into front
clamp and push tight
against edge guide.
Tighten front clamp
bar knobs to hold
workpiece.
Place packing piece
under top clamp and
butt against workpiece
already fitted. Packing
piece must be 5mm
thicker than the
workpiece.
Ensure top of front
workpiece is flush with
back workpiece using
a square.
Tighten top clamp
knobs.
Fit template comb
assembly onto jig.
27
26
25
24
23
22
21
20
19
18
17
16
15
Routing Tails on
Drawer Sides
Place router onto
template comb.
Switch on.
Make one very light cut
from the right to the left,
cutting only the front
edge.
Carefully rout from left to
right following the guide
bush in the each of the
slots.
Switch off router and
remove from jig.
Examine each of the
slots to ensure all the
workpiece has been
cleanly routed.
Remove template comb
assembly.
Remove workpiece from
jig.

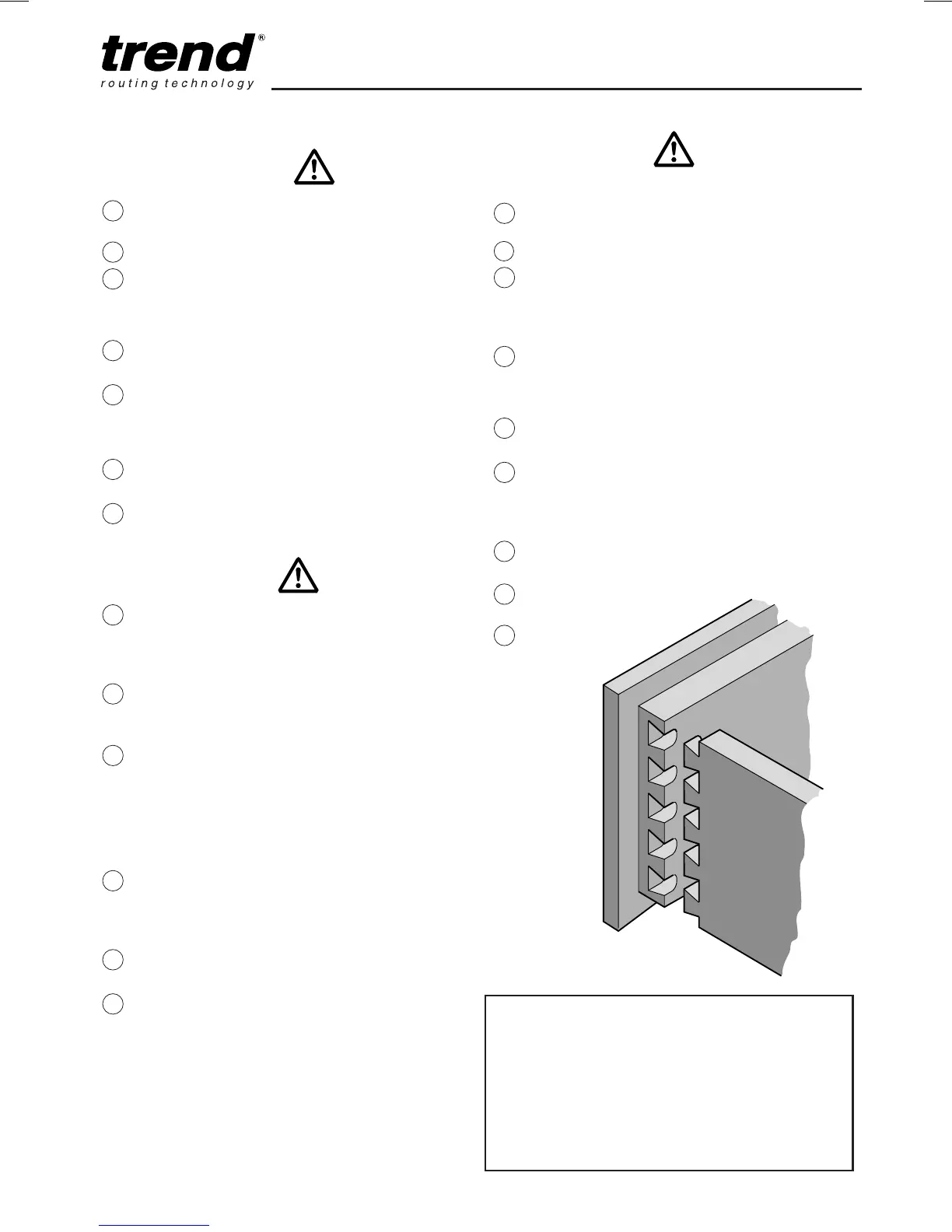

Test fit joint.
29
36
35
34
33
32
31
30
28
Joint too loose = increase depth
adjustment of cutter.
Joint too tight = decrease depth
adjustment of cutter.
Dovetail joint too shallow = move template comb
towards the jig body.
Dovetail joint too deep = move template comb
away from the jig body.
