CDJ300 & CDJ600
TROUBLE SHOOTING
n Tear out - this occurs when
cutting across the grain and

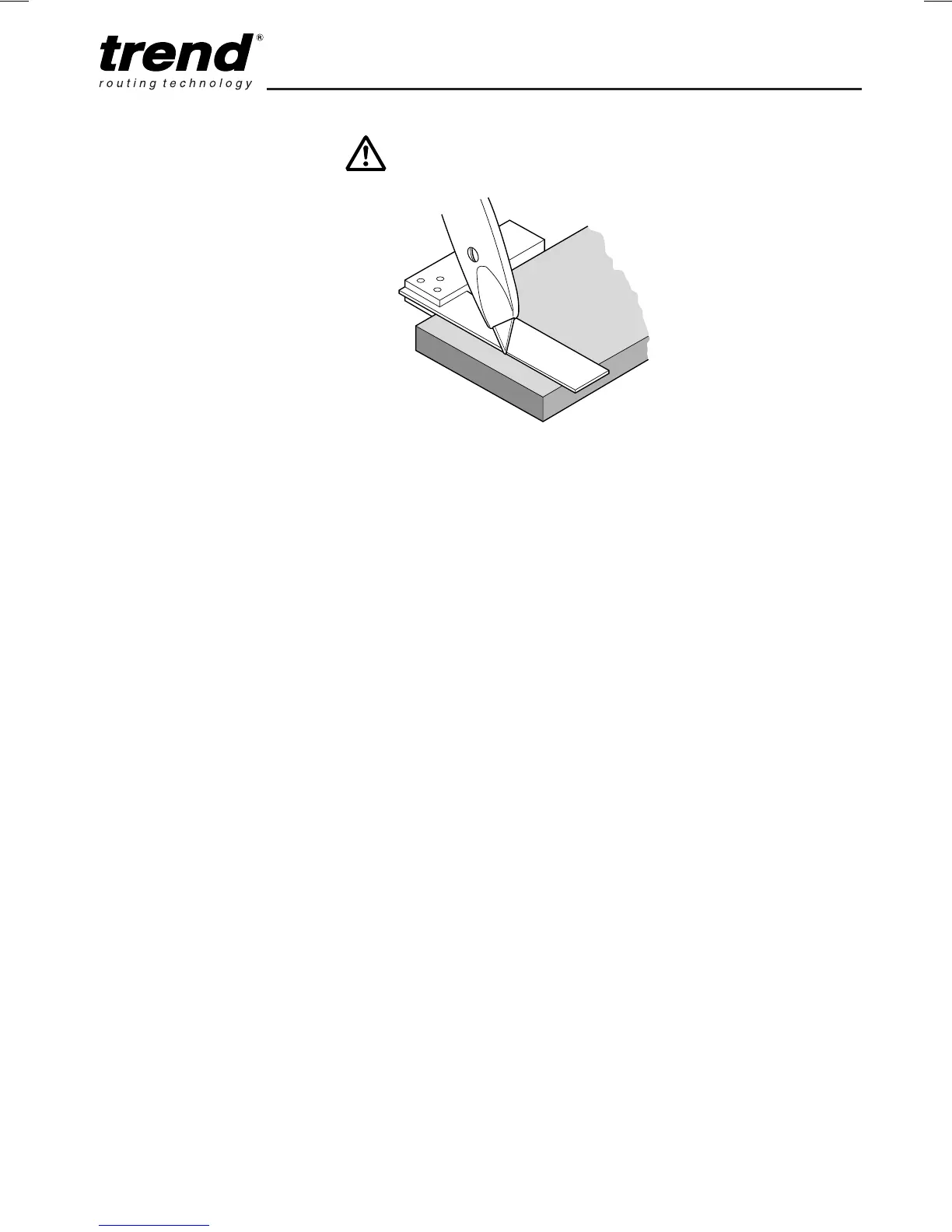

can be overcome by scribing
the ends of the timber with a
marking knife or gauge at the
height of the cutter.
n Lapped Dovetail joint
too loose - increase depth
adjustment of cutter.
n Lapped Dovetail joint
too tight - decrease depth
adjustment of cutter.
n Lapped Dovetail joint too
shallow - move template
comb towards the jig body by
adjusting the lock stop.
n Lapped Dovetail joint too
deep - move template comb
away from the jig body by
adjusting the lock stop.
n Box comb joint too
shallow - increase depth
adjustment of cutter.
n Box comb joint too deep -
decrease depth adjustment of
cutter.
n Through dovetail joint too
loose - move template for pin
away from jig body.
n Through dovetail joint too
tight - move template for pin
towards jig body.
