-36-

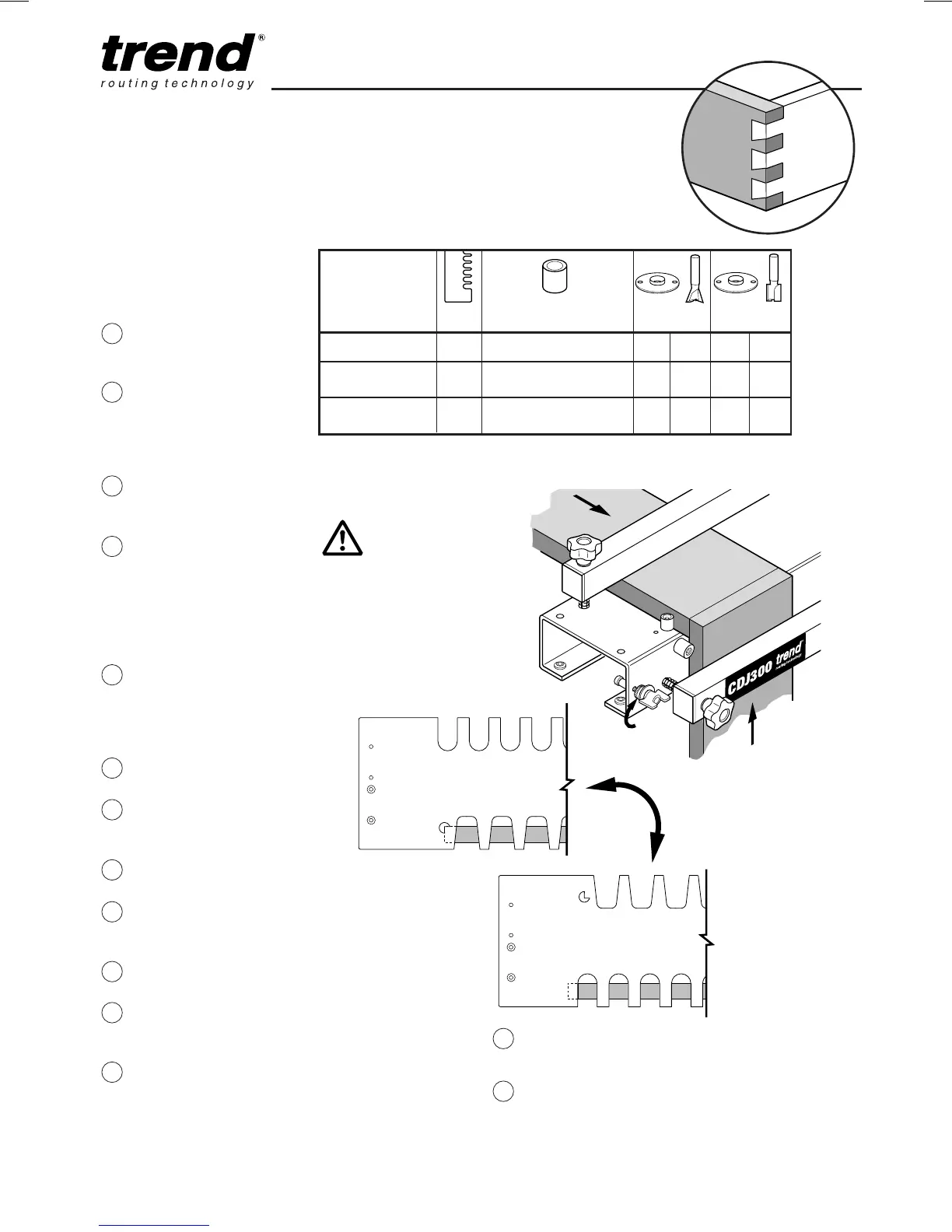

CDJ300 & CDJ600
Each part of joint is routed
separately. Offset is 15.8mm
to centre of tail for 1/2”
dovetail and 25.3mm for 3/4”
dovetail (Drawings show
CDJ300 only.)
Set Up
Fit edge guide into
holes according to
table.
Place one piece of
workpiece into front
clamp bar and push
tight against edge
guide.
Tighten front clamp
bar knobs to hold
workpiece.
Place a waste piece
under top clamp
bar and butt against
workpiece already
fitted. Waste piece
must be 5mm thicker
than workpiece.
With a square ensure
top of front piece of
workpiece is flush
with back piece of
workpiece.
Tighten top clamp bar
knobs.
Fit brackets to template
comb with tapered slot
towards front.
Fit template comb
assembly.
Adjust stop to line up
sight mark on template
to back of workpiece.
Lock stop using hex
key.
Repeat for other side.
Ensure template is
parallel to workpiece.
Loosen screws holding
template comb to
brackets, and remove
comb. Leave brackets
attached to jig.
12
11
10
9
8
7
6
5
4
3
2
1
Comb Size Colour Hole Dia. Dia. Dia. Dia.
CDJ300/05 1/2” 21.9Øx5.6 Brown F2 15.8 12.7 11.1 8
CDJ600/05 1/2” 10Øx10* Silver F2 15.8 12.7 11.1 8
CDJ600/06 3/4” 10Øx10* Silver F2 22 19 15.8 12.7
Flip over
Flip over template
comb with parallel slot
towards front.
Refit template comb to
brackets and tighten
screws.
* From CDJ600 jig
14
13
Dimensions
shown in mm.
Waste piece
must be 5mm
thicker than
workpiece.
THROUGH DOVETAIL TEMPLATE
