TREND CDJ600 - Routing Through Dovetail Tails

-37-
CDJ300 & CDJ600

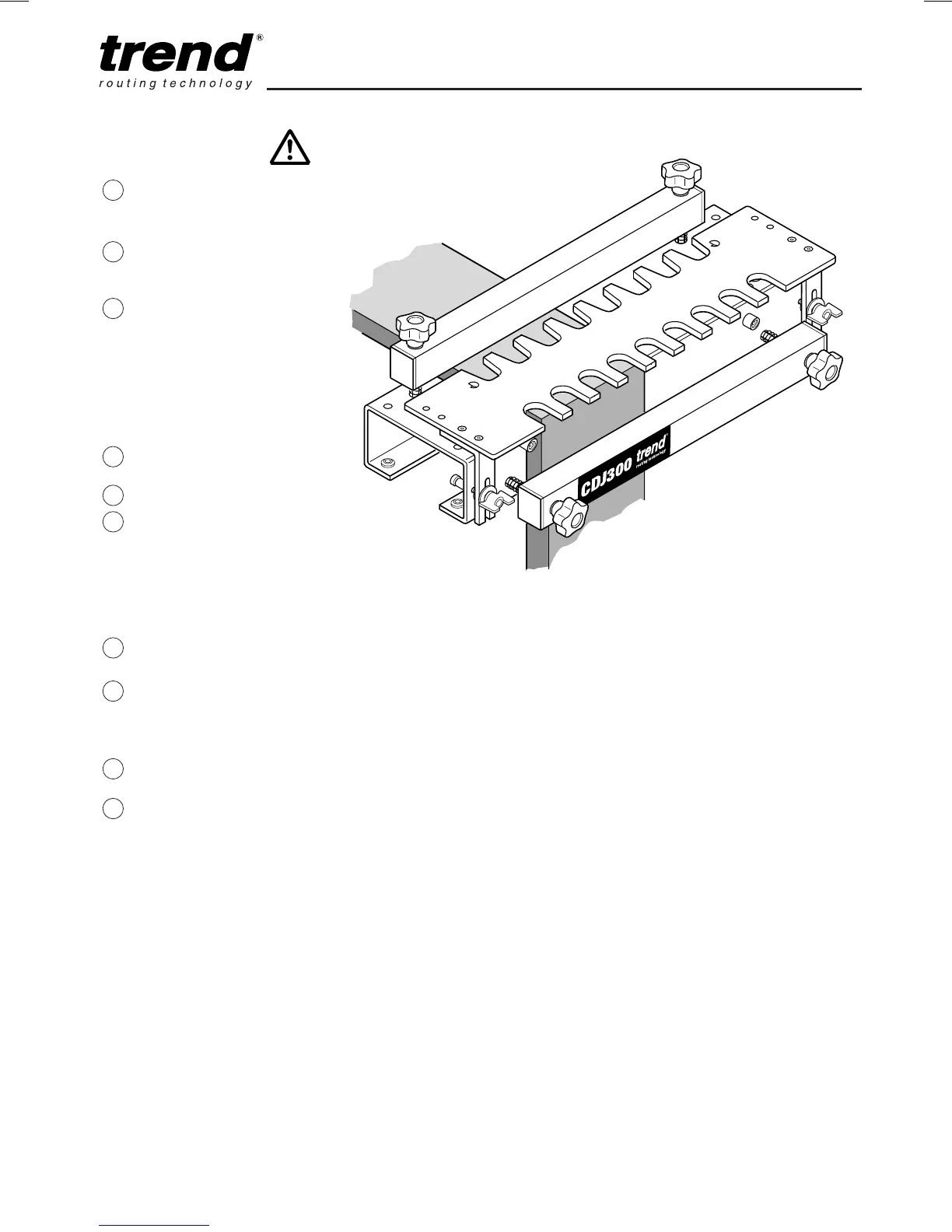

Routing the Tails
Fit guide bush to
router according to
the table.
Fit dovetail cutter to
router according to
the table.
Adjust the height of
the cutter to equal
workpiece thickness.
This can be achieved
by drawing the
thickness of the pin
board onto the tail
board and vice versa.
Place router onto
template comb.
Switch on.
Carefully rout from left
to right following the
guide bush in each of
the slots. Take gentle
back and forth cuts to
rout out the pocket for
the tail.
Switch off router and
remove from jig.
Examine each of the
slots to ensure all the
workpiece has been
cleanly routed.
Remove template
comb assembly.
Remove workpiece
from jig.
