TREND CDJ600 - Page 28

-28-
CDJ300 & CDJ600

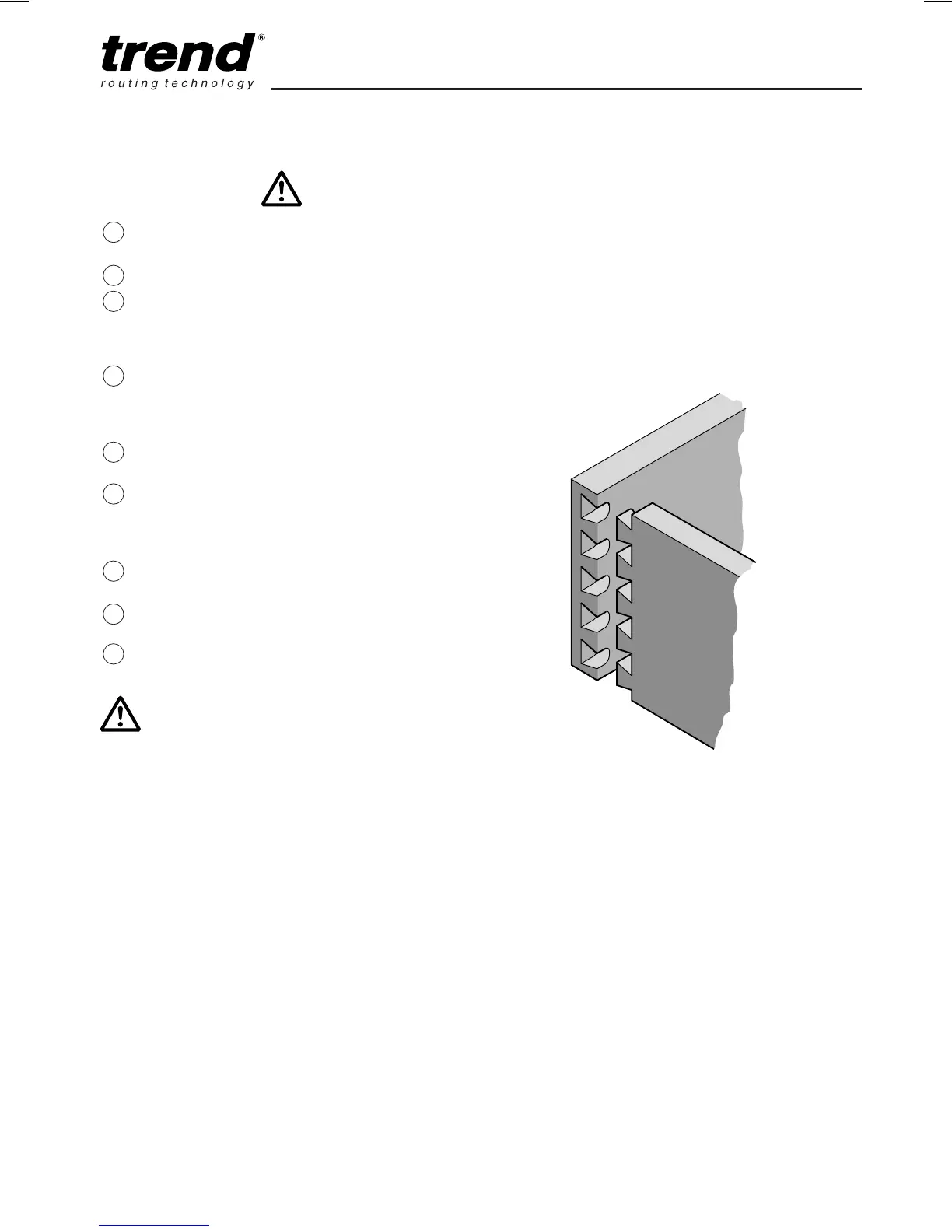

Routing the Joint
(Tail and Pin
Socket)
Place router onto
template comb.
Switch on.
Make one very light
cut from right to left,
cutting only the front
edge.
Carefully rout from
left to right following
the guide bush in the
each of the slots.
Switch off router and
remove from jig.
Examine each of the
slots to ensure all the
workpiece has been
cleanly routed.
Remove template
comb assembly.
Remove workpiece
from jig.
Test fit joint.
The green
28.7mmØ edge
guide will need
to be removed
when routing the
sockets.
15
22
21
20
19
18
17
16
14
