TREND CDJ600 - Page 23

CDJ300 & CDJ600
-23-
15mm
13
12
11
10
9
8
7
Ensure that the cutter
does not foul the
comb brackets before
and after cutting the
joints.
Ensure top of
front workpiece is
flush with the back
workpiece using a
square.

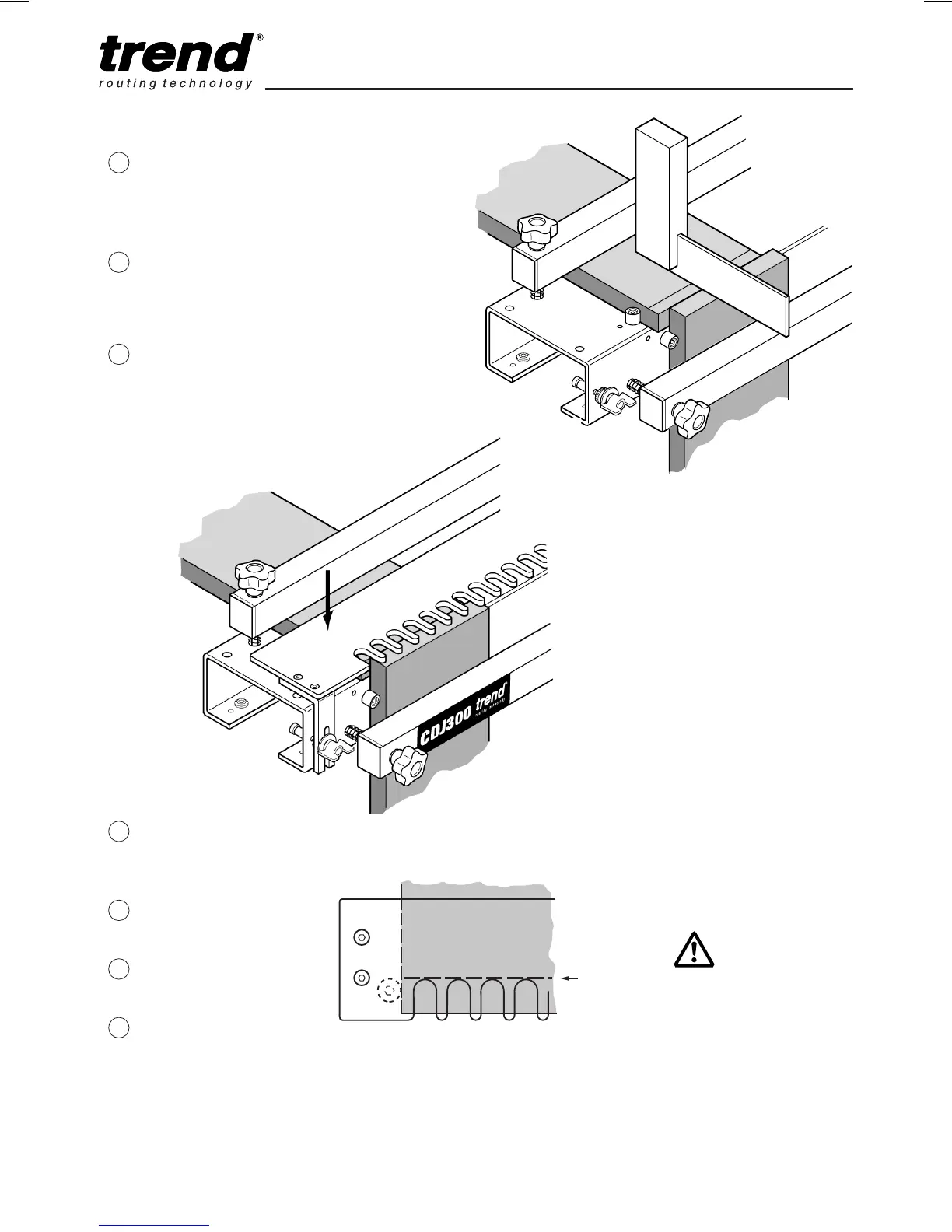

Fit brackets to
template comb with
countersunk holes
uppermost and with
slots to front.
Fit template comb
assembly onto jig.
Adjust comb position
to line up back of
template slots to the
15mm line.
Fit guide bush to
router according to
table.
Fit dovetail cutter into
router according to
table.
Adjust the height of
the cutter according
to table.
