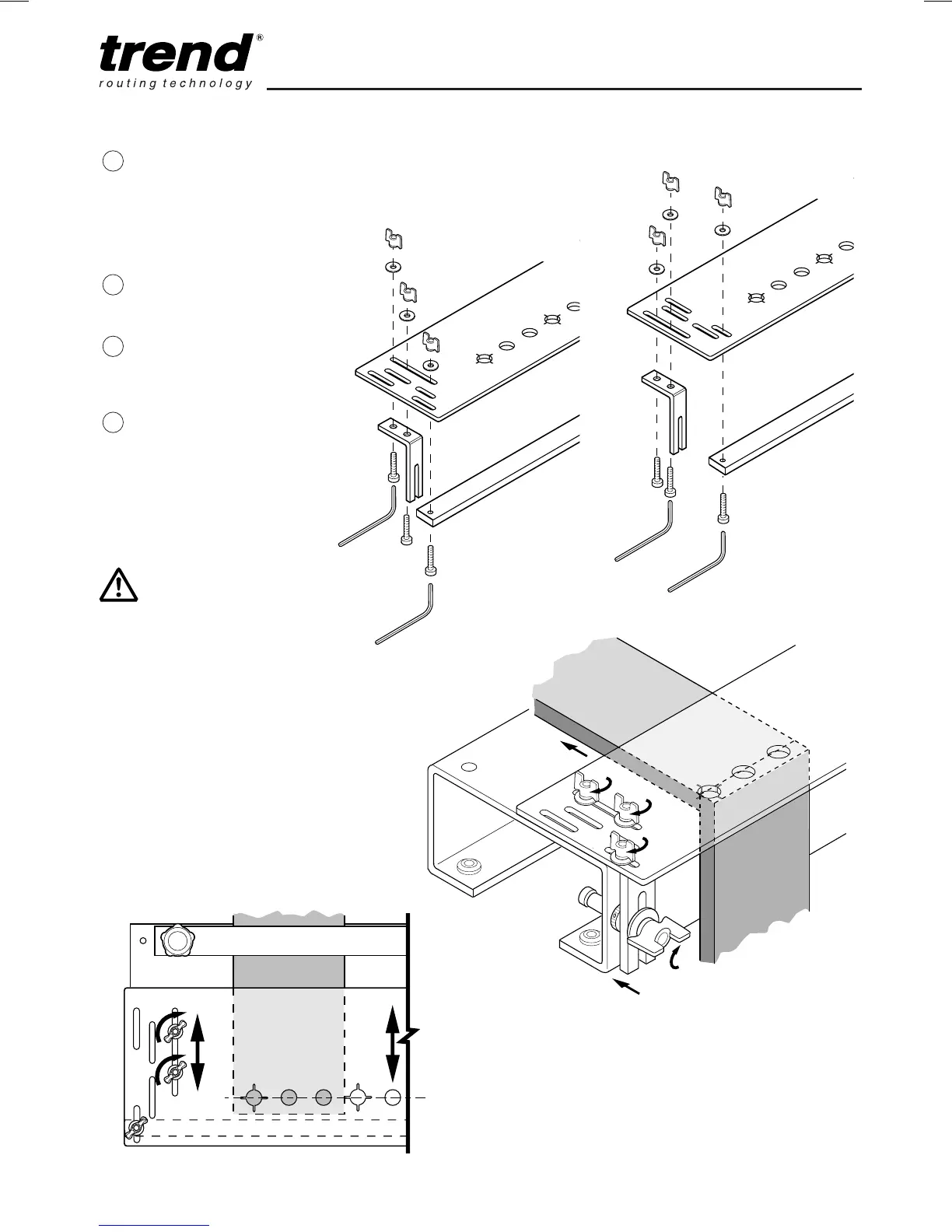

Fit two screws into
fence bar and then fit
assembly to two inner
slots on template
using two washers
and knobs. Leave
knobs loose.
Turn adjustment stops
until they are tight
against jig body.
Fit template comb
assembly onto
jig. Tighten comb
adjustment knobs.
Adjust comb position
so that sight marks
on dowel holes line
up with centre line on
workpiece. Tighten
the four bracket
knobs.
To create symmetrical
dowel joints, it may
be necessary to move
timber away from the
edge guides. A packing
piece must be used.
14
13
12
11
C
L
For CDJ600
For CDJ300
