CDJ300
-7--7-
9.5mm
F1
F2
U1 U2U2 U1
F2 F1

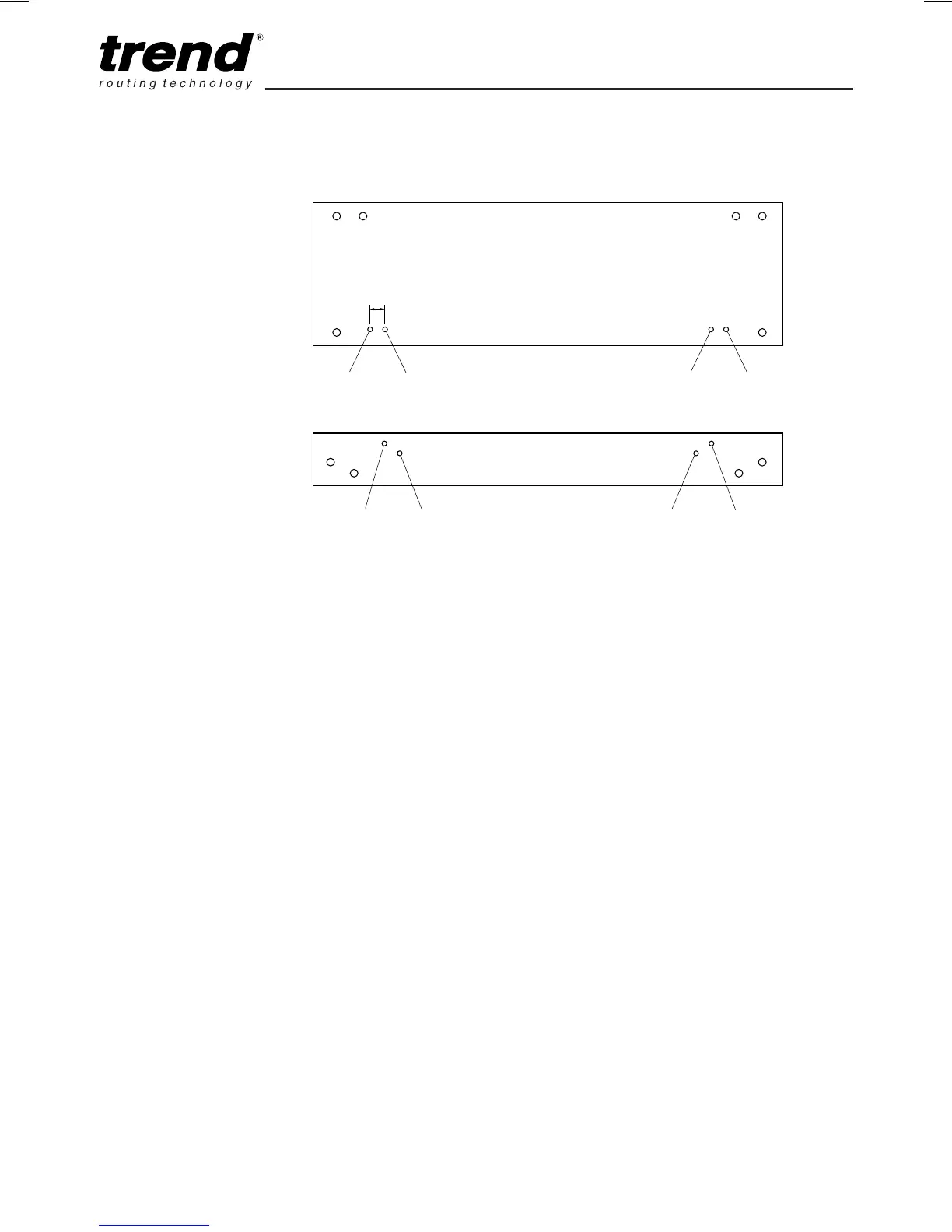

Top view
of jig
Front view
of jig
CDJ300 Template
Edge Guide Holes
The edge guides are used
to position the workpiece
within the jig. There are
four holes in each jig.
The CDJ300 has fixed
edge guides, therefore
these will dictate whether
a whole or part pin will be
cut on the workpiece. This
is called the offset.
User made spacers could
be used to pack out from
both edge guides to
equal the joint and give
symmetrical joint.
The distance between U1
and U2 is 9.5mm. This is
for rebated drawer fronts.
