TREND MT/JIG - Side Angled Tenon

MT/JIG
-17-
B
A
4
4
or







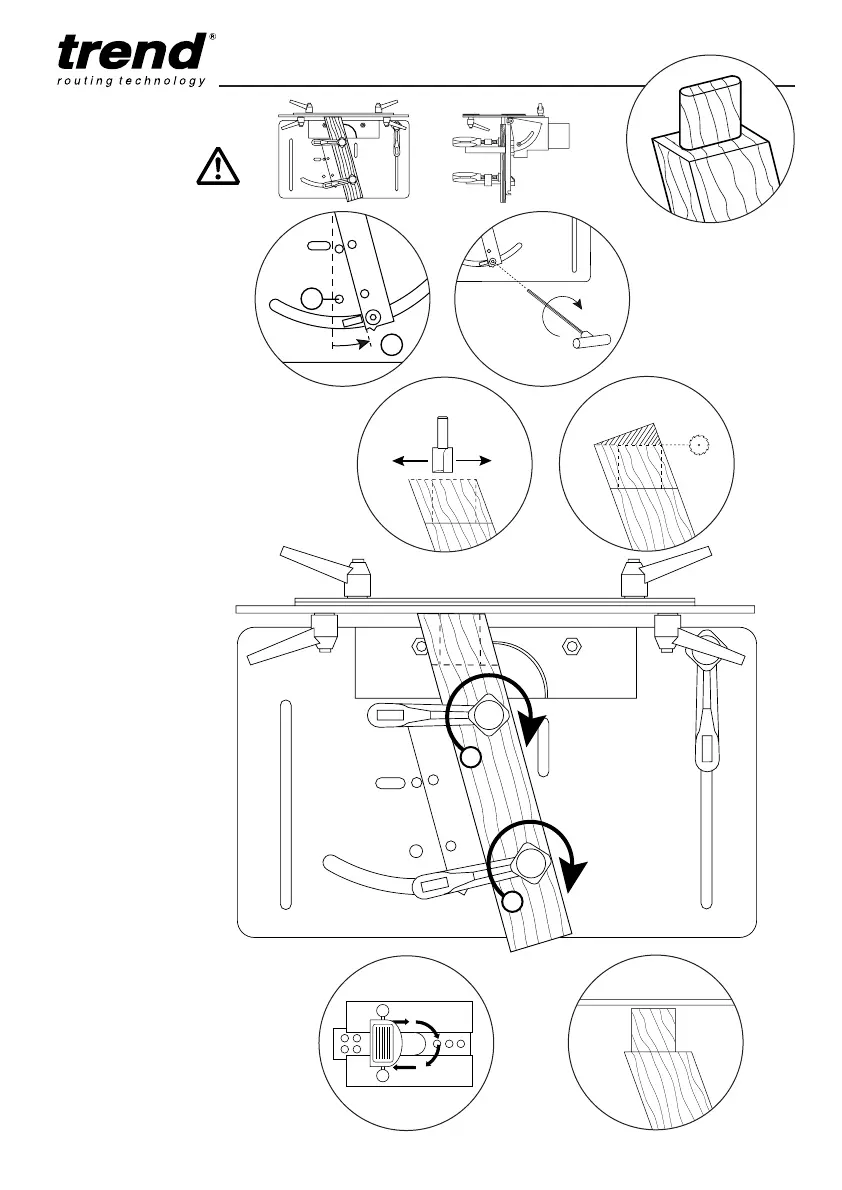

Side Angled
Tenon
 Remove bolt A if
fitted. Undo bolt
B . Remove the
lower F clamp
head. Adjust the
position of the
vertical guide as
required.
 Tighten the bolt B
with the hex key
and refit the F
clamp head.
 Rout the end of
the timber parallel
to the top plate or
cut it at the
appropriate angle
on a snip-off saw.
 Fit and clamp the
timber at the
correct height
using the set-up
bar. (See p.13)
Set the templates
to the required
tenon length.
(See p.14)
Set the top plate
to the centre line.
(See p.15)
 Set the depth of
cut and rout in
increasing depths
to complete the
tenon. (See p.16)
