TREND MT/JIG - Assembly of the Top Plate

MT/JIG
-8-

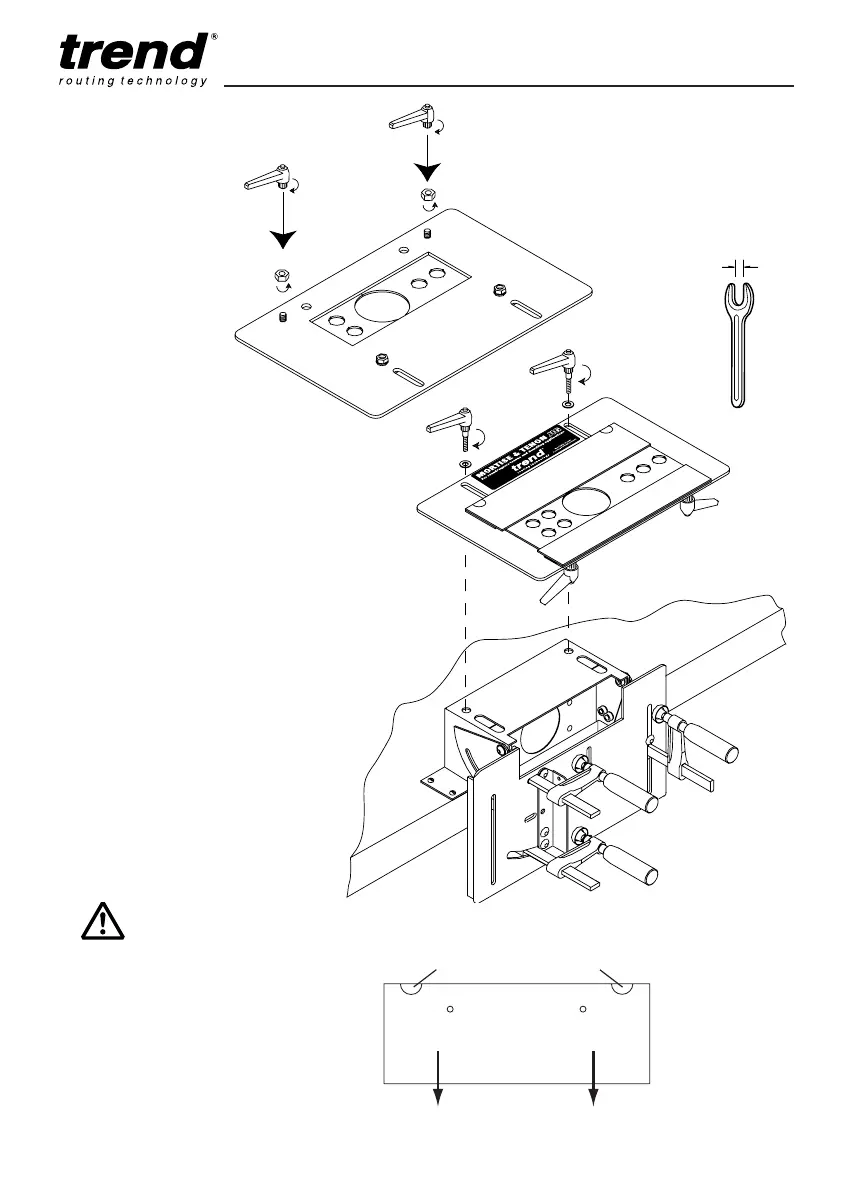

Assembly of
the Top Plate
10mm
 Remove the
transit nuts with a
10mm spanner
and discard.
 Fit the two female
adjustable levers.
If fitting the
optional dust
extraction kit refer
to page 11.
 Turn the top plate
over so that it’s
facing up and
secure the top
plate with the two
male adjustable
levers and
washers.
To adjust tightness of the
templates undo the nuts on
the underside of the top
plate. Holding the plate
clamping piece by the
thumb notches, gently tap
the plate to reset. Tighten
the nuts to secure.
Hold
Hold
