TREND MT/JIG - Assembly & Adjustment

ASSEMBLY &
ADJUSTMENT
x4
x4

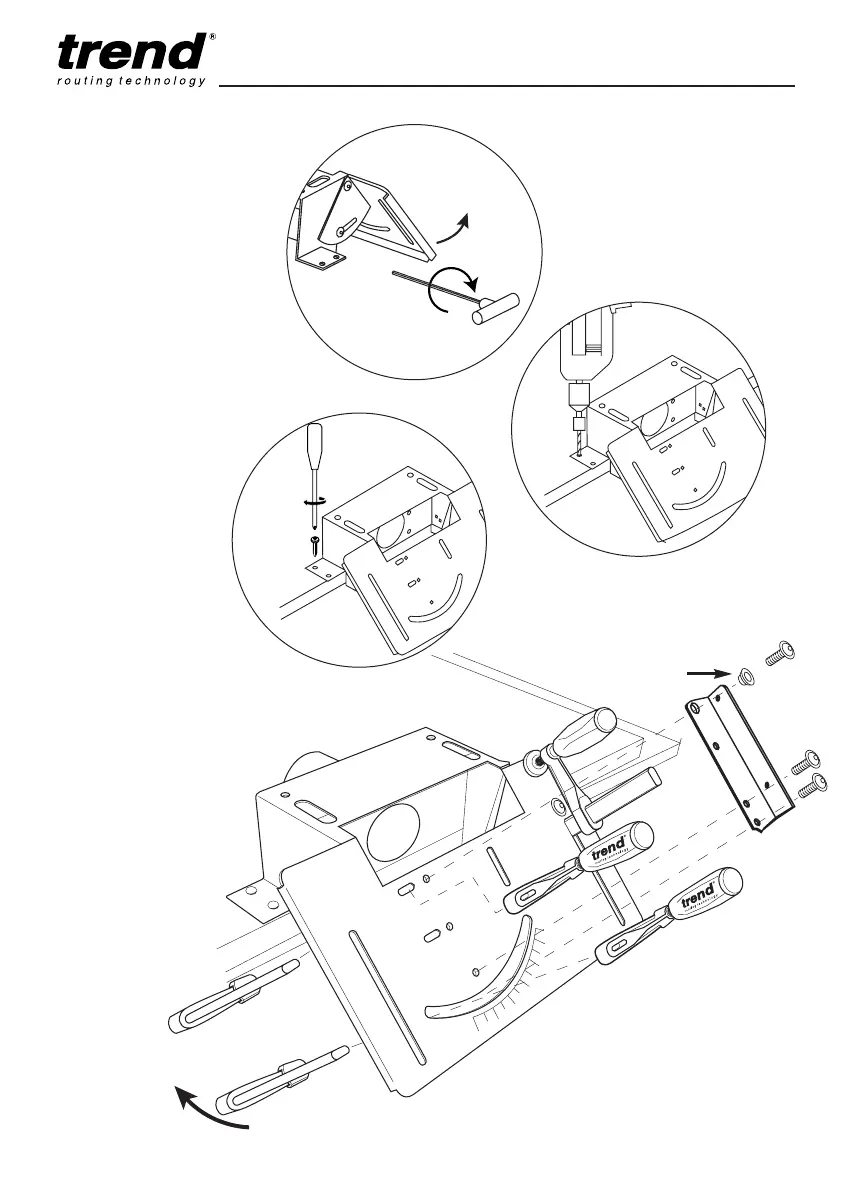

 Secure the tilting
back plate in its
45° position with
the two hex
screws.
 Position the main
body on the edge
of the workbench
or workboard and
drill four 3mm/
1
⁄
8 "
holes 15mm
deep.
 Secure the jig
with the 4 self-
tapping screws
with a No.2 Pozi
screw driver.
 Fit the three F
clamps and
vertical guide as
shown. Noting
that the longer
hex screw without
a flange is used in
conjunction with
the pivot bush.
 Return the tilting
back plate to the
0° position and
lock.
Pivot bush
MT/JIG
