TREND MT/JIG - Description of Parts

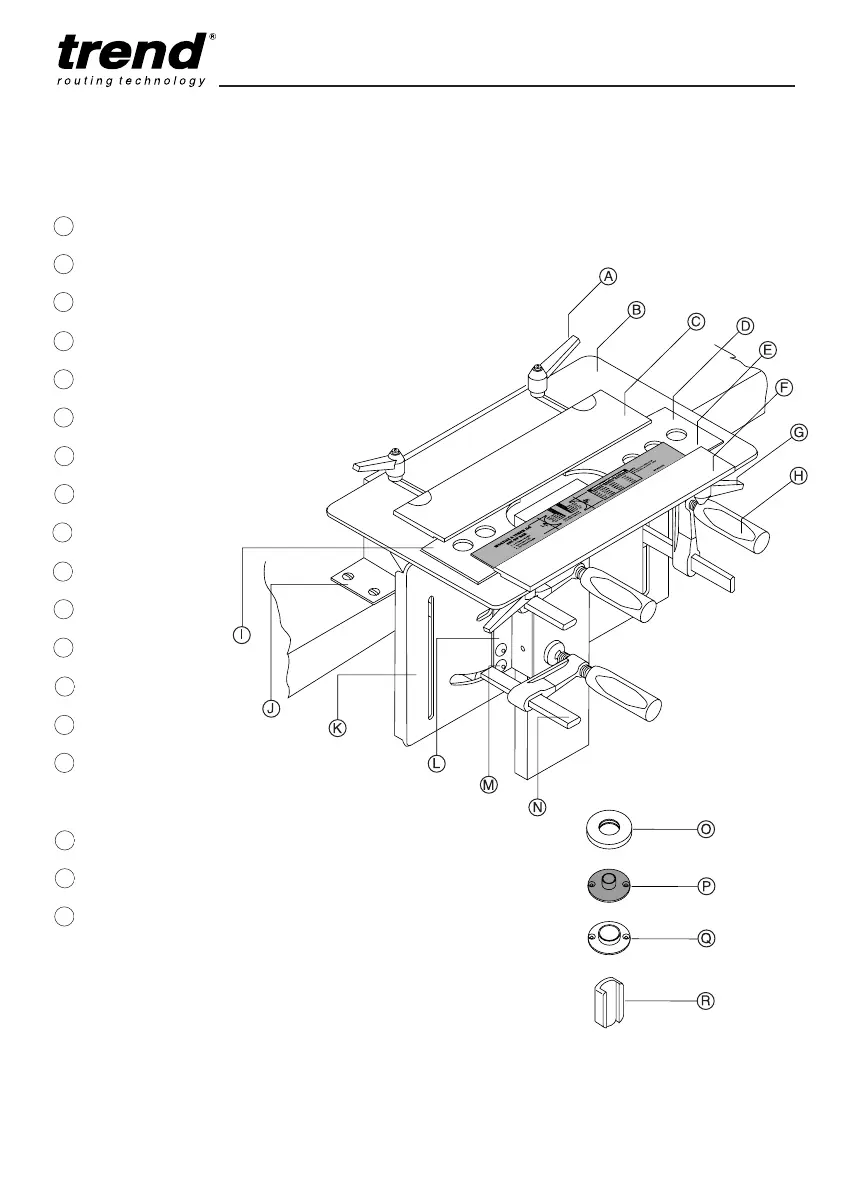

DESCRIPTION
OF PARTS
A Female adjustable lever
B Top plate assembly
C Template clamp (back)
D Long template
E Set-up bar
F Template clamp (front)
G Male adjustable lever
H F clamp handle
I Short template
J Main body
K Tilting back plate
L Vertical guide
M Flanged machine screw
N F clamp bar
O Collar
Imperial 25.4mm - 54mm
Metric 30mm - 54mm
P Plastic guide bushes
Q Metal guide bush
R F clamp cap
MT/JIG
-5-
