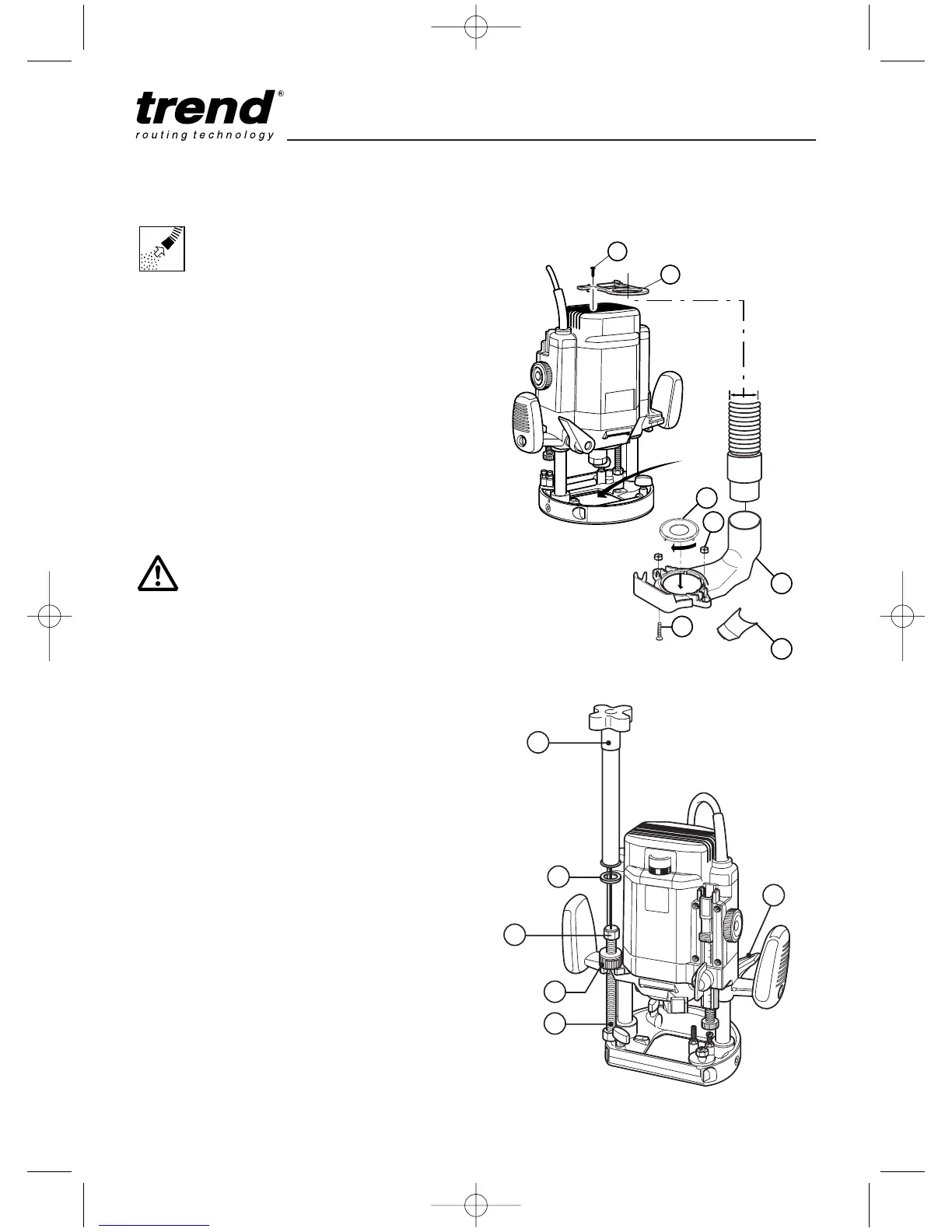

Fitting the T10 Fine Height Adjuster
Optional Accessory Ref. FHA/003
I Plunge router and lock lever (6) down.
I Remove hex cap (5) nut from threaded stud
(3), using a 19mm A/F spanner.
I Remove knurled ring nut (4) from threaded
stud (3).
I Place washer (2) on threaded stud.
I Thread on main adjuster rod (1) for at
least 25mm of thread.
Fitting and Removing T10
Dust Extractor Spout
The dust extraction spout consists of a main
section (1) with underside clip (7), an insert cover
(2), top clip (5) with screw (6), two main screws
(3) & two nuts (4).
I Check underside clip (7) is fitted into main
section. Slide the insert cover (2) onto the
main section if required (1) and click into
place.
I Fit nuts (4) into main body. Place spout into
base of router and secure with two screws (3).
I Connect a dust extractor hose to the dust
extraction spout (1).
I Loosen the screw in the top of the router and
fit the top clip (5) as shown using screw (6).
