TREND T10 - Fitting and Removing Router Cutters; Fitting Collet, Nut, and Cutter Sequence

T10 & T11
-6--6-
4
R
D
B
C
P
Q
I
H
A
E
F
X
N
O
U
Y
AE
Z
W
V
M L
J
K
G
AD
AC
AA
AB
S
T
AF
AH
AG

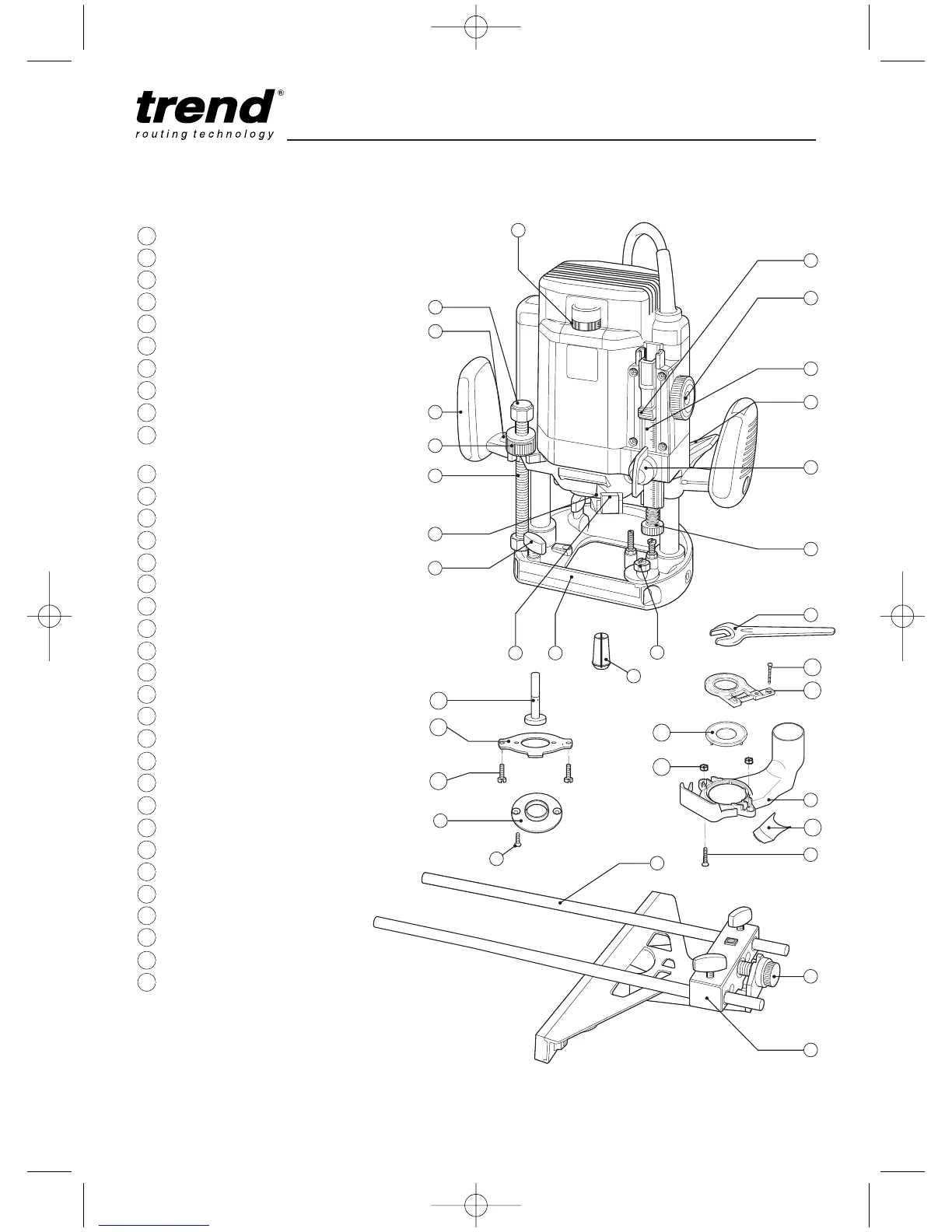

DESCRIPTION OF PARTS T10
A Plunge locking lever
B Variable speed control dial
C Handle
D Switch
E Depth stop locking knob
F Depth stop micro adjuster
G Depth stop height adjuster dial
H Depth stop scale
I Depth stop lens
J Thumb knob with anti-vibration spring
for side fence
K Collet nut
L Spindle lock
M Base
N 3-way turret stop
O Collet
P Knurled nut
Q Threaded spindle
R Threaded spindle cap nut
S Template guide bush dia. 30mm
T Template guide fixing screw
U Fence rods dia. 10mm x 360mm
V Parallel side fence
W Parallel side fence micro adjuster knob
X Spanner (22mm A/F)
Y Dust spout 35mm dia.
Z Dust spout fixing screws
AA Dust spout fixing nut
AB Dust spout insert
AC Dust spout top clip
AD Dust spout top clip screw
AE Dust Spout underside clip
AF Template guide bush line-up pin
AG Inner plate fixing screws
AH Inner plate
