T10 & T11
-19-
Beam Trammel Routing
Optional Accessory
Ref. BEAM/002

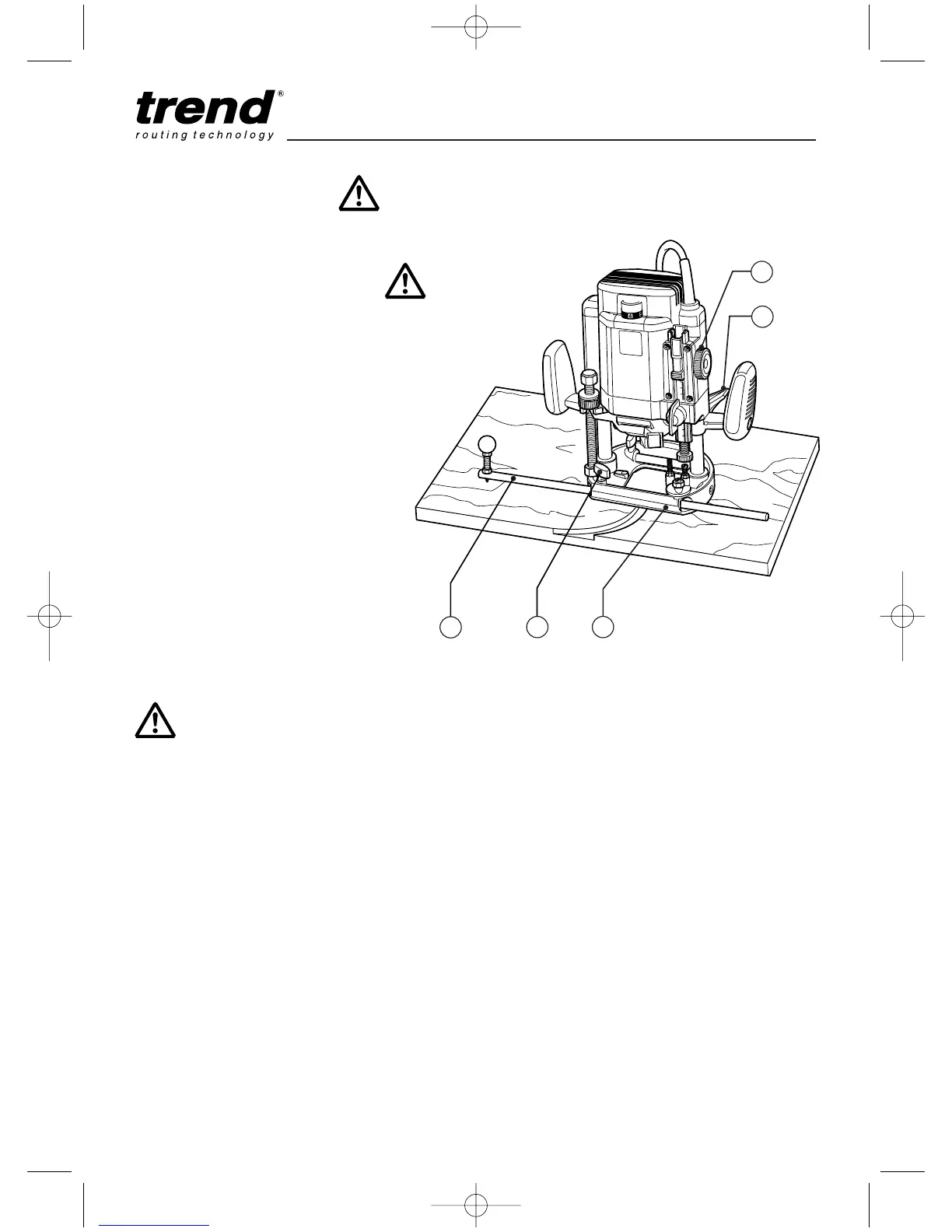

Cutting Arcs with the Router
I Fit the beam trammel (1) to the router base (3).
I Place the machine on the workpiece and
ensure pin on beam trammel will pierce the
workpiece surface.
I Measure the radius and fix the point of the
beam trammel in position.
I Fasten the beam trammel (1) in the routing
base (3) with the thumb knob (4).
I Set the cutting depth using the depth
stop dial (2).
I Switch on the machine.
I After releasing the plunge locking lever (5),
lower the machine slowly as far as the depth
stop and lock it there.
I Cut grooves, rebates etc. at a steady rate
of feed, in an anti-clockwise direction.
I When finished, release plunge locking
lever (5) to raise the machine.
I Switch off the machine.
Ensure the beam trammel point
does not move, and that the cable
will not foul.
