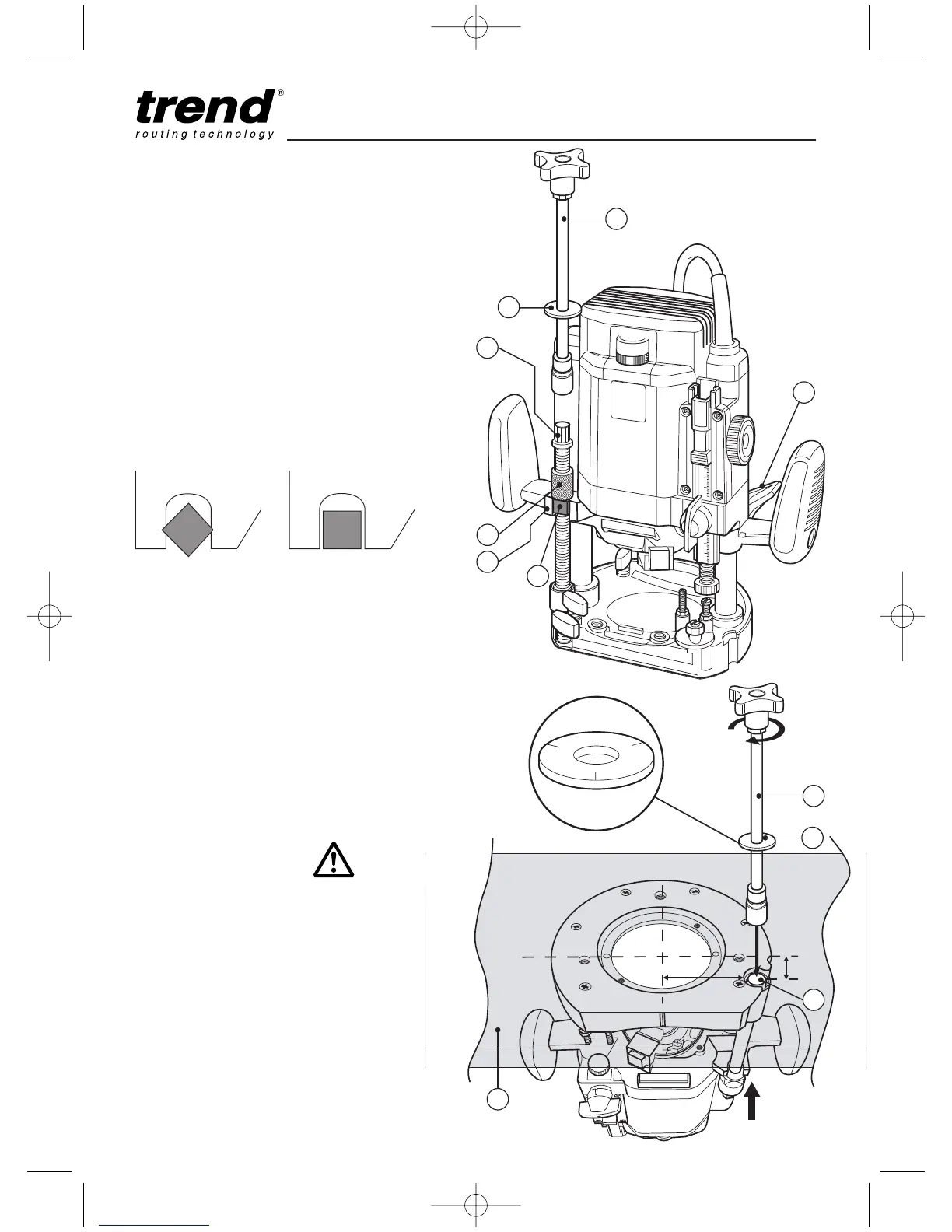

Fitting the T11 Fine Height Adjuster
The fine height adjuster for the T11 can be used
portably or when the router is held inverted in a
table. If a suitable size access hole is drilled into
the router table top, the height adjustment can
also be adjusted from above the table top.
To set up for fine height adjustment:
I Plunge router and lock lever down (1).
I Rotate the knurled nut (2) down the stud until it
is close to the router casting forks (3).
I Align the base of the knurled nut (4) so that it
will locate in the forks (3).
I Release plunge locking lever (1).
For Portable Use
I Place the fine height adjuster handle (5) onto
the top threaded spindle hex nut (6).
I Rotate handle clockwise to raise motor body
and reduce cutter depth.
I Rotate handle anti-clockwise to lower motor
body and increase cutter depth.
One revolution corresponds to 1.5mm. The
height adjuster handle dial (7) can be reset to
zero.
For Router Table Use
I Ensure router is fitted into the router table (10),
see opposite page.
I Place fine height adjuster handle (5) through
router table cutter hole onto bottom threaded
spindle hex nut (9).
I Rotate handle clockwise to raise motor body
and raise cutter height.
I Rotate handle anti-clockwise to lower motor
body and lower cutter height.
One revolution corresponds to 1.5mm. The
height adjuster handle dial (7) can be reset to
zero.
