Modification of User Router Table for
T11 Fine Height Adjuster
To use fine height adjuster in table mode a 20mm
diameter hole is required to be drilled into the router
table top. To position the hole it is advisable to
remove the phenolic base slider of the T11 router
and use it as a template.
I Mark the hole for the handle height adjuster in
the table top using the phenolic base slider as a
template.
I Remove the phenolic base slider.
I Mark with a punch the centre of the hole.
I Drill a pilot hole in the centre.
I Enlarge the hole to 20mm.
I Remove any burrs.
A template is provided on page 28.

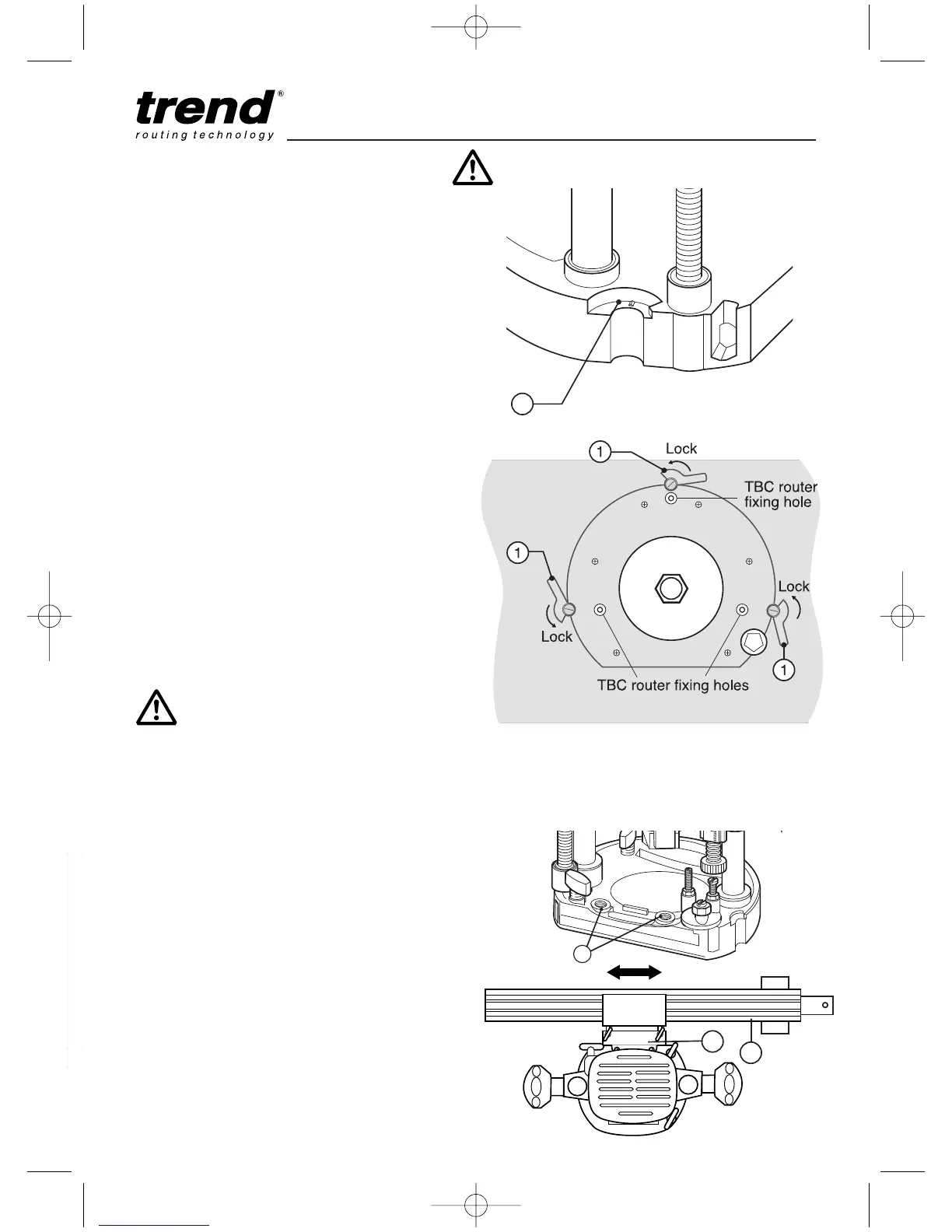

T11 Quick Release Fixing Kit
Optional Accessory Ref. T11/JT/KIT
The T11 Quick Release Fixing Kit uses three cams
(1) to lock the router into a router table. The kit can
be retro-fitted to user-made tables by drilling
suitable size holes in a set pattern into the table
surface. The kit comprises three cams, three
bosses, three springs and three nut & bolt
assemblies. The kit is supplied with instructions for
drilling and using the cams. The cams locate into
the three apertures (2) in the base of the T11 router.
When using large panel raiser cutters,
making deeps or if the router is to be
used inverted for long periods, the router
should also be secured using three M6
machine screws into the TBC router
fixing holes.
T11 Clamp Guide System Optional
Accessory Ref. T11/CGS/KIT
The T11 has two M6 tapped holes in the upper face
of the router base (3), which will accept the Clamp
Guide System accessory (4). The accessory is
used with the Clamp Guide System clamps (5) and
is used to create parallel grooves and trenches.
