Connecting units – Direct connection

Note that direct connection hardware configurations require the

Connection type field in the service tool‟s Admin/IP Settings/Setup

window to be set to „Direct‟.

1xMain – 1xSub

1. Insert SFP copper transceivers into the “Link 1“sockets on the

main headend and subunit headend.

2. Route a RJ45 Cat5e or better cable from the "Link 1" socket on the

main unit to the "Link 1" socket on subunit 1.

3. Set the "ID switch" on the main headend and subunit headend to

the following:

 Main unit = "3"

 Subunit = "1"

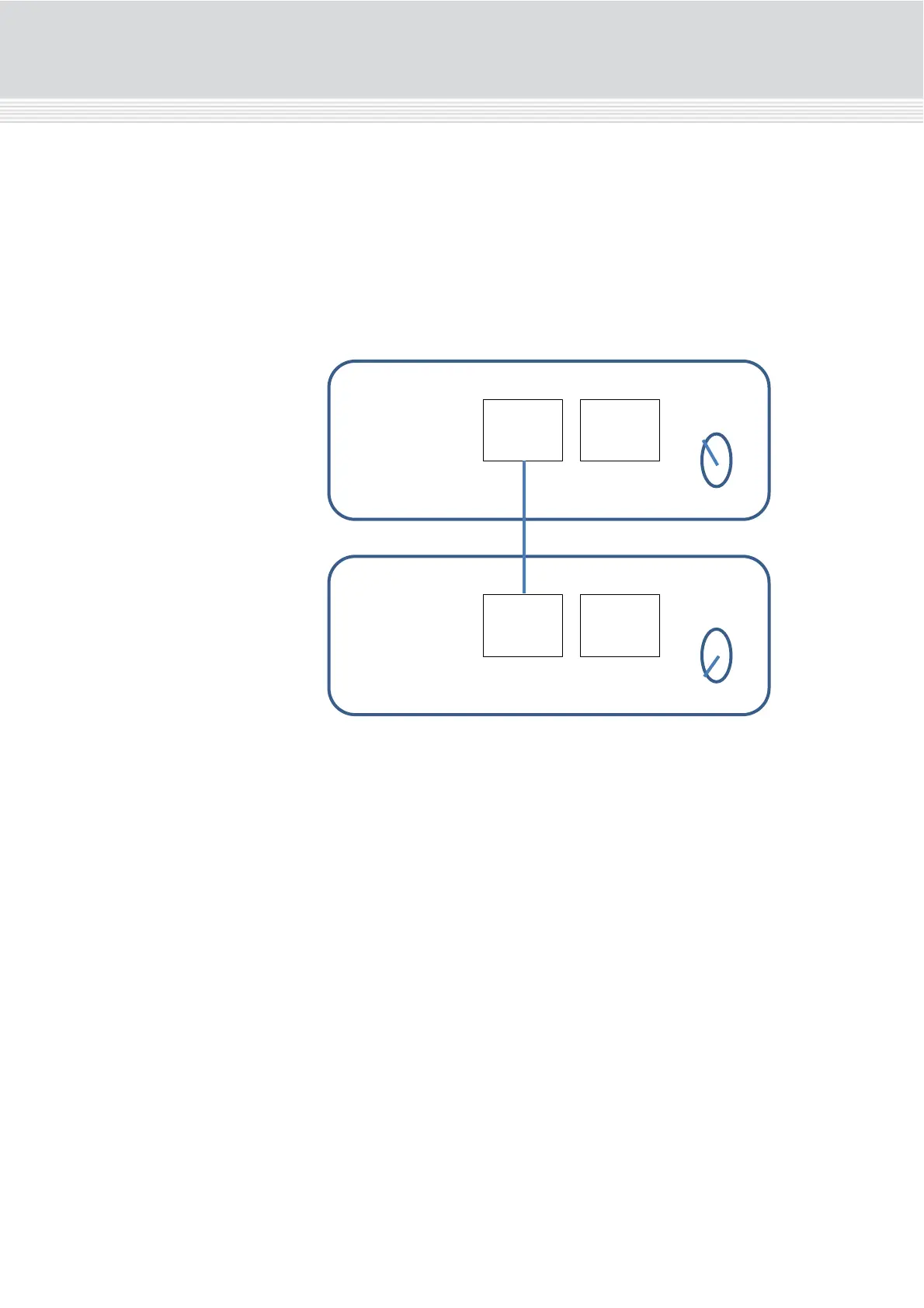

Link1 Link2

Main Unit

Subunit
