Triax TDX User Manual

Input Modules
17
Note:
Ensure that enough cable is available for relocating input modules to
alternate input slots at a later date.
Looping cables

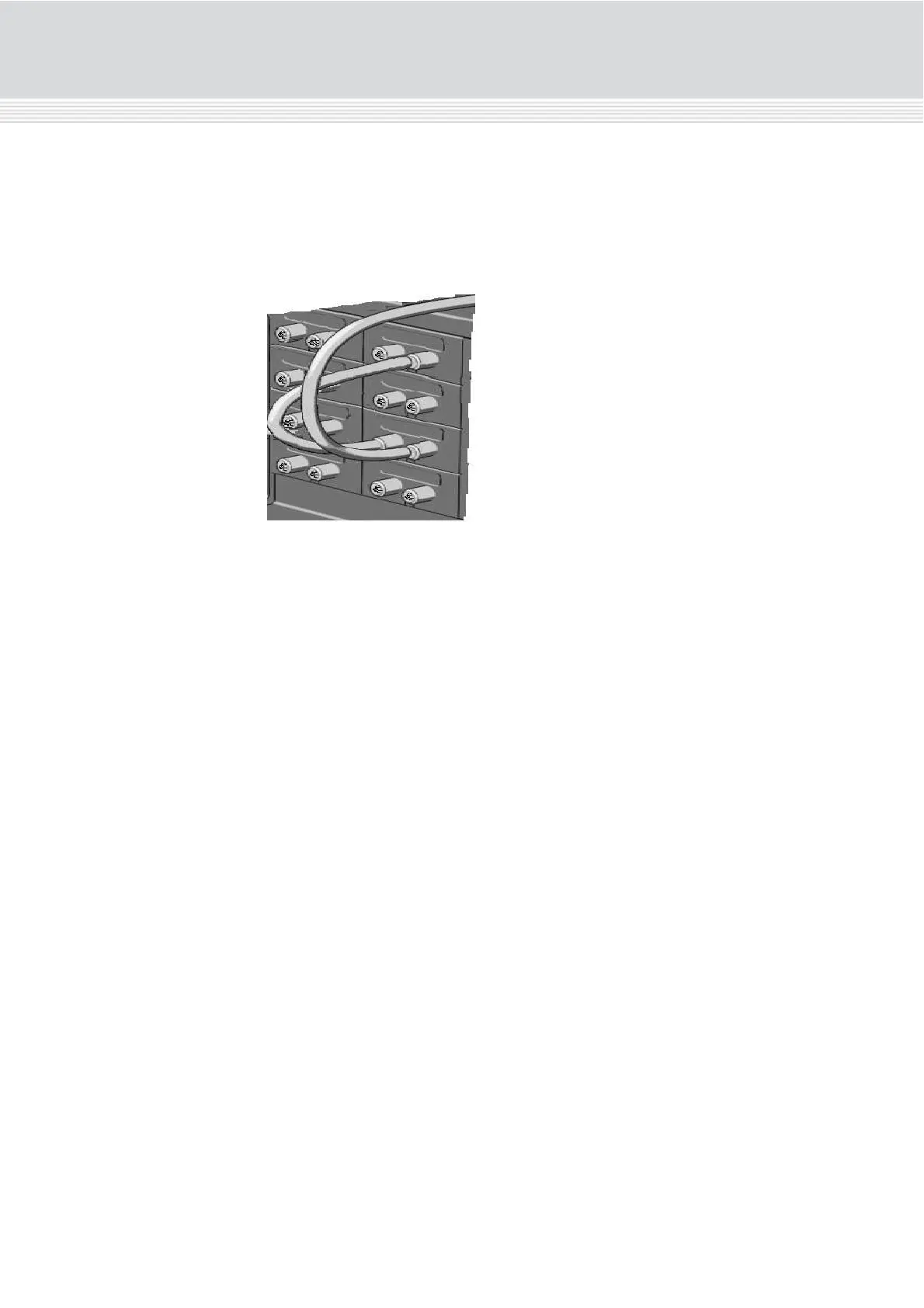

DVB-S/S2 signals can be looped
between input modules:
1. Attach the signal cable to the IN
port on one DVB-S/S2 input
module.
2. Attach a loop cable to the OUT
port on the same DVB-S/S2 input
module.
3. Attach the other end of the loop
cable to the IN port on another
DVB-S/S2 input module.*
Removing input
modules
Input modules are removed from the headend by:
1. Remove the signal cable from the module.
2. Prize the module out of the headend with a flathead
screwdriver.
3. Pull the module out of the headend.
Note:
Modules can be removed while the headend is in operation.
Moving input modules
1. Prize the module out of the headend with a flathead
screwdriver.
2. Pull the module out of the headend.
3. Insert the module in a new input slot.
Note:
Modules can be moved while the headend is in operation.
