Service Tool
24

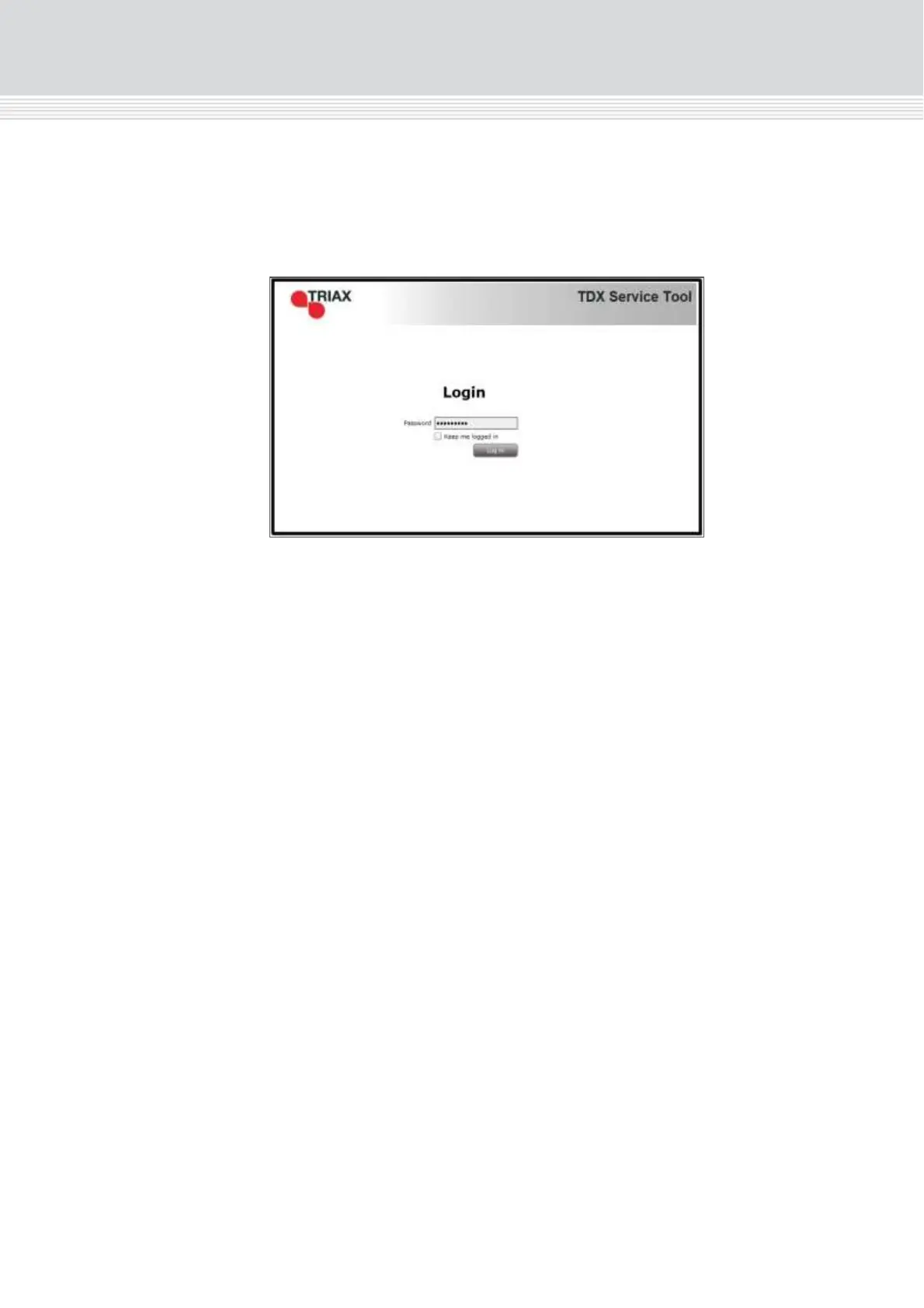

Starting Service tool
1.
Open a web browser window.
2.
Enter
‘http://192.168.0.
100‟
in the web address field.
3.
Press
Enter
.
4.
Enter the password.
5.
Press the
Log in
button.
Note
:
Password = „
triax1234’
when the service tool is opened on
each
headend for the first time.
The
Keep me logged in
checkbox overrides
the system‟s automatic
tim
e out function, which is activated after 20 minute‟s inactiv
it
y.
23
25
Table of Contents
Default Chapter
2
Table of Contents
2
Safety Precautions
4
Environment
4
Power Supply
4
Weight
4
Earth
4
Disposal
4
Introduction
5
Box Contents
5
Headend Overview
6
Exterior
6
Interior
7
Single Headend Installation
8
Mounting
8
Ventilation Requirements
8
Power/Earth
9
ID Switch
9
Multi Headend Installation
10
Ventilation Requirements
10
Horizontal Installation
10
Vertical Installation
10
Connecting Units - Direct Connection
11
1Xmain - 1Xsub
11
1Xmain - 2Xsub
12
Rf Output
13
Power
13
Connecting Units - Switch Connection
13
Multi Headend Installation - Fiber Optic
14
Resetting Ip Address
14
Input Modules
15
Input Module Types
15
Inserting Input Modules
16
Attaching Cables
16
Looping Cables
17
Removing Input Modules
17
Moving Input Modules
17
Output Modules
18
Output Module Types
18
Inserting Output Module
19
Removing Output Module
19
Auxiliary Modules
19
Module Status - LED
19
System Monitoring
20
Leds
20
Service Tool
23
System Requirements
23
Computer Minimum Requirements
23
Static IP Address
23
Physical Connection to Headend
23
Starting Service Tool
24
Overview
25
Administration
27
Language
27
Location
28
Security
30
Licences
31
Ip Addresses
32
Snmp Settings
35
Rebooting
36
Viewing System Log
37
Firmware
39
Updating
39
Cleaning up
42
System Information
43
Viewing System Information
43
Duplicated Pids
44
Managing Configuration Files
45
Creating
45
Activating
45
Deleting
45
Saving
45
Uploading
46
Ip Input Configurations
48
Creating
49
Modifying
53
Deleting
53
Ip Output Configurations
54
Creating
54
License Limitations
57
Modifying
57
Deleting
57
Eit/Epg Output
58
Eit - Every Ip Service
58
Eit - Barker Channel
59
Snmp Traps
61
