IP Output Configurations
60
Note:
The IP address used for the barker channel must not conflict with any
of the IP addresses used for service distributi
on.

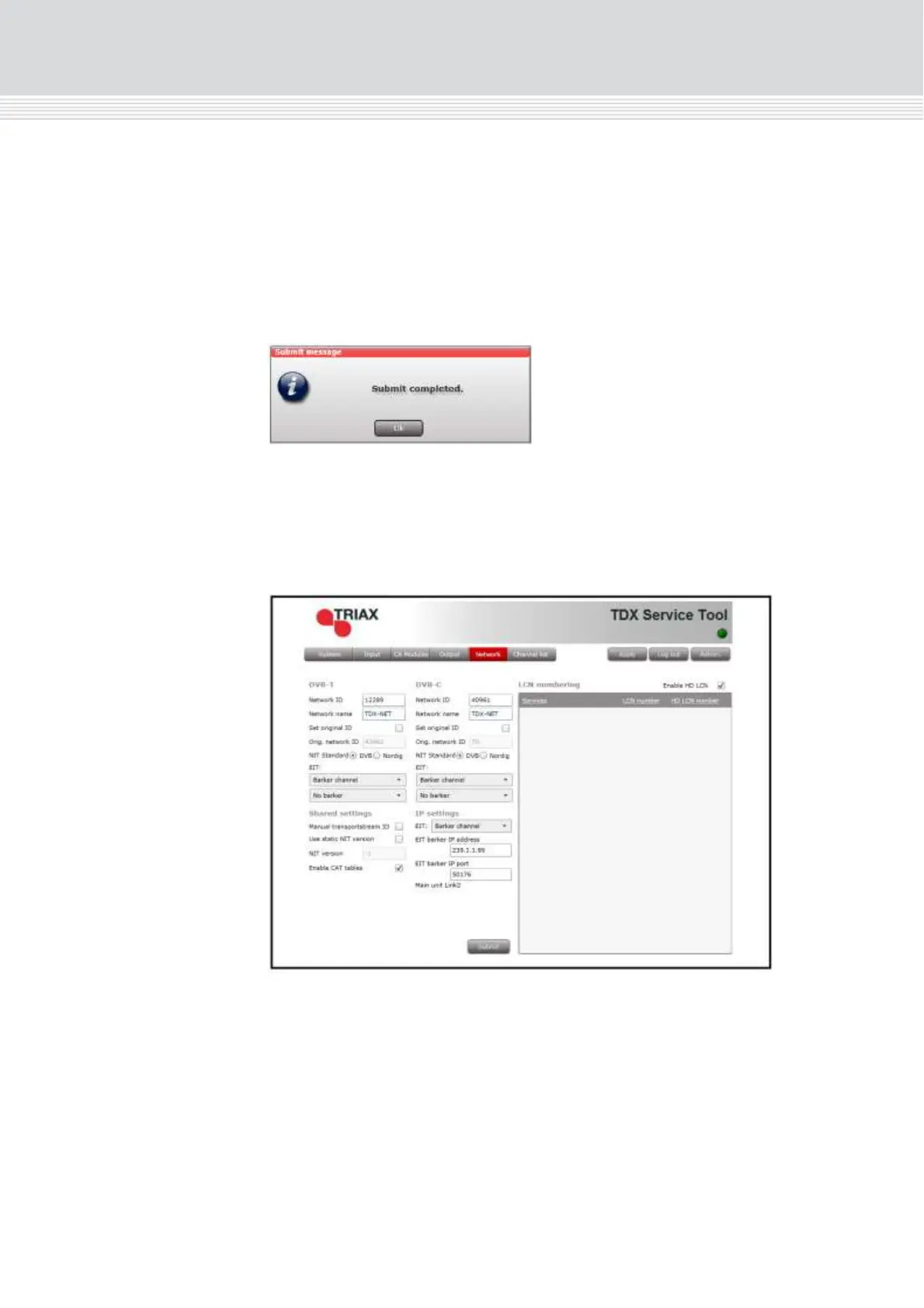

A message window is displayed confirming that the configuration has
been submitted.
7.
Press the
Apply
button.
The
Network
window now contains a single line of information
stating
which unit and socket is used by the EIT barker channel.
