4.1.4 Cleaning System
The nanoFlu is equipped with innovative antifouling technology to prevent pollution and dirt from attaching to
the optical window: nano-coated window in combination with compressed-air cleaning.

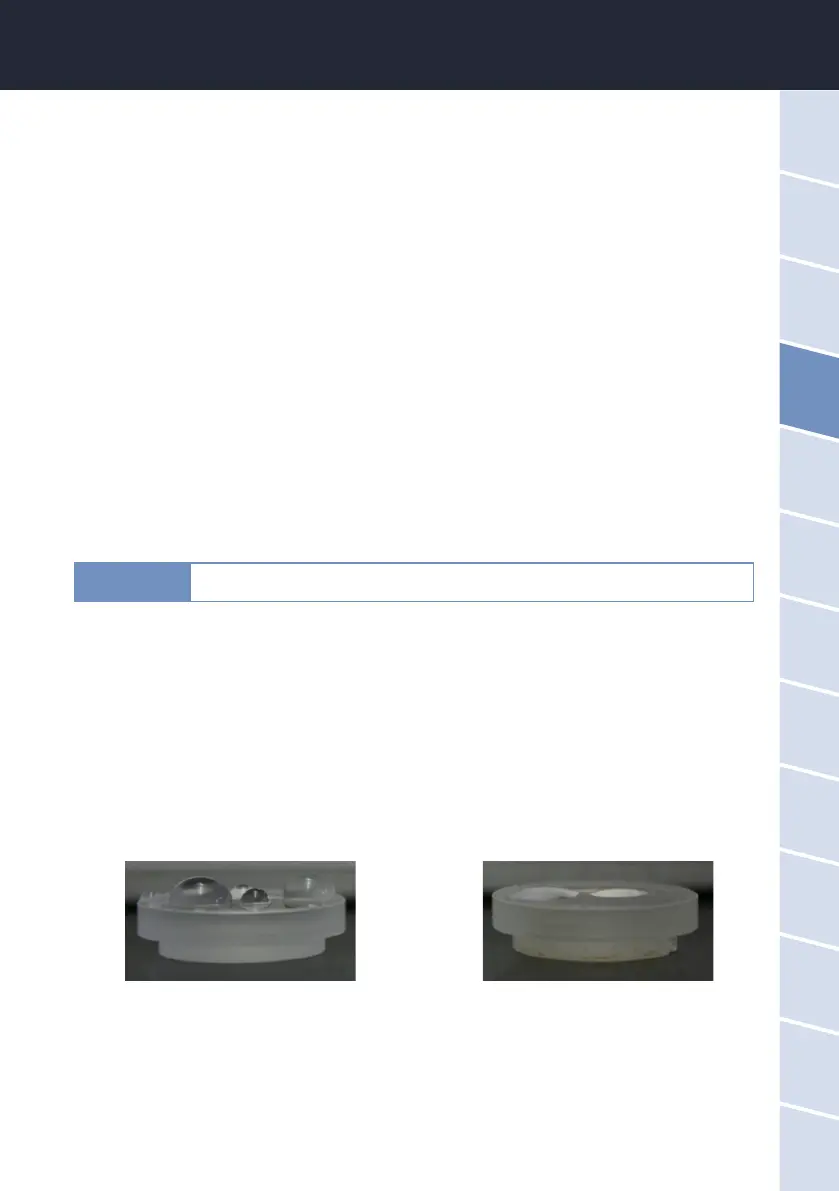

Nano-coating
All optical windows from TriOS are treated with a nano-coating.
Window with nano-coating
Window without nano-coating
Wetting of the surface on the coated glass is signicantly lower. The nanocoating greatly helps reduce the
contamination of the optical windows. In combination with the compressed-air cleaning, the windows are kept
clean for long periods of time and thus reduce the amount of cleaning necessary.
4.1.3 FlowCell / Bypass
With the optional ow cell, the nanoFlu can be installed as a bypass. For this purpose you need the nanoFlu
FlowCell (Art.No.: 10A090000) and a nanoFlu with a special housing, which was especially designed for the
operation in the FlowCell (Art.No.: 32SX03X10). Together with the ow cell a panel is available on which the
nanoFlu and the ow cell can be easily mounted.
1. Follow the instructions below to install the nanoFlu in the ow cell:
2. Preparation of the ow cell:
• Mount the ow cell to the panel using the mounting kit
• Mount ttings on the ow cell
• Install drain
3. Remove the pressure ring from the FlowCell. It can be easily removed by hand. Make sure that the 36x2.5
NBR O-ring is not lost. Then put it onto the front of the nanoFlu.
4. Now bring the pressure ring onto the nanoFlu from the cable/plug side.
5. Insert the nanoFlu into the ow cell, making sure that the O-ring does not slip into the FlowCell.
6. Tighten the screw connection (without tools).
7. Start ow.
Hoses with a diameter of 8 mm (6 mm inner diameter) are required.
NOTICE
