TriBox3 // Advanced Use

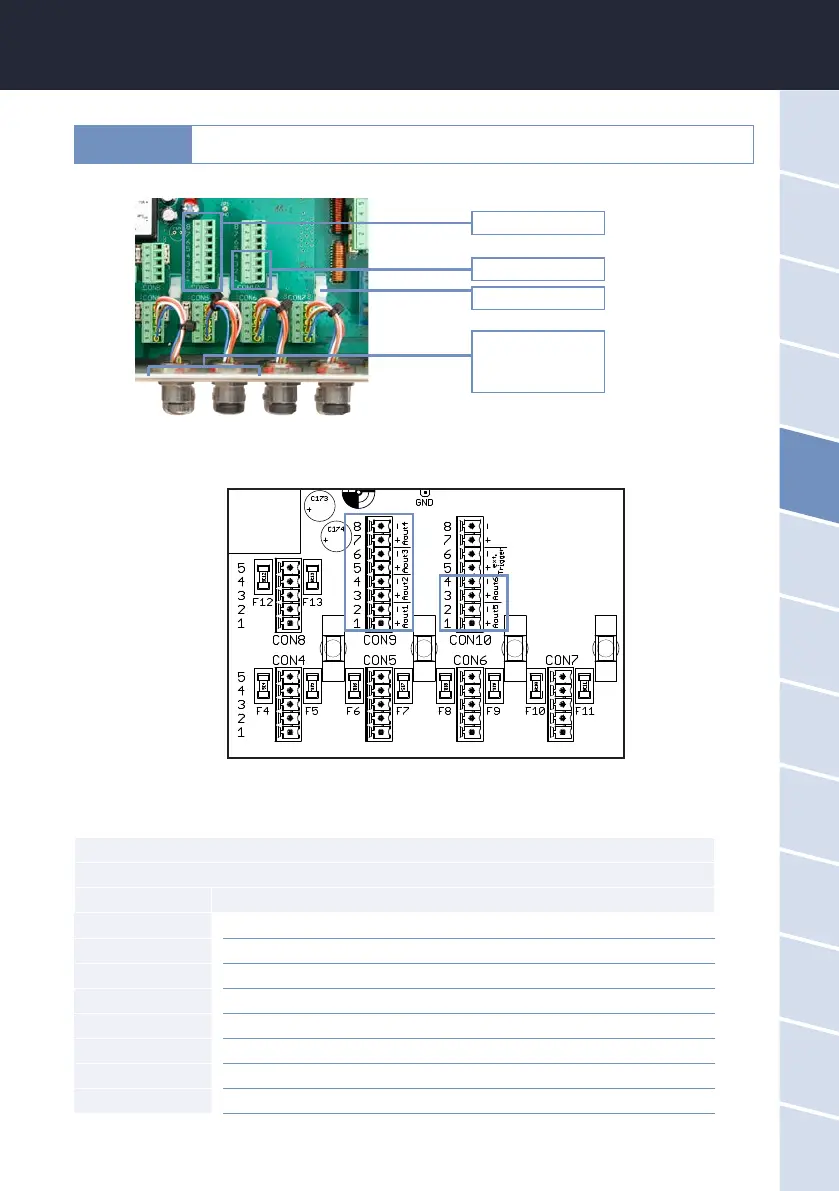

Analog outputs 1-4
Analog outputs 5-6
Cable bushing for
the analog outputs
4. Connect the control cable to the plug marked in the above illustration.
The following tables describe the contact assignment.
CON9 connector
Analog outputs 1 - 4
Pin Assignment
1 Analog output 1 (plus)
2 Analog output 1 (minus, GND)
3 Analog output 2 (plus)
4 Analog output 2 (minus, GND)
5 Analog output 3 (plus)
6 Analog output 3 (minus, GND)
7 Analog output 4 (plus)
8 Analog output 4 (minus, GND)
Cable-tie holder
25.02.2015 16:53:58 f=0.87 Q:\Entwicklung\B Aktive
Projekte\P13-003 TriBox3\Elektronik\TD811502_Power
SupplyBoard_20150225\TD811502_PowerSupplyBoard.brd
Always use wire end ferrules for exible lines. The cable bushing is designed for a
sheath diameter of 3.5 mm to 7 mm.
NOTICE
