Tripp Lite NetCommander B070-016-19-IP2 User Manual

10
1. Product Overview
To set the IP address via the Web Configuration Interface:
Notes:

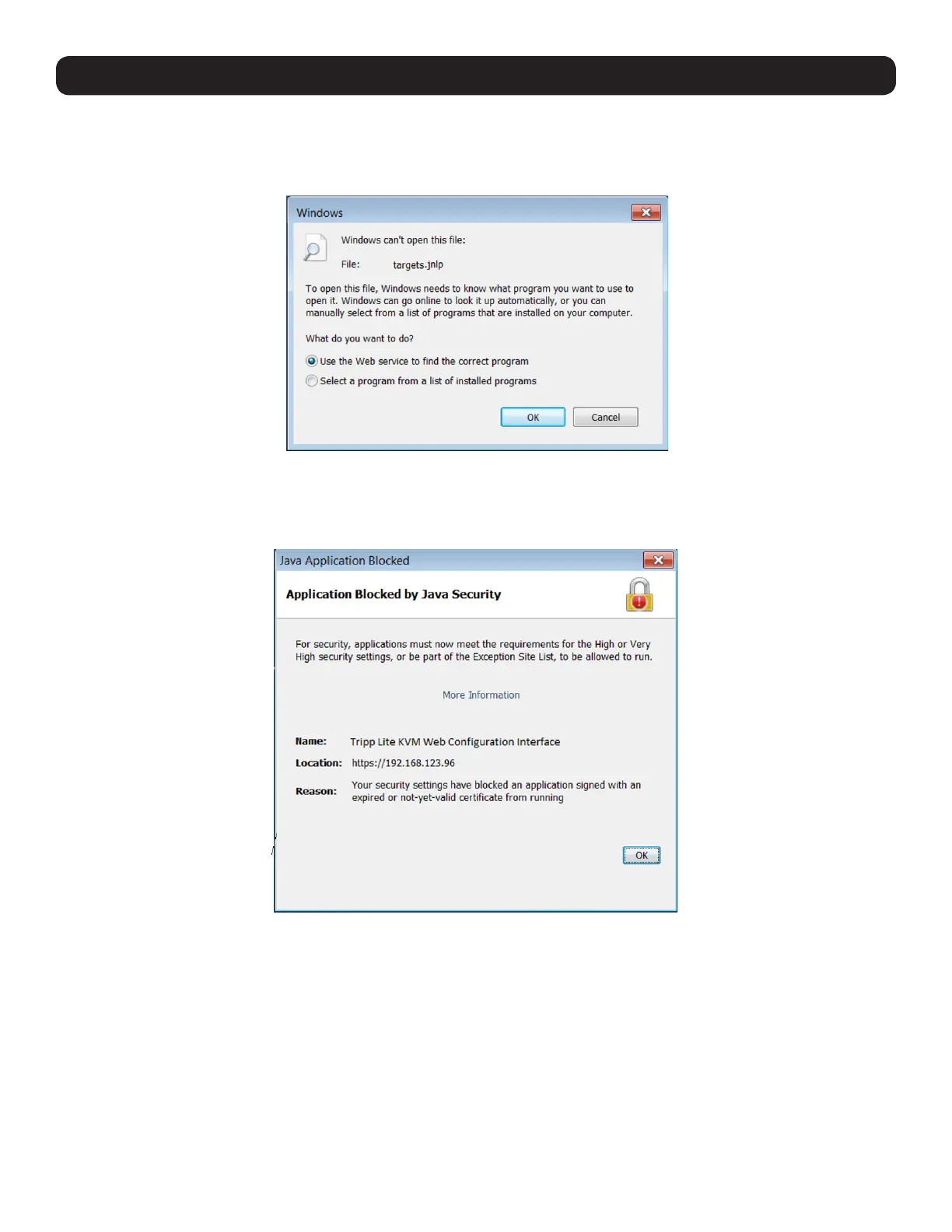

• Before logging on the first time, verify the latest Java version (1.8 or 1.9) is installed on your computer. If the Java Runtime Environment is not installed on
the client PC, a popup window similar to the one below will likely appear.
To resolve this issue, install a supported version of Java (1.8 or 1.9).
• Once a supported JRE has been installed, restart the browser and retry accessing the KVM Web Configuration Interface.
• The installed version of Java may require the KVM Web Configuration Interface be added to an exception list. In such cases, upon logging into the KVM
application, a popup window similar to the one below will appear.

Tripp Lite NetCommander B070-016-19-IP2 Specifications

General

Display diagonal	19 \
Display resolution	1280 x 1024 pixels
On Screen Display (OSD)	Yes
Product color	Black
Country of origin	Taiwan
Security algorithms	128-bit AES, 802.1x RADIUS, HTTPS
Height (in Rack Units)	1
KVM switch ports quantity	16
Operating temperature (T-T)	-4 - 140 °F
Sustainability certificates	RoHS
Certification	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Input current	1.2/0.7 A
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Interface	PS/2; USB; VGA
Storage temperature (T-T)	-20 - 60 °C
Package depth	891.5 mm
Package width	591.8 mm
Package height	149.9 mm
Package weight	19780 g
Master (outer) case width	595.1 mm
Master (outer) case height	150.1 mm
Master (outer) case length	833.9 mm
Master (outer) case weight	17960 g
Quantity per master (outer) case	1 pc(s)

Weight and Dimensions

Depth	692.4 mm
Width	477.3 mm
Height	43.4 mm
Weight	12910 g
