Tripp Lite NetCommander B070-016-19-IP2 User Manual

11

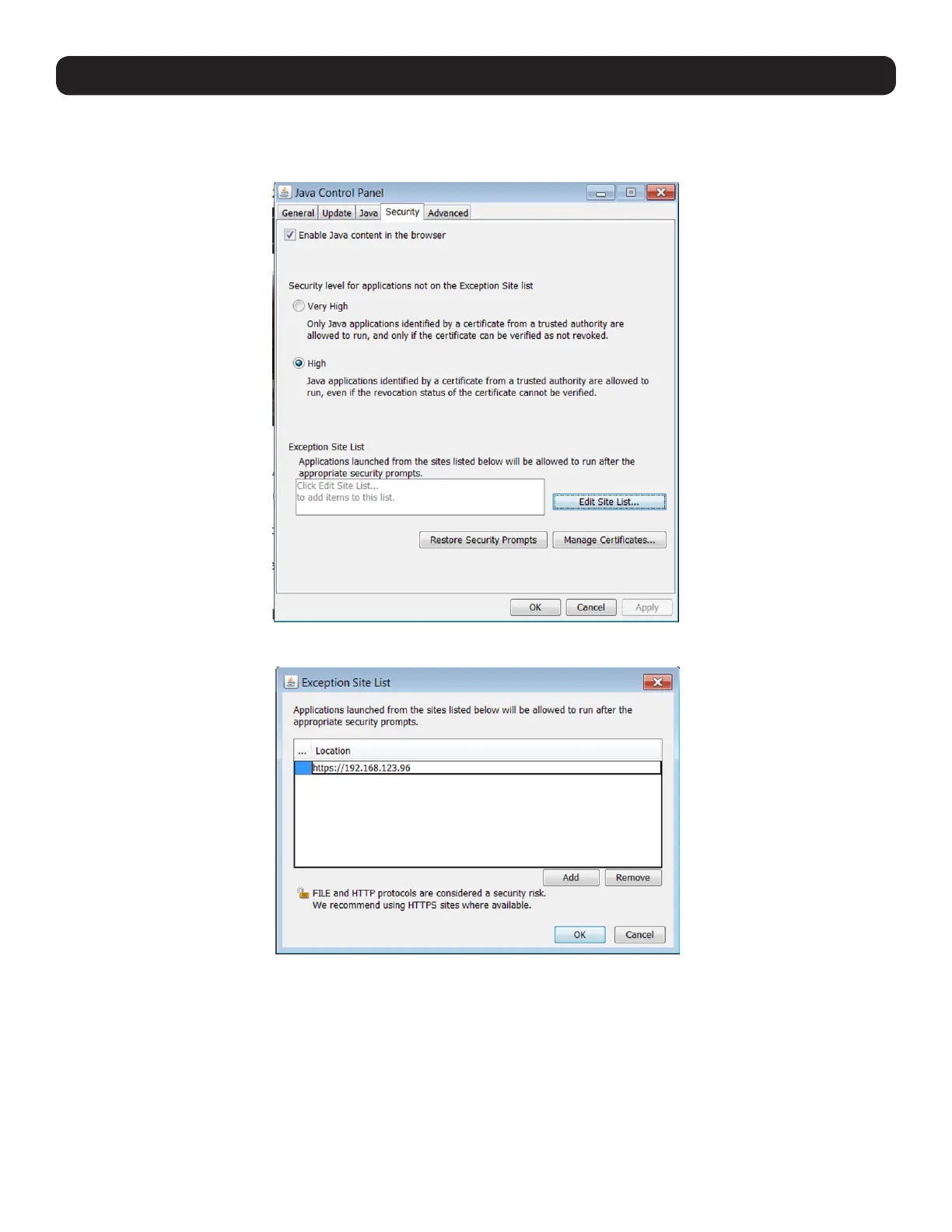

Resolving this issue will require performing the following steps for each KVM:
1. Open the Java Control Panel to the client.
2. Select the Security tab.
1. Product Overview
3. Click the Edit Site List…button. In the panel that opens, click the Add button, then enter the URL of the relevant KVM device.
4. Click the OK buttons to close the windows. Restart the browser and retry accessing the KVM WEB Configuration Interface.
• Only SSL connections are allowed. You must start the IP address with HTTPS, not HTTP.
1. Open your web browser (see section 1.4 Client Computer Compatibility for browser support). Enter in the KVM’s IP address.

Tripp Lite NetCommander B070-016-19-IP2 Specifications

General

Display diagonal	19 \
Display resolution	1280 x 1024 pixels
On Screen Display (OSD)	Yes
Product color	Black
Country of origin	Taiwan
Security algorithms	128-bit AES, 802.1x RADIUS, HTTPS
Height (in Rack Units)	1
KVM switch ports quantity	16
Operating temperature (T-T)	-4 - 140 °F
Sustainability certificates	RoHS
Certification	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Input current	1.2/0.7 A
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Interface	PS/2; USB; VGA
Storage temperature (T-T)	-20 - 60 °C
Package depth	891.5 mm
Package width	591.8 mm
Package height	149.9 mm
Package weight	19780 g
Master (outer) case width	595.1 mm
Master (outer) case height	150.1 mm
Master (outer) case length	833.9 mm
Master (outer) case weight	17960 g
Quantity per master (outer) case	1 pc(s)

Weight and Dimensions

Depth	692.4 mm
Width	477.3 mm
Height	43.4 mm
Weight	12910 g
